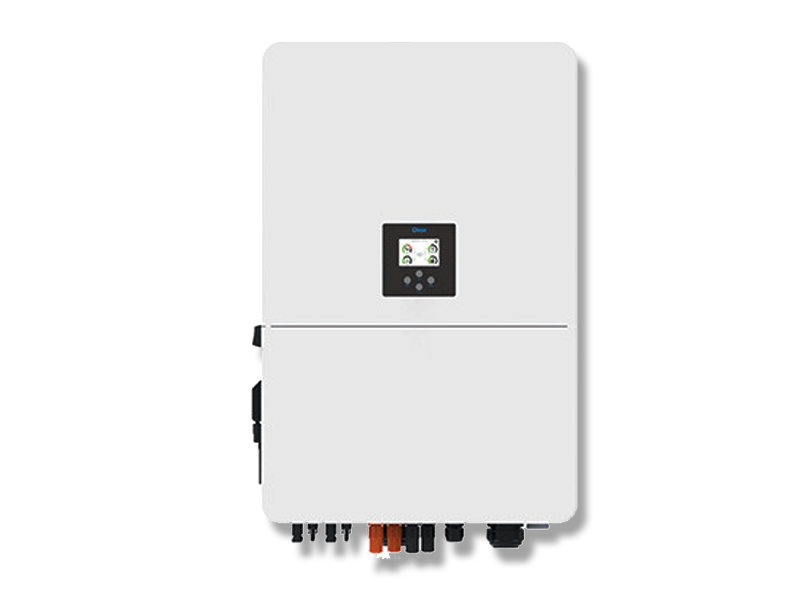

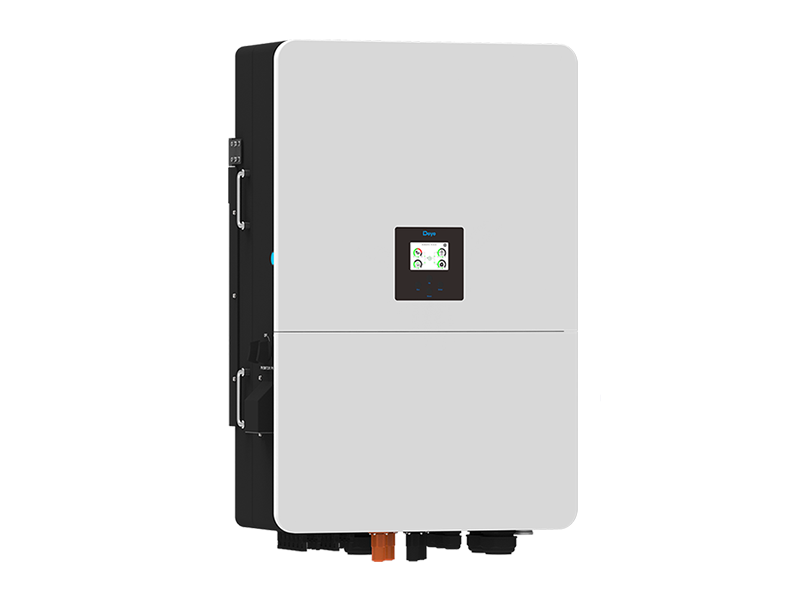

Deye 80kw Hybrid High-Voltage 3-Phase Inverter
Original price was: R159999,00.R148129,00Current price is: R148129,00.
The Deye 80kW 3-Phase Hybrid Inverter is a high-performance solution for commercial and industrial solar systems. Supporting high-voltage lithium batteries (160–1000V), it offers seamless integration for on-grid, off-grid, and backup applications. With 6 MPPTs, 10-unit parallel capability, 100% unbalanced 3-phase output, and smart monitoring, it ensures maximum flexibility, reliability, and efficiency in demanding environments.
In stock
-
Deye 80kW Hybrid High-Voltage 3-Phase Inverter
Deye 80kW Hybrid High-Voltage 3-Phase Inverter - powerful enough to Power your commercial or industrial solar installation with the Deye 80kW Hybrid High voltage 3-Phase Inverter, designed for high-voltage battery integration and advanced energy management. Ideal for grid-tied, off-grid, or backup systems, this inverter ensures reliability, scalability, and maximum performance.
The Deye SUN-80K-SG02HP3-EU-EM6 is engineered for demanding large-scale applications. With high-voltage lithium-ion battery support (160–1000V), advanced AC-coupling for retrofits, and 100% unbalanced 3-phase output, it delivers unmatched flexibility and efficiency for energy independence.
⚡ Key Features
-
🔋 High-Voltage Battery Support (160–1000V)
-
⚡ Max. Charge/Discharge Current: 160A
-
🔁 AC Coupling for Retrofit Applications
-
🔌 Parallel Operation: Up to 10 Units (On-Grid/Off-Grid)
-
📈 Max. PV Input Power: 160,000W
-
☀️ 6 MPPTs with 12 Strings for Optimal Solar Harvesting
-
🌀 Intelligent Air Cooling for durability
-
🔧 Generator Compatible – pre-configured for easy setup
-
🌍 Integrated Monitoring: RS485 / CAN / WiFi / GPRS / 4G (optional)
-
📶 Advanced BMS Communication with Lithium Batteries
-
🏠 100% Unbalanced Load Output per Phase
-
🛡️ IP65 Rated – outdoor ready
-
🇿🇦 NRS097 Certified – suitable for South African grids
📊 Technical Specifications
Specification Details Model SUN-80K-SG02HP3-EU-EM6 Rated Power 80,000W Max. PV Input Power 160,000W MPPTs / Strings 6 MPPTs / 12 Strings Max. PV Input Voltage 1000V Battery Voltage Range 160–1000V (High Voltage Li-ion) Max. Charge/Discharge Current 160A Grid Voltage / Frequency 230/400V (3-phase) / 50Hz or 60Hz Max AC Output Current 133.4A Efficiency 97.6% (Max), 97% (Euro), MPPT >99% Communication Ports RS485 / RS232 / CAN / WiFi / 4G (Optional) Operating Temperature -40°C to +60°C (Derating >45°C) Protection DC Reverse, Overcurrent, Arc Fault, Islanding Dimensions (W × H × D) 606 × 927 × 314 mm Weight 97.5 kg Cooling Intelligent Air Cooling Ingress Protection IP65 Certifications IEC, EN, CE, NRS097, VDE, G99, RD 140 Warranty 5 / 10 Years (depending on installation site)
📦 What’s Included
-
1 × Deye 80kW Hybrid 3-Phase Inverter
-
User Manual & Quick Start Guide
-
Mounting Accessories
-
Warranty Card
🌍 Ideal For
-
Commercial & Industrial Installations
-
Large-Scale Backup Power Systems
-
Off-Grid or Hybrid Solar Systems
-
Agricultural & Utility Applications
