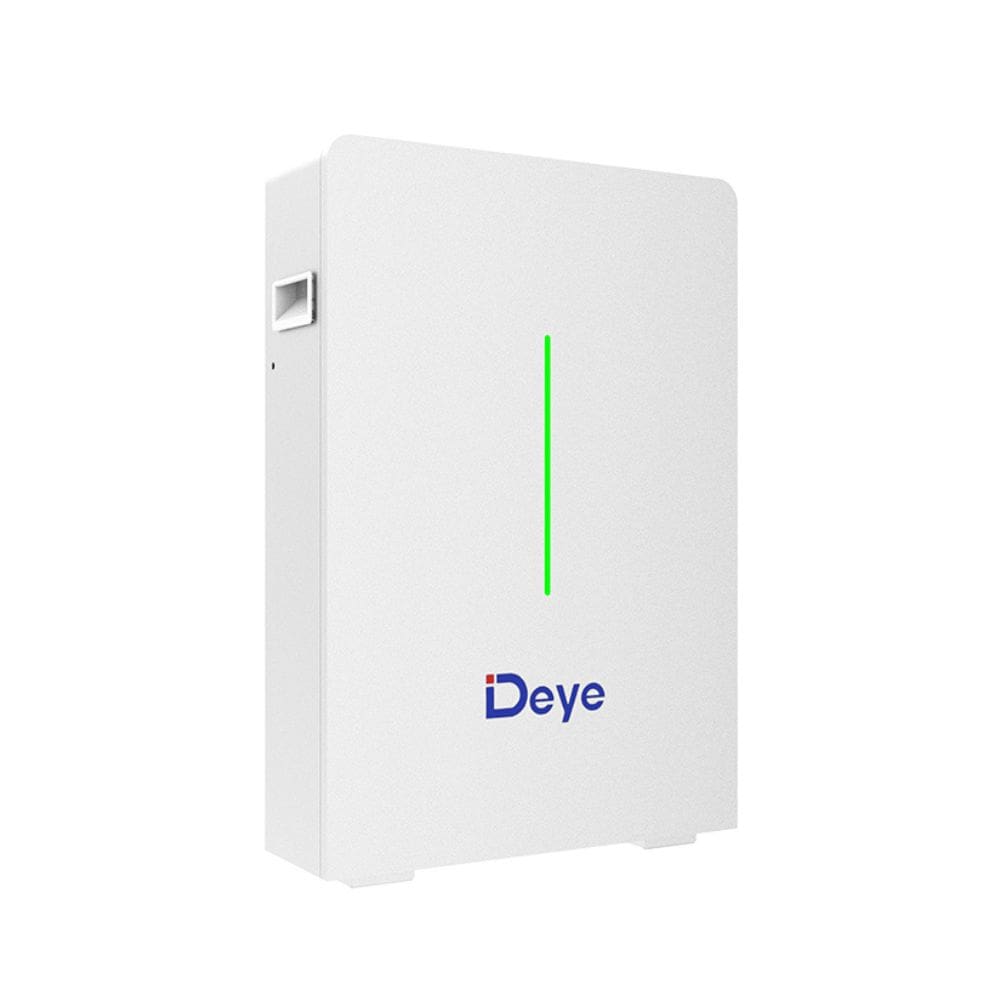

Deye: LV Battery Lithium Ion Low Voltage 10.64Kwh 51.2V 208Ah

Deye: LV Battery Lithium Ion Low Voltage 10.64kWh 51.2V 208Ah

Product Description
The Deye RW-G10.6 is a cutting-edge battery storage solution designed for residential applications, combining flexibility, reliability, and efficiency in energy management. This model is specifically engineered to meet demanding energy requirements while ensuring user safety and convenience.

Battery Chemistry: Utilizes advanced LiFePO4 (Lithium Iron Phosphate) technology, known for its longevity and safety.

Capacity and Output: With a maximum capacity of 10.64 kWh and a usable energy output of 9.58 kWh, it supports extensive energy needs for residential settings. The unit can be configured to support up to 32 batteries in parallel, achieving a substantial total of 340 kWh.

Performance:

• Charge/Discharge Current: Supports a maximum continuous charge current of 200 A and a peak discharge current of 240 A.

• Temperature Range: Operates efficiently across a wide temperature range, charging from 0℃ to 55℃ and discharging from -20℃ to 55℃.

Durability and Design: Constructed for easy installation, the RW-G10.6 is designed for wall or floor mounting and features an IP20 rating. It is compact with dimensions of 600 × 750 × 200 mm and weighs approximately 96 kg.

Safety and Monitoring:

• Built-in Circuit Breaker: Enhances safety by preventing overcurrent situations, essential for residential use.

• Intelligent Battery Management System (BMS): Monitors and optimizes performance while providing features like automatic networking and remote firmware upgrades.

Eco-Friendly: Made from non-toxic materials, ensuring it is pollution-free and safe for the environment.

Maintenance and Operation:

• User-Friendly Functions: Features simple operation modes, including over-discharge direct recharge capability, which simplifies maintenance efforts.

• Energy Management: Perfectly suited for backup power and energy management solutions, making it an excellent choice for residential energy independence.

The Deye RW-G10.6 provides an ideal solution for homeowners seeking reliable, efficient, and scalable energy storage. Whether for backup power or daily energy management, this model represents a robust and eco-friendly choice in residential energy solutions.

Features

• Safe and durable LiFePO4 battery technology

• Nominal capacity of 10.64kWh with 9.58kWh usable

• Supports up to 32 units in parallel for a total of 340kWh

• High performance with 200A charge and 240A discharge capability

• Wide operating temperature range: -20℃ to 55℃ (discharge), 0℃ to 55℃ (charge)

• ≥6000 cycles for long-term reliability

• Built-in circuit breaker for enhanced safety

• Intelligent BMS with automatic networking and remote firmware upgrades

• Wall or floor mounting options with compact design

• Eco-friendly and non-toxic materials

Specifications

• Battery Chemistry: LiFePO4

• Nominal Voltage: 51.2V

• Nominal Energy: 10.64kWh

• Usable Energy: 9.58kWh

• Nominal Capacity: 208Ah

• Max. Charge Current: 200A

• Max. Discharge Current: 240A

• Cycle Life: ≥6000 cycles

• Warranty: 5 years

• Weight: 96kg

• Dimensions (W × H × D): 600 × 750 × 200 mm

• Operating Temperature: Charge: 0℃ ~ 55℃ / Discharge: -20℃ ~ 55℃

• Ingress Protection: IP20

What’s in the Box

• Deye RW-G10.6 LV Lithium Ion Battery x1

• User Manual x1

• Installation Kit x1
