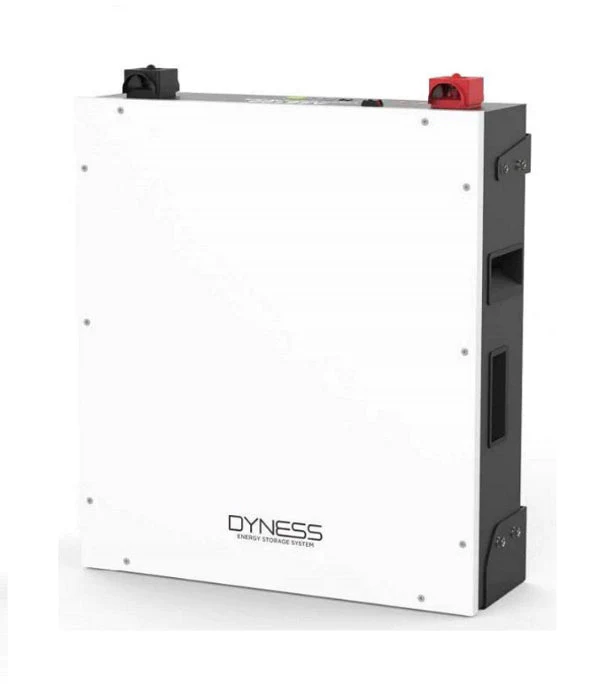

Dyness LiFePO4 5.12KWH 51.2V Battery

Dyness LiFePO4 5.12KWH 51.2V Battery

The Dyness LiFePO4 5.12KWH 51.2V Battery system is a versatile, high-performance energy storage unit designed to meet various power demands. With a standard capacity of 5.12kWh and a nominal voltage of 51.2V, the BX51100 can be connected in parallel with up to 40 units, providing scalable and long-lasting energy solutions for homes, businesses, and off-grid applications.

Built to operate efficiently in high temperatures and limited installation spaces, this battery system offers superior safety and longevity. The integrated Battery Management System (BMS) ensures optimal charging, discharging, and cell balancing, protecting the battery from overcharge, over-discharge, over-current, and temperature abnormalities. With low self-discharge and no memory effect, the BX51100 is ideal for reliable and efficient energy storage.

Key Features

• Modular 5.12kWh LiFePO4 battery unit, scalable up to 40 modules in parallel

• Robust Battery Management System with advanced safety protections

• Environmentally friendly and certified (ROHS, SGS) non-toxic materials

• Wide operating temperature range (-20°C to 55°C) for reliable performance

• Self-ventilating design reduces noise and maintains cooling

• Long shelf life with low self-discharge, up to 10 months between charges

• Flexible mounting options including wall mount and rack mount

• Compact and lightweight design for space-saving installation

Technical Specifications

• Model: BX51100 (1C Upgrade)

• Chemistry: Lithium Iron Phosphate (LiFePO4)

• Capacity: 5.12 kWh (100Ah, 51.2V)

• Cell Voltage: 3.2V per cell, 16 cells in series

• Charge/Discharge Current: Recommended 50A, Max 75A

• Communication: CAN / RS485

• Protection Rating: IP20

• Operating Temperature: Charge 0°C to 55°C, Discharge -20°C to 55°C

• Storage Temperature: -10°C to 35°C

• Parallel Connection: Up to 40 modules

• Dimensions & Weight: (please specify if known)
