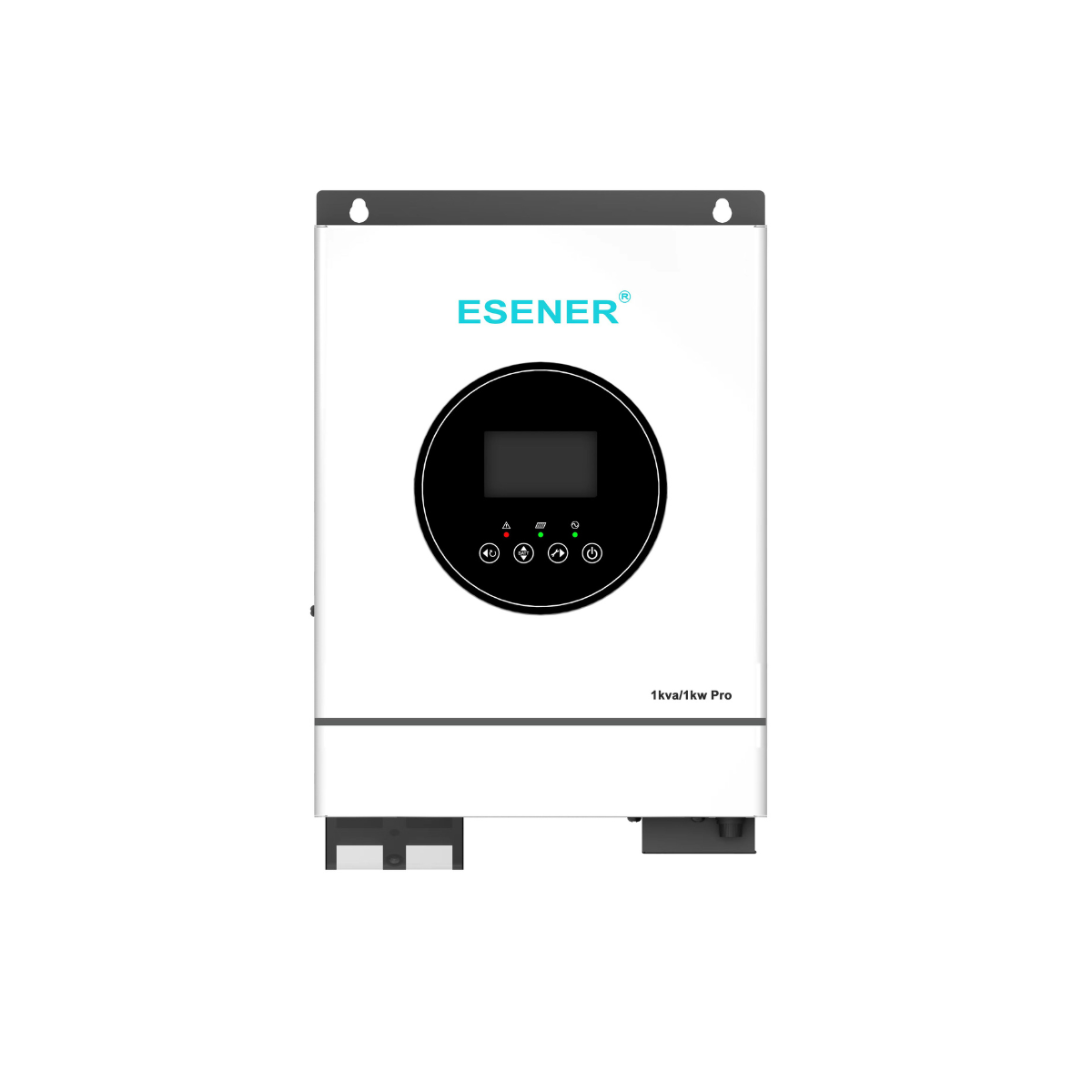

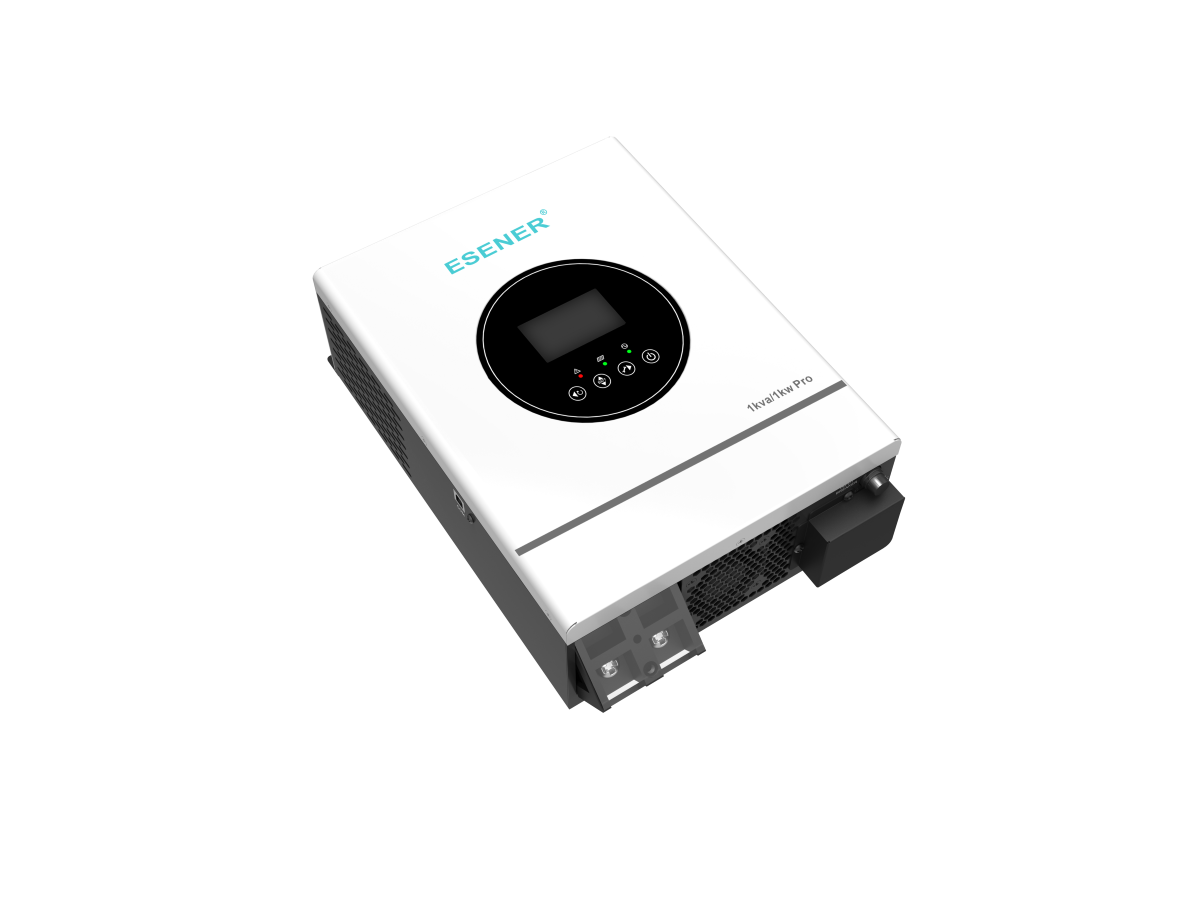

ESENER 1kW Pro Inverter – ESENER 1kW 12V Compact Hybrid Inverter

The ESENER 1kW Pro Inverter is a compact and reliable 12V hybrid inverter designed for small households, backup systems, and load-shedding solutions. With a built-in 45A MPPT charge controller and pure sine wave output, it ensures stable performance for sensitive electronics and daily energy needs.

This inverter supports flexible solar input up to 600W and operates efficiently across a wide MPPT voltage range of 15–75VDC. Its cold start and bypass functions allow operation without a battery, providing adaptable backup scenarios. With smart communication options (USB, CAN, RS485) and an intuitive color LCD screen, system monitoring and integration are effortless.

Key Features:

• 1kW Pure Sine Wave Output – Stable power for all electrical loads

• Integrated 45A MPPT Controller – Supports solar input up to 600W with high efficiency

• Wide MPPT Voltage Range: 15–75VDC for flexible solar panel compatibility

• Smart Color LCD Screen – Intuitive interface for setup and real-time monitoring

• Advanced Safety Protections – Overload, short circuit, and deep discharge protection

• Cold Start & Bypass Function – Operates without a battery for flexible backup

• Comprehensive Communication Options – USB, CAN, RS485 ports for integration and monitoring

Technical Specifications (ES-1KVA/1KW PRO):

Inverter Output:

• Rated Power: 1000VA / 1000W

• Surge Power: 2000VA

• Waveform: Pure Sine Wave

• AC Voltage Regulation (Batt. Mode): 230VAC

• Inverter Efficiency (Peak): 90%–93%

• Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)

AC Input:

• Voltage: 230VAC

• Voltage Range: 170–280VAC (UPS) / 90–280VAC (APL) / 184–253VAC (VDE)

• Frequency Range: 50Hz / 60Hz (Auto sensing)

Battery:

• Normal Voltage: 12VDC

• Floating Charge Voltage: 13.8VDC

• Overcharge Protection: 15VDC

Solar Charger & AC Charger:

• Maximum PV Array Open Circuit Voltage: 105VDC

• MPPT Voltage Range: 15–75VDC

• Maximum PV Array Power: 600W

• Maximum Solar Charge Current: 45A

• Maximum AC Charge Current: 20A

• Maximum Charge Current: 65A

Mechanical Specifications:

• Machine Dimension (WHD): 224 x 337 x 98 mm

• Package Dimension (WHD): 300 x 410 x 178 mm

• Net Weight: 3.6kg

• Gross Weight: 4.3kg

Other:

• Humidity: 5%–95% RH (Non-condensing)

• Operating Temperature: 0°C–50°C

• Storage Temperature: -15°C–60°C

• Communication Interface: USB / WiFi (optional)

• Warranty: 1 year

Certification & Standards:

• CE-EMC + LVD (EN6100-6-3, EN6100-6-1 + EN IEC62109-1, EN IEC62109-2)
