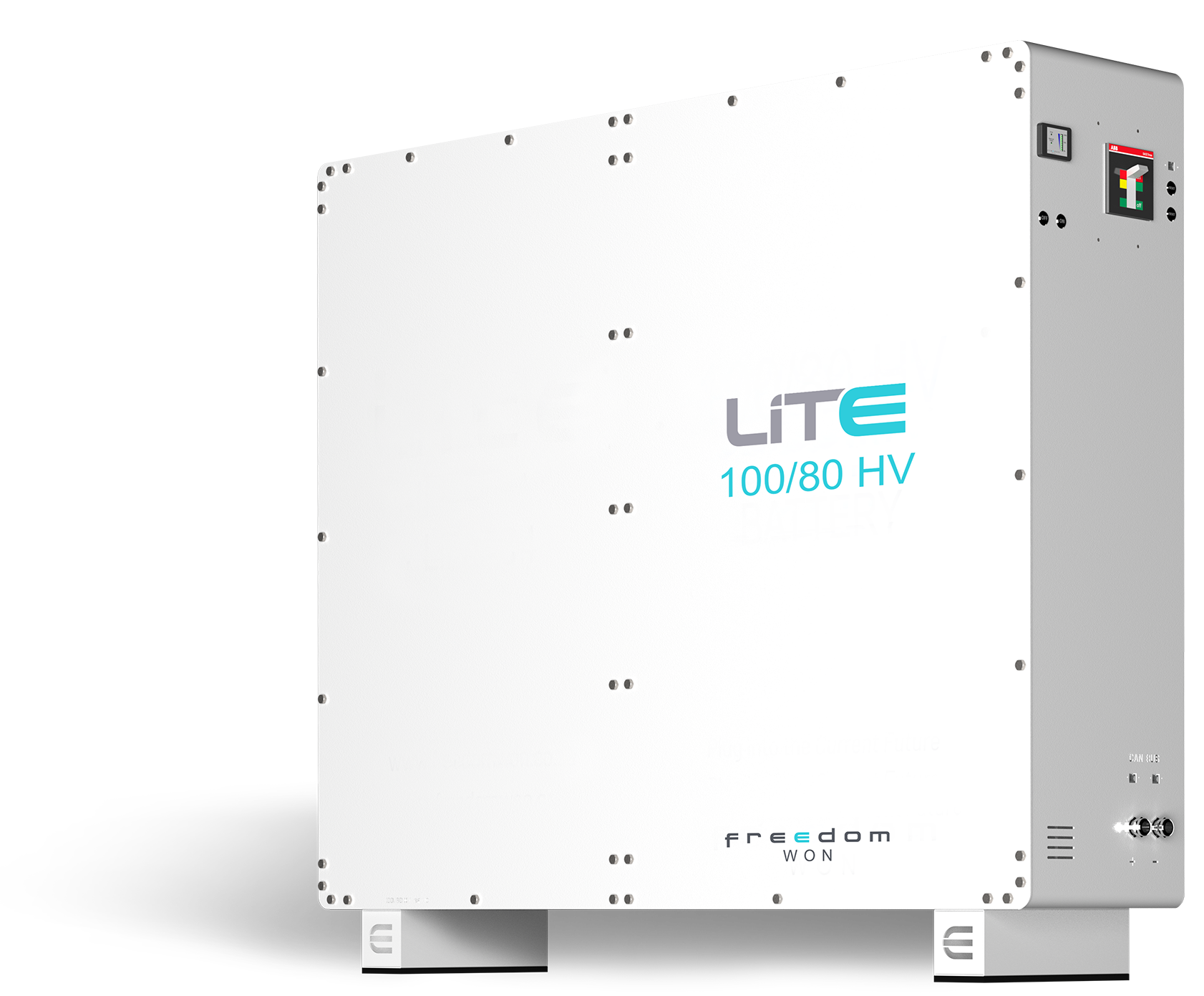

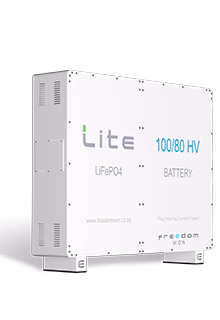

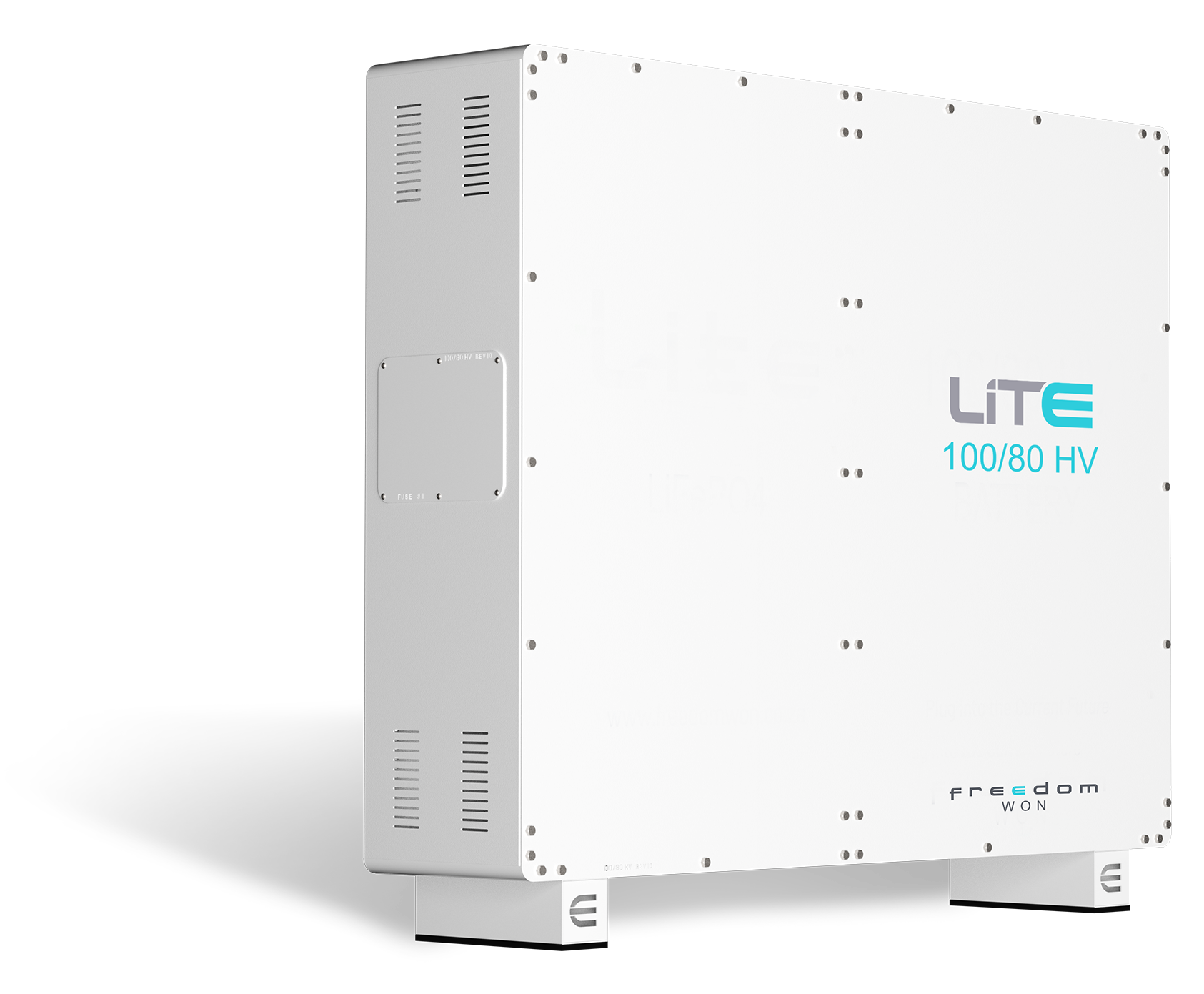

Freedom Lite 100/80 HV Commercial Battery
Original price was: R586500,00.R403589,00Current price is: R403589,00.
High-capacity 100kWh lithium-ion battery made in South Africa, with 1C charge/discharge support, wide inverter compatibility, and a 10-year warranty.
In Stock at Warehouse (6-8 Weeks Lead Time)
Product Features:
- This battery is compatible and communicates with most inverters on the market
- 10-year manufacturer’s warranty
- Supports up to 1C charging and discharging
- Highly reliable , proven and proudly made in South Africa
Weight:1040 kg
Battery Type: Lithium Ion
Nominal Energy:100000 Wh
Depth of discharge: 90.00 %
Voltage: 512 V
Continuous Discharge Rate (Normal Use):112000 W
Maximum Discharge Rate (5 Minutes):117000 W
Surge Discharge Rate (15 Seconds):123000 W
Maximum Charge Rate (5 Minutes):112000 W
Total Energy Capacity [kWh]: 100
Energy, 80% DoD [kWh] 1:80
Energy, 90% DoD [kWh]: 90
Current Capacity [Ah]: 200
Max/Min Operating Voltage [V]: 568/456
Max. Inverter Cap. [kVA]: 120
Total Weight [kg]: 883
Height [mm]: 1 405
Depth [mm]: 365
DC Cables, [no. per electrode] [mm2] 2: 1×95
Round Trip Efficiency: 96-97%
Enclosure: 3mm thick Aluminium, powder coated, tamper proof, indoor use
External Interface: CAN Bus
On-board Management: Full battery management system and internal trip protection
Human Interfaces: On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, USB Plug for Programming and data access with PC, main breaker
Protection: Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Protection for overcurrent, cell under and over voltage, temperature, weak cell detection and other critical events
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Cell Form Factor: Large Format heavy-duty prismatic cells of 200Ah each and 3,2V nominal voltage, fully sealed in aluminium casing with laser welded electrode connection
Battery Cooling: Natural Convection (heat generation is negligible inside the battery)
Suitable Ambient Temp [°C]: 0°C to +35°C
Service life – Cycles: >16 years (>5 500 cycles) expected life at 70% DoD per cycle, >20 years (>7 500 cycles) at 50% DoD
