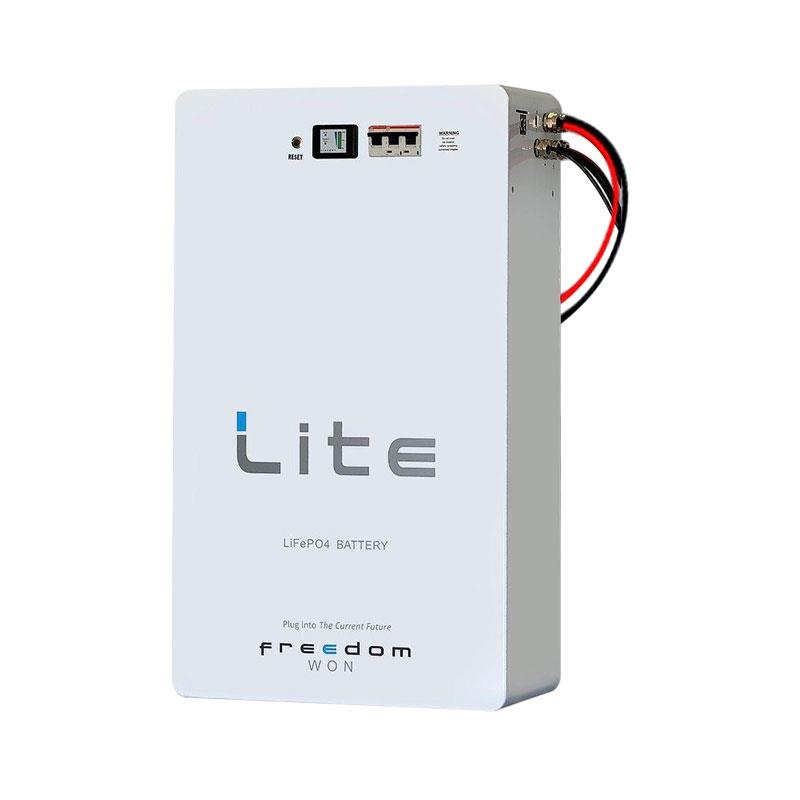

Freedom LiTE 230/184 [HV+] Battery
Original price was: R1610000,00.R900014,00Current price is: R900014,00.
High-performance 230kWh lithium-ion battery with 576V output, supporting 1C charge/discharge rates. Engineered for compatibility with most inverters, it features a 90% depth of discharge, a robust 10-year warranty, and is proudly manufactured in South Africa. Ideal for demanding energy storage applications.
In Stock at Warehouse (6-8 weeks Lead Time)
LiTE Commercial 230/184 HV+
Product Features:
- This battery is compatible and communicates with most inverters on the market
- 10-year manufacturer’s warranty
- Supports up to 1C charging and discharging
- Highly reliable , proven and proudly made in South Africa
Total Energy Capacity [kWh]: 230
Energy, 90% DoD [kWh]: 207
Current Capacity [Ah]: 400
Max/Min Operating Voltage [V]: 639/513
Max. Inverter Cap. [kVA]: 230
Total Weight [kg]: 2 030
Height [mm]: 1 575
Depth [mm]: 370
Round Trip Efficiency: 96-97%
Enclosure: 3mm thick Aluminium, powder coated, tamper proof, indoor use
External Interface: CAN Bus
On-board Management: Full battery management system and internal trip protection
Human Interfaces: On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, USB Plug for Programming and data access with PC, main breaker
Protection: Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Protection for overcurrent, cell under and over voltage, temperature, weak cell detection
and other critical events
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Cell Form Factor: Large Format heavy-duty prismatic cells of 200Ah each and 3,2V nominal voltage, fully sealed in aluminium casing with laser welded electrode connections
Battery Cooling: Natural Convection (heat generation is negligible inside the battery)
Suitable Ambient Temp [°C]: 0°C to +35°C
Service life – Cycles: >16 years (>5 500 cycles) expected life at 70% DoD per cycle, >20 years (>7 500 cycles) at 50% DoD
