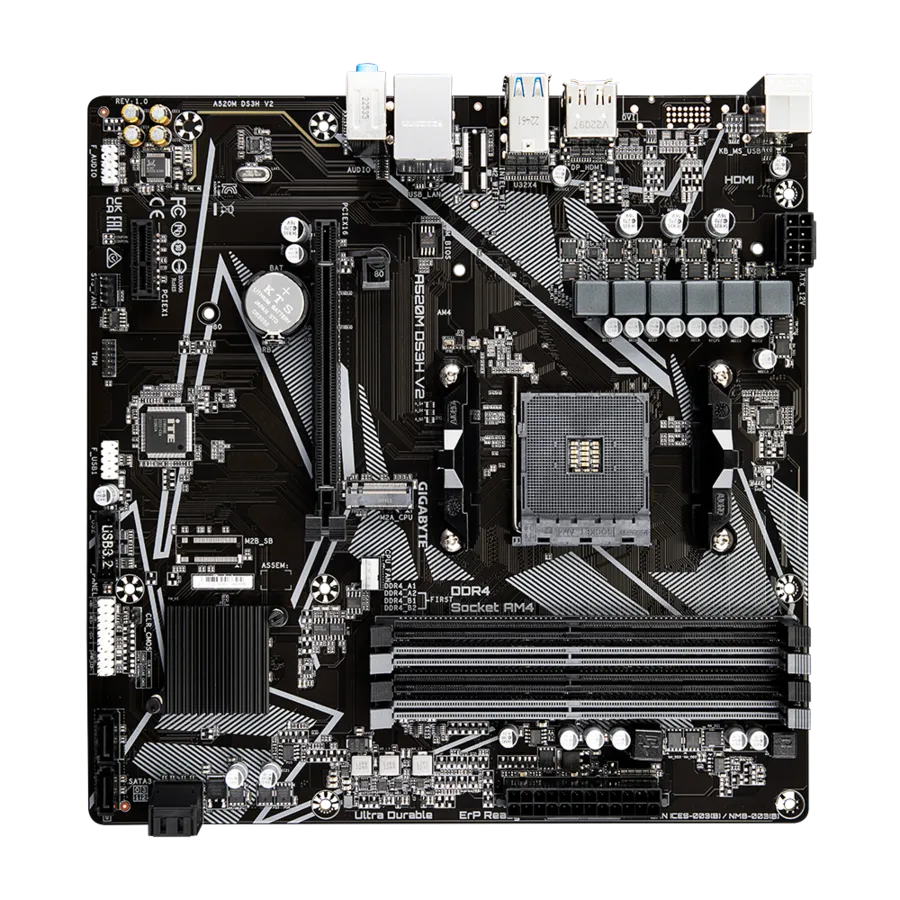

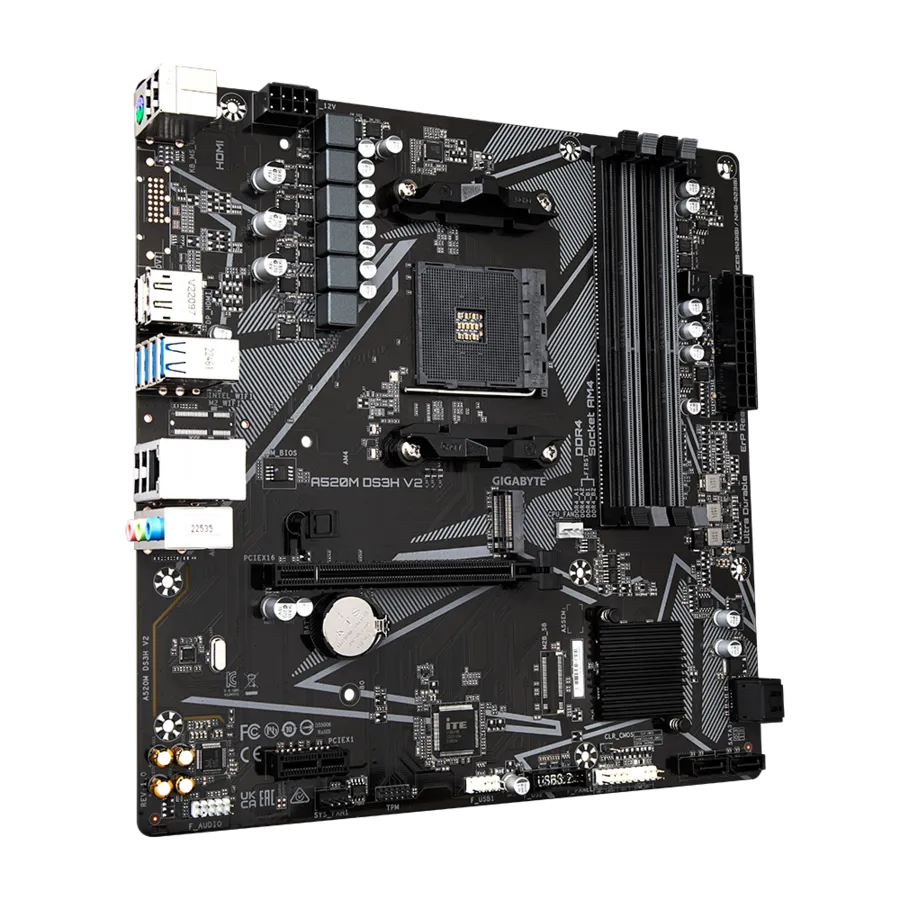

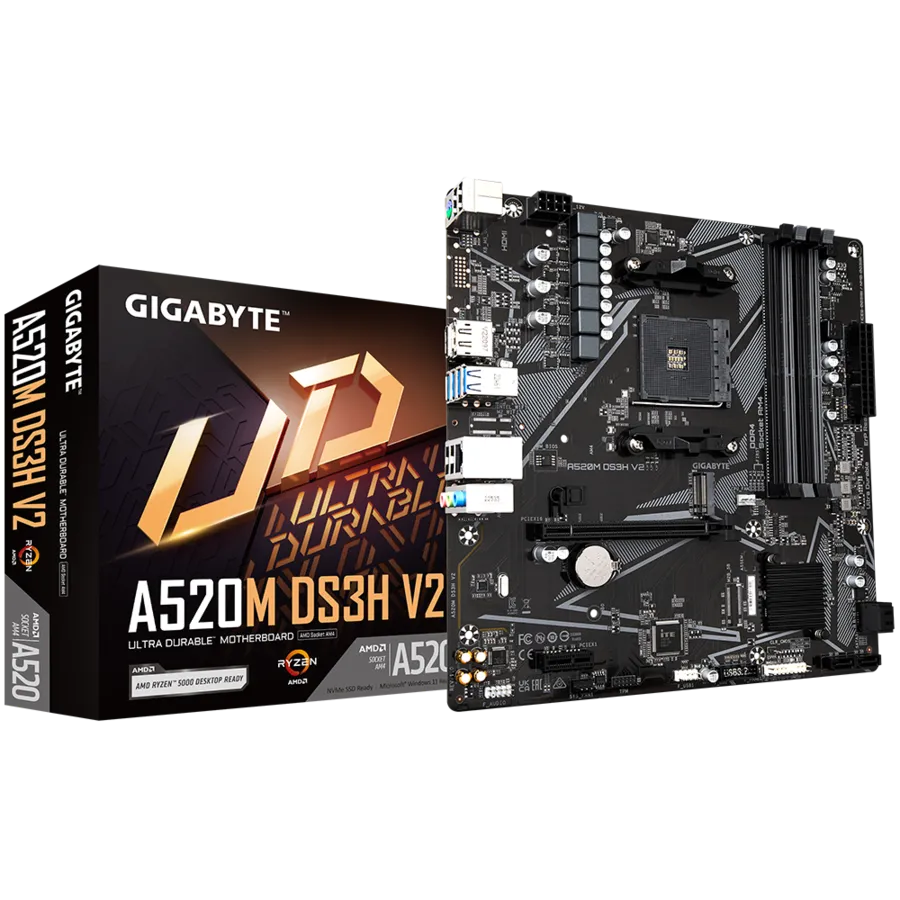

Gigabyte A520M DS3H V2 Motherboard
Original price was: R2089,00.R1749,00Current price is: R1749,00.
đź’» Key Features
This motherboard offers a stable and reliable foundation for a budget-to-mid-range PC build, supporting the latest AMD Ryzen™ 5000 Series and previous generation processors.
-
Processor Support: Compatible with AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series CPUs, including integrated graphics (G-Series) models.
-
Memory: Features 4 DDR4 DIMM slots supporting up to 128 GB of dual-channel memory, with speeds up to 4733 MHz (via XMP/Overclocking).
-
Storage: Includes a fast NVMe PCIe 3.0 M.2 connector and 4 SATA 6Gb/s ports with RAID support.
-
Expansion: A primary PCIe 3.0 x16 slot is available for a dedicated graphics card.
-
Connectivity: Equipped with GbE LAN (Gigabit Ethernet), multiple USB 3.2 Gen 1 and USB 2.0 ports, and DisplayPort 1.4/HDMI 2.1 outputs for CPUs with integrated graphics.
-
Durability: Built with Ultra Durable™ components, a Digital VRM Solution for stable power delivery, and Anti-Sulfur Resistors.
-
Cooling: Smart Fan 5 offers multiple temperature sensors and hybrid fan headers with FAN STOP to maintain optimal system temperatures silently.
In Stock with Supplier
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management

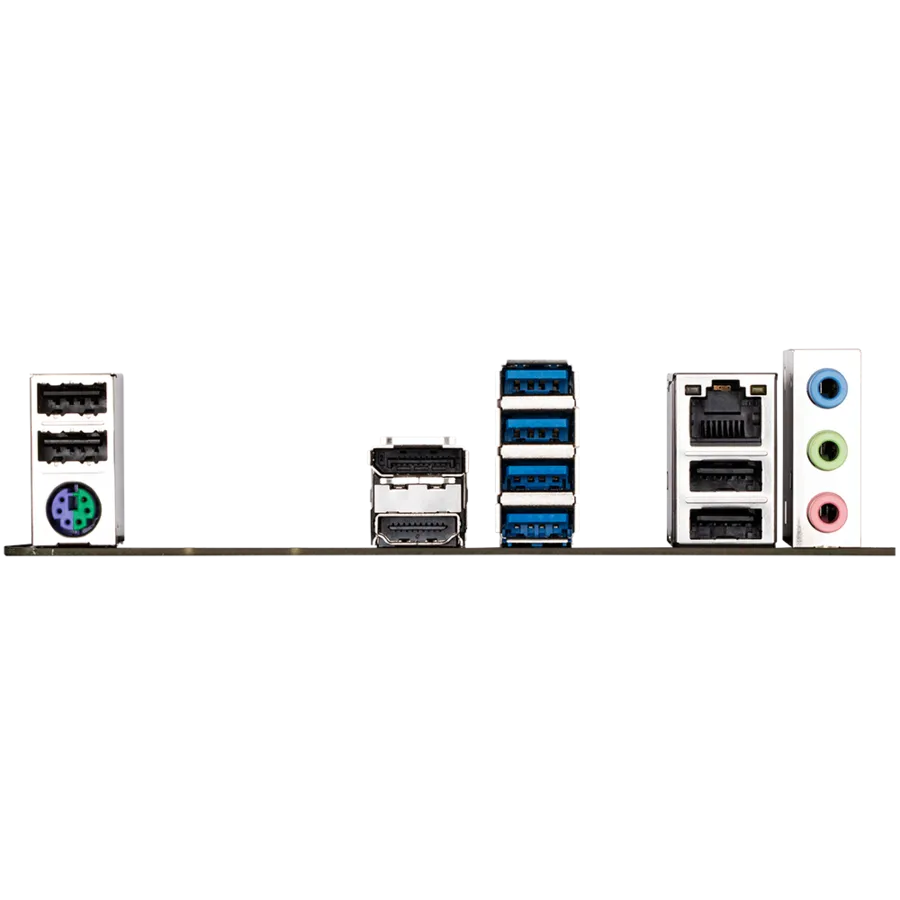

- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Specifications
- CPU: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.)
- Chipset: AMD A520
- Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support up to DDR4 4733 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
- Onboard Graphics - Integrated Graphics processors:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
- LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
- Expansion Slots:
- Â CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0
- Storage Interface:
- CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
- Chipset: 4 x SATA 6Gb/s connectors (Support for RAID 0, RAID 1, and RAID 10)
- USB:
- CPU: 4 x USB 3.2 Gen 1 ports on the back panel
- Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Form Factor: Micro ATX; 24.4cm x 24.4cm
