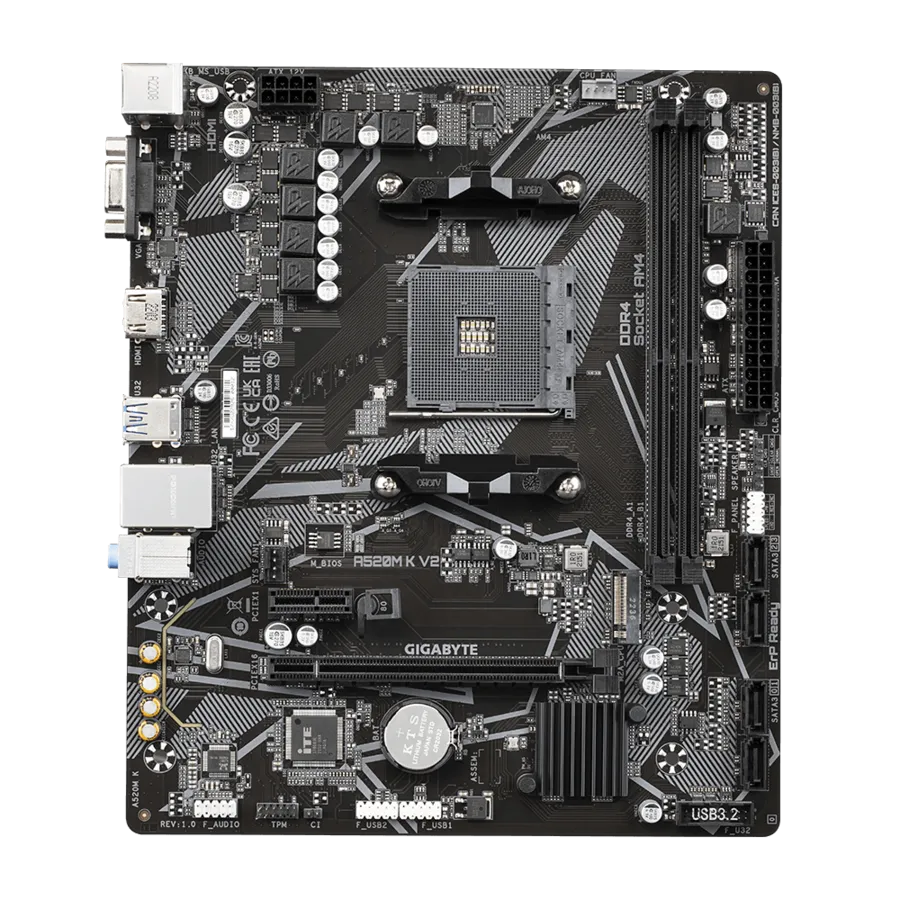

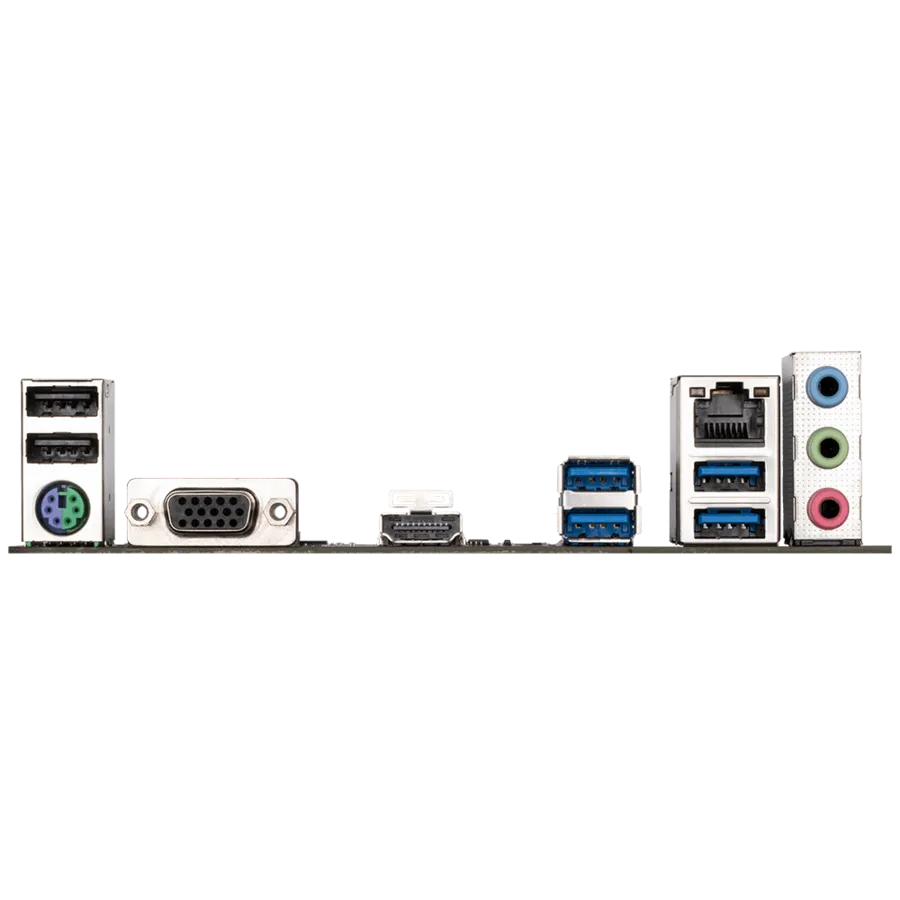

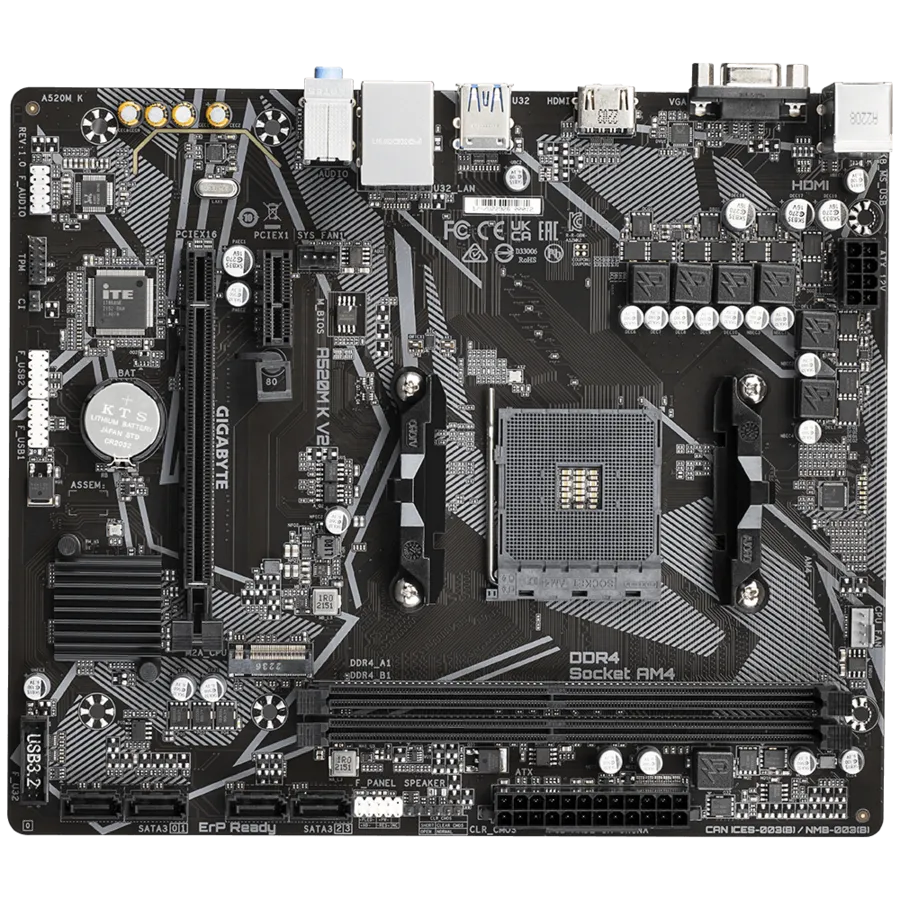

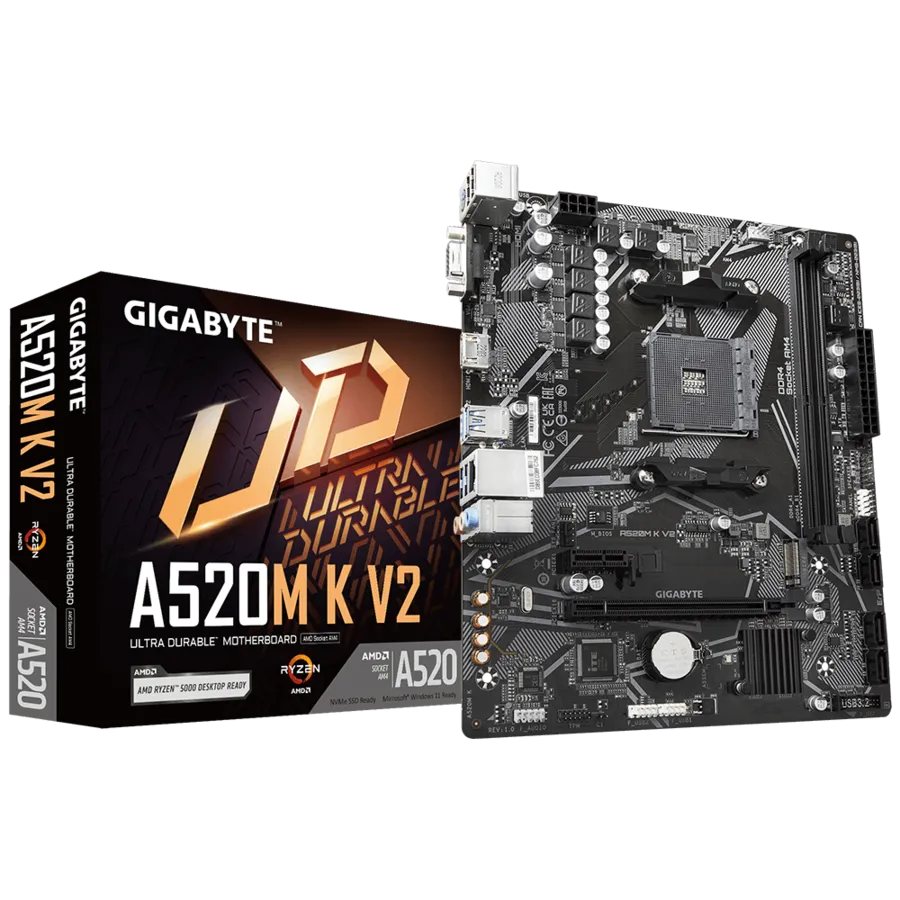

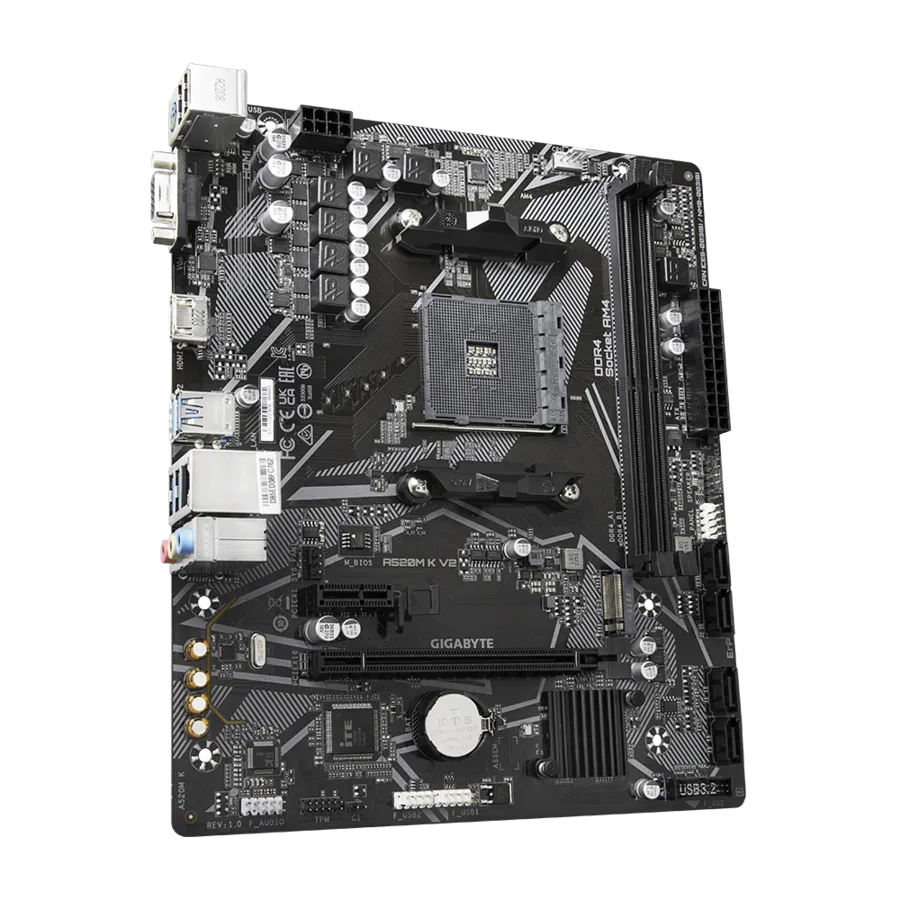

Gigabyte A520M K V2 Motherboard
In stock at warehouse (2-3 days Processing)
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GbE LAN with Bandwidth Management
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and D-sub for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
R1,319.00 R1,529.00 incl Vat
In stock at warehouse (2-3 days Processing)
CompareSpecifications
- CPU: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors (Please refer “CPU Support List” for more information.)
- Chipset: AMD A520
- Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support up to DDR4 4733 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
- Onboard Graphics – Integrated Graphics processors:
- 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
- LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
- Expansion Slots:
- CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0
- Storage Interface:
- CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
- Chipset: 4 x SATA 6Gb/s connectors (Support for RAID 0, RAID 1, and RAID 10)
- USB:
- CPU: 4 x USB 3.2 Gen 1 ports on the back panel
- Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Form Factor: Micro ATX; 24.4cm x 24.4cm
| Brand | AMD, Gigabyte |
|---|---|
| Colour | Black |
| Socket Design | AM4 |
| Form Factor | M-ATX |
| Warranty | 36 Months |
