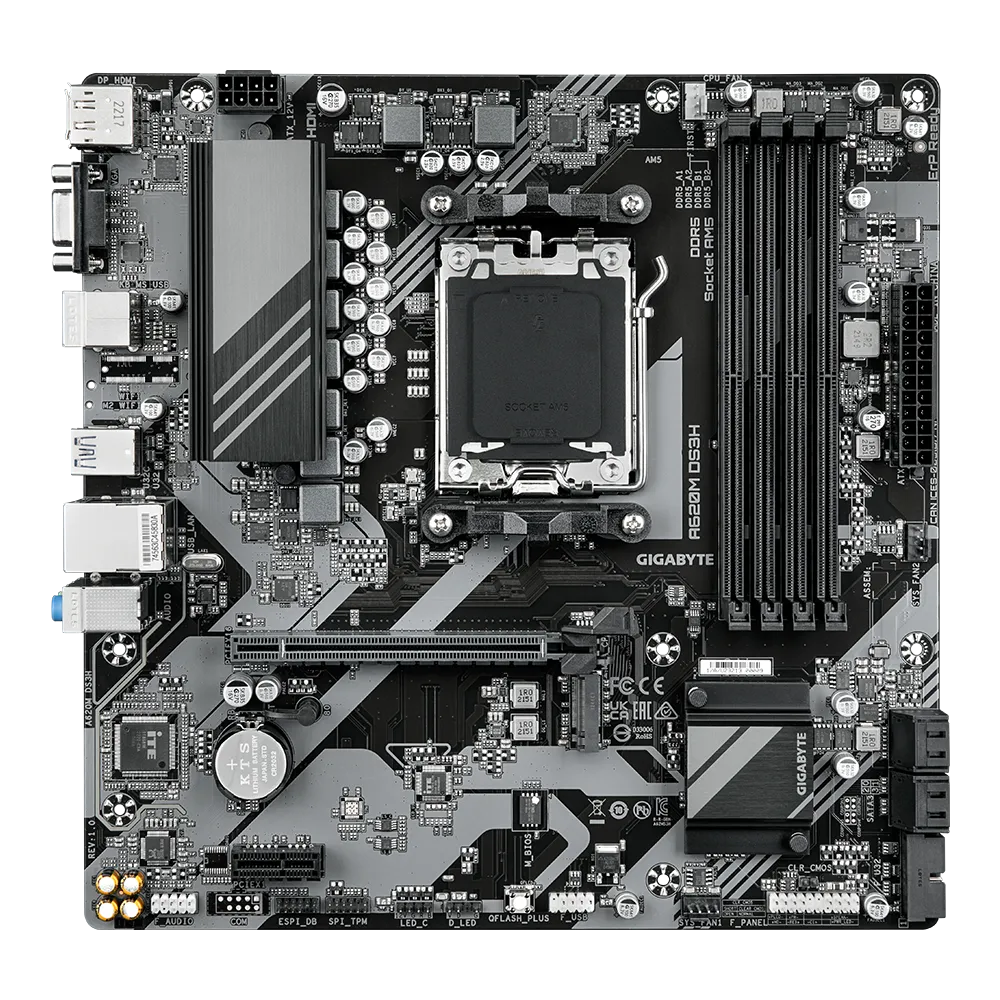

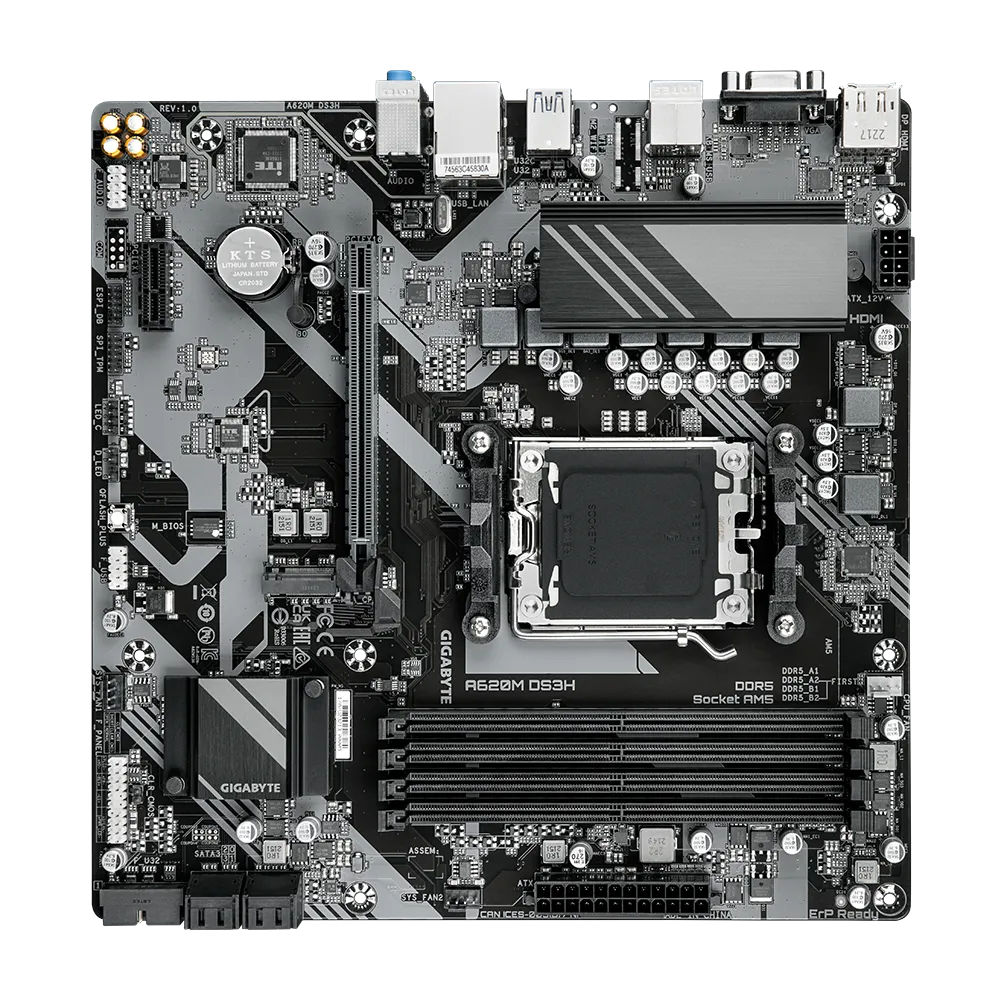

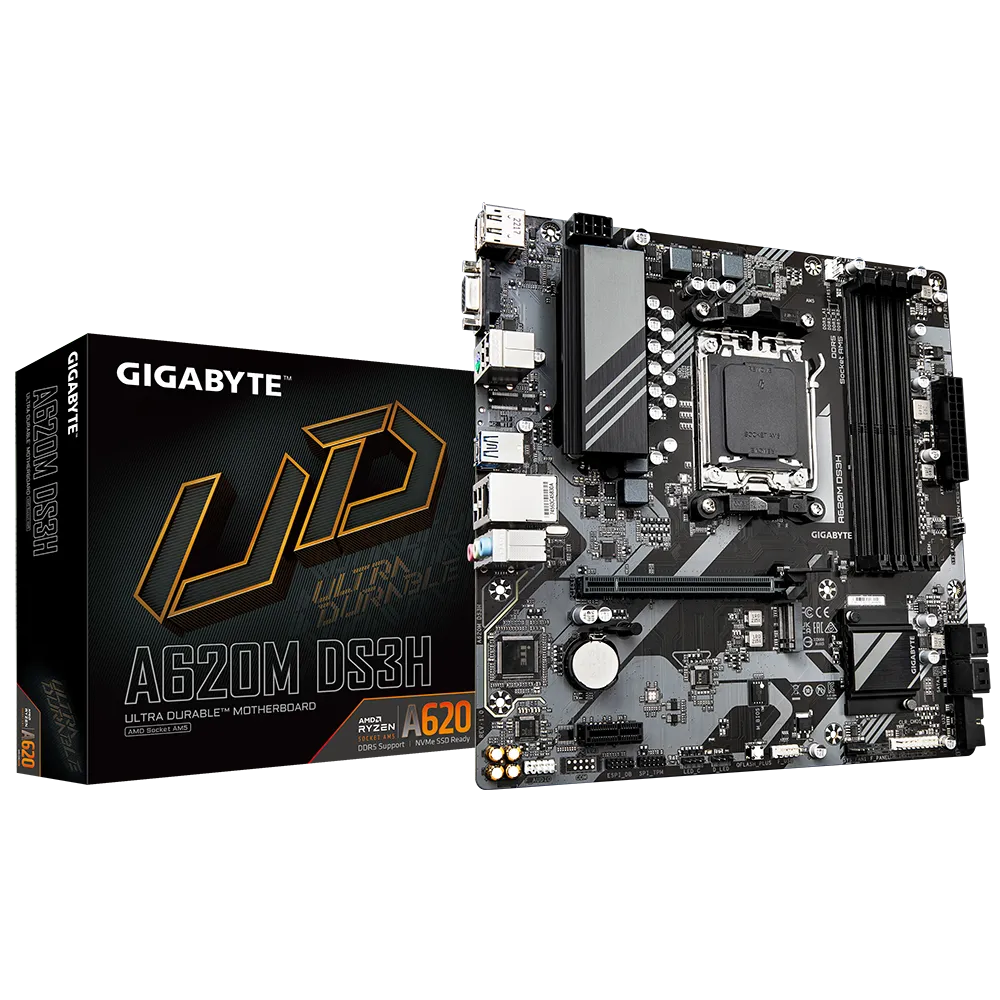

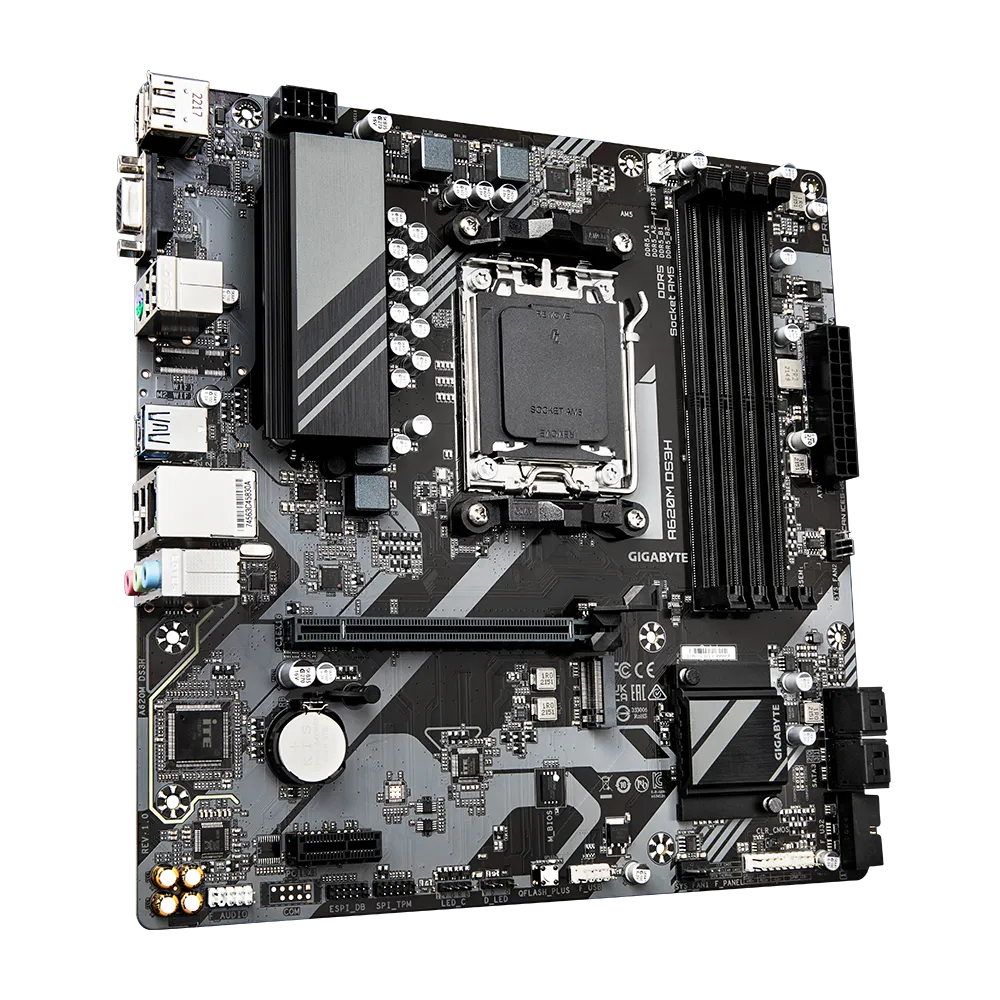

Gigabyte A620M DS3H Motherboard

PCIe 4.0 Hardware Design

GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Specifications

• CPU: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer "CPU Support List" for more information.)
• Chipset: AMD A620
• Memory
  • Support for up to DDR5 6400(OC) MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics - Integrated Graphics Processor:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz ( Support for DisplayPort 1.4 version.)
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports.)
  • Graphics specifications may vary depending on CPU support.
  • Support for up to 3 displays at the same time
• Audio: Realtek HD Audio 2/4/5.1/7.1-channel CODEC (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots
  • CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
  • CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
  • Chipset: 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices

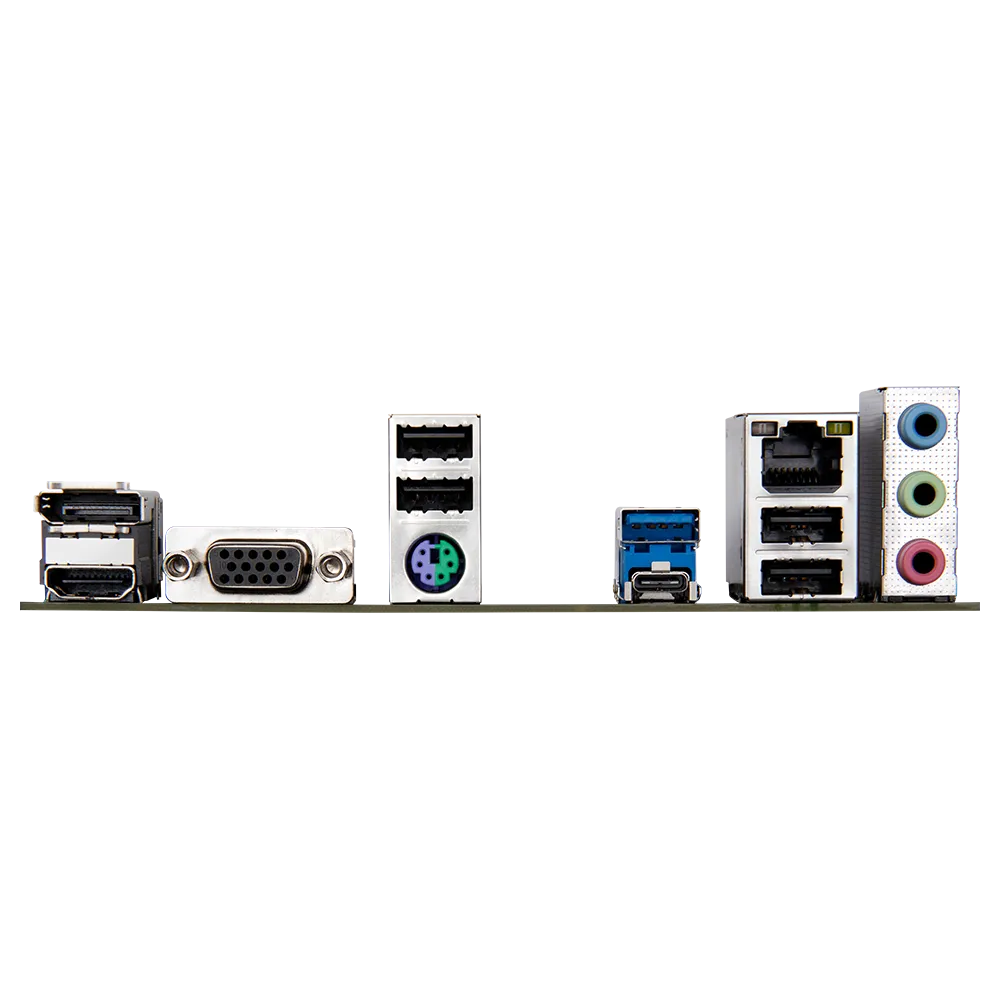

• USB
  • CPU:
    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    • 1 x USB 3.2 Gen 1 port on the back panel
    • 1 x USB 2.0/1.1 port on the back panel
  • Chipset:
    • 2 x USB 3.2 Gen 1 ports available through the internal USB header
    • 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB headers)
• Form Factor: Micro ATX, 24.4 x 24.4 cm
• Warranty: 3 Years
