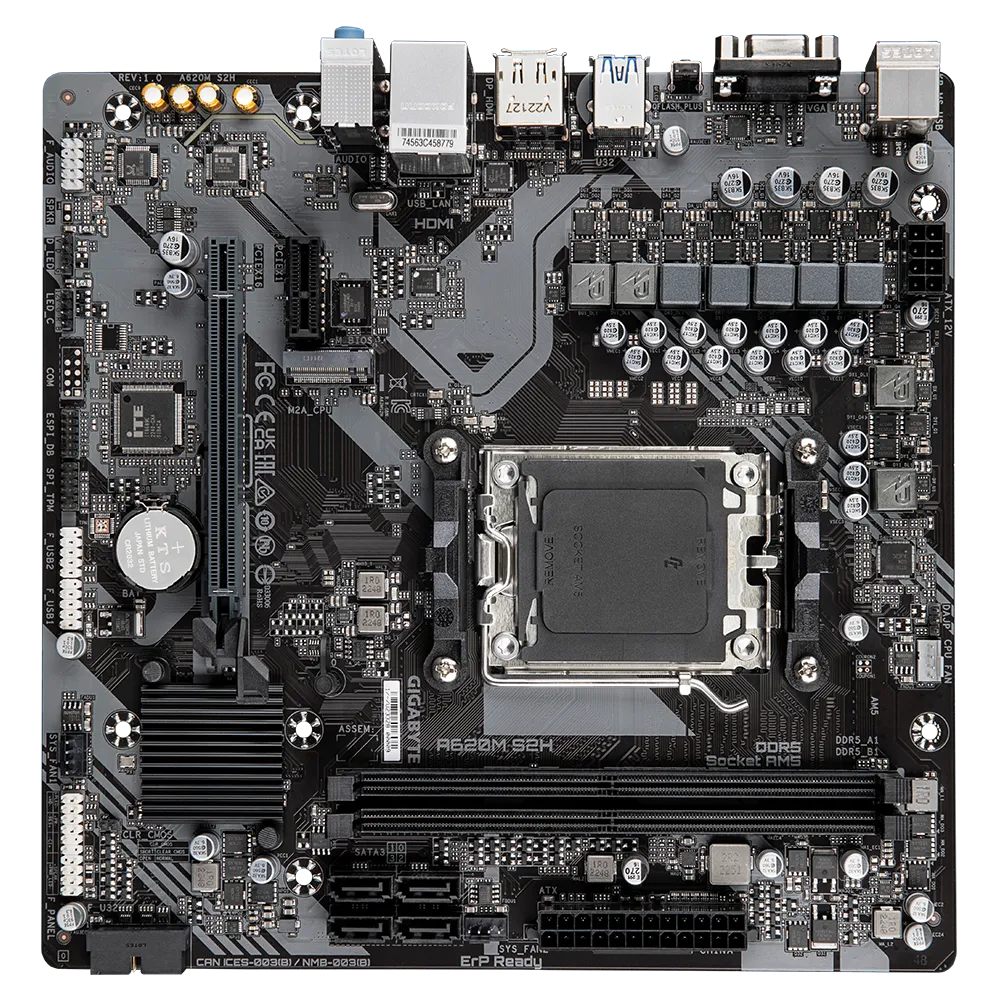

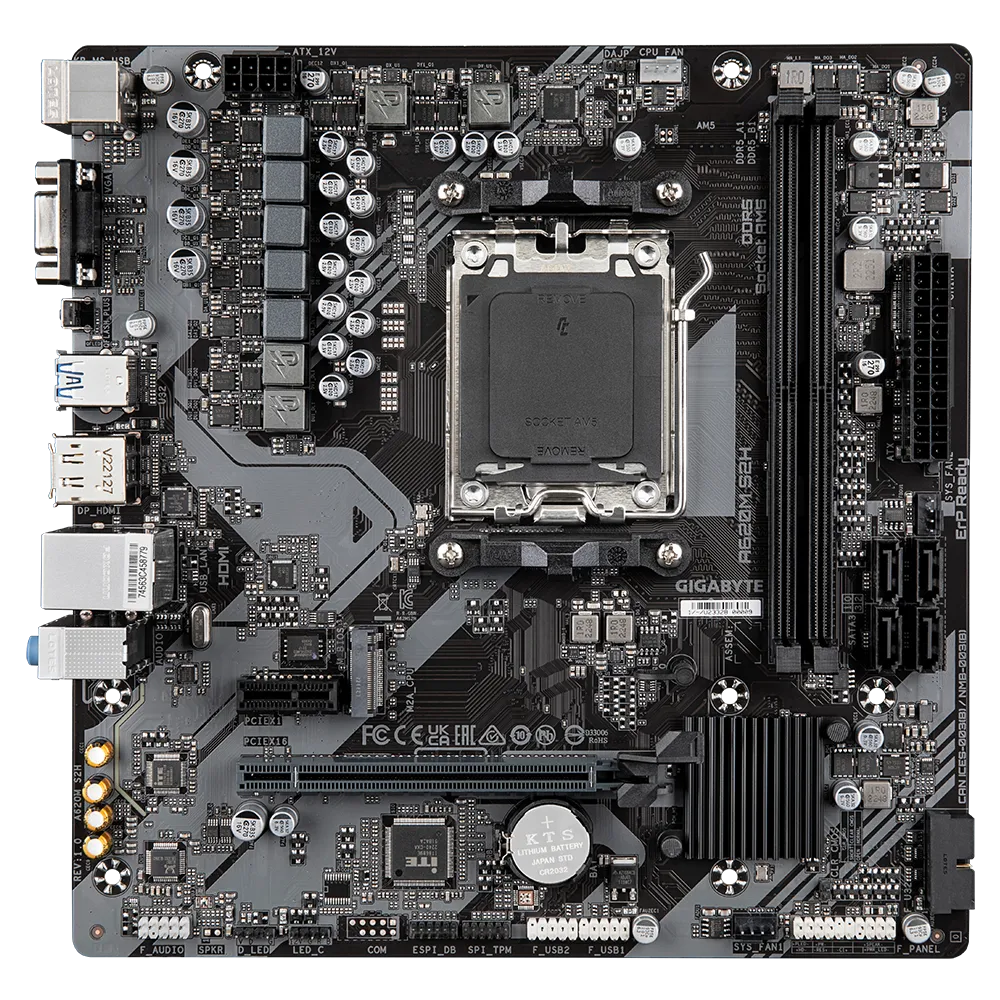

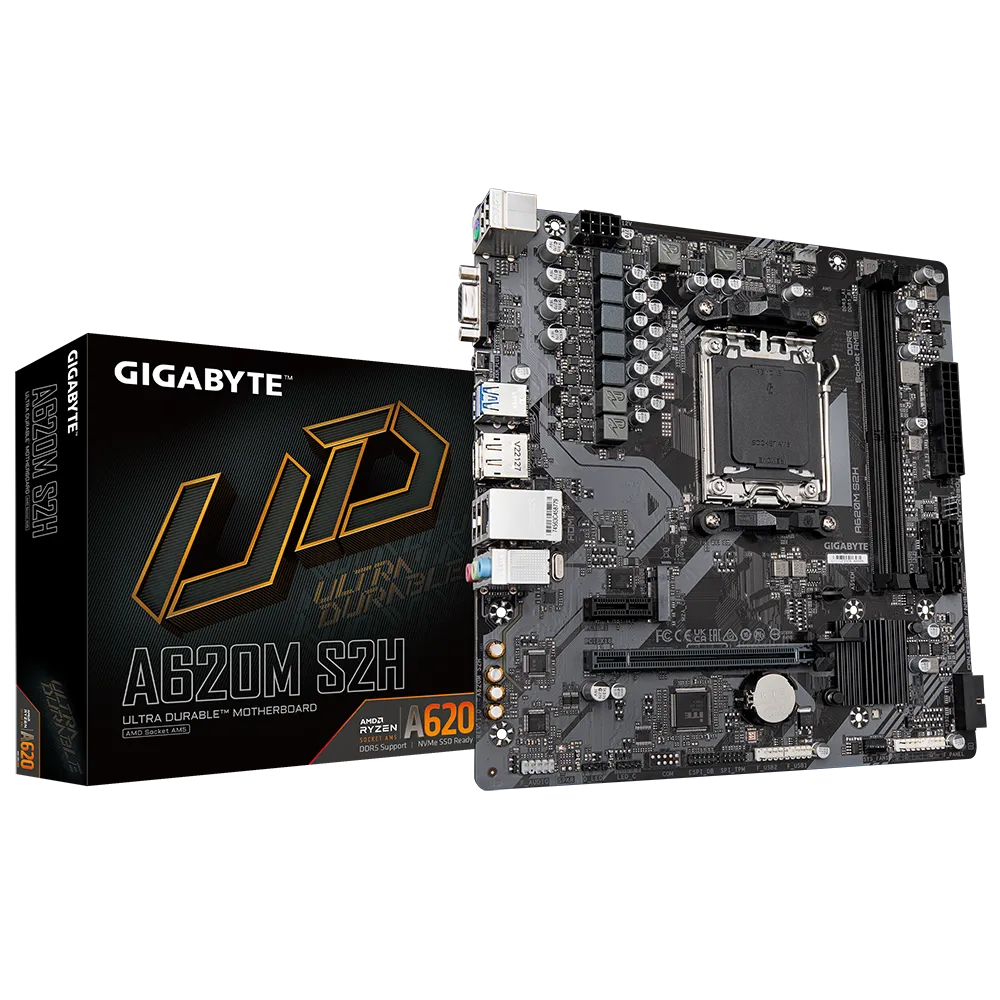

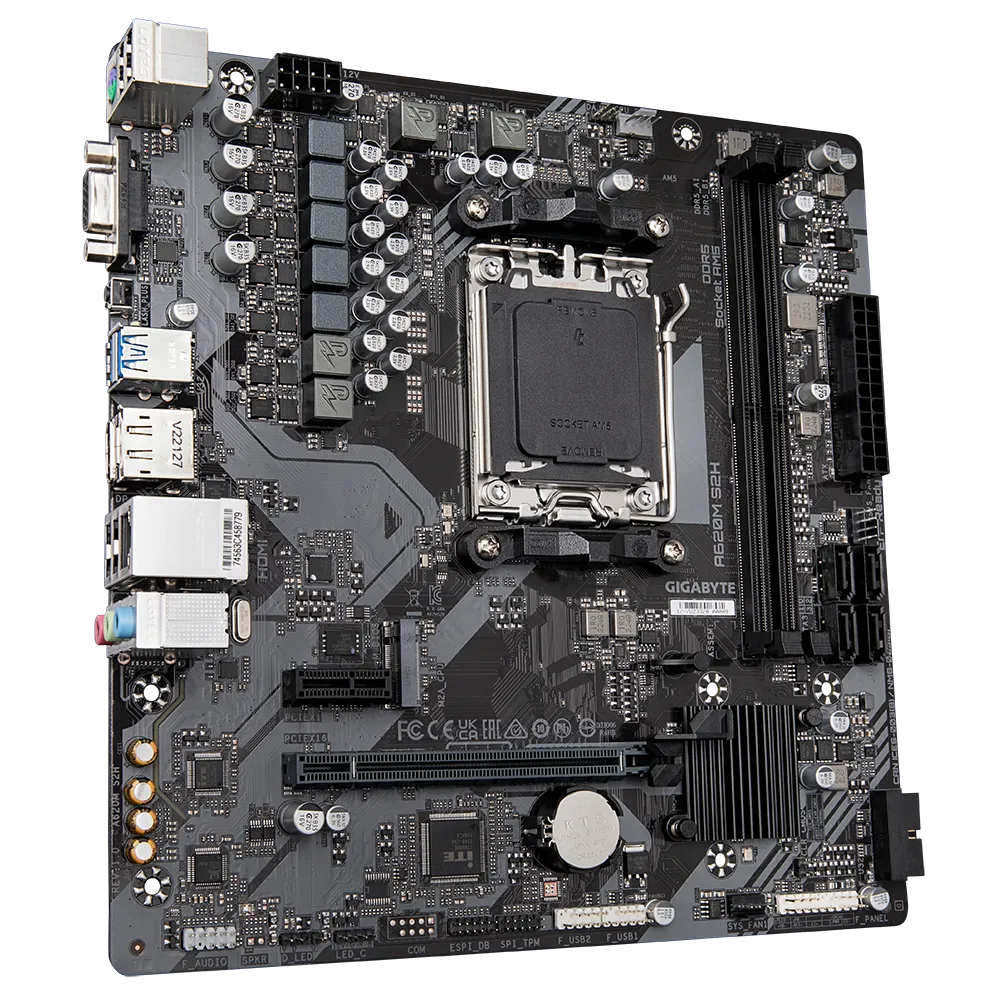

Gigabyte A620M S2H Motherboard

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UltraDurable series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPU by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Specifications

• CPU: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer “CPU Support List” for more information.)
• Chipset: AMD A620
• Memory
  • Support for up to DDR5 6400(OC) MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
• Onboard Graphics – Integrated Graphics Processor:
  • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz ( Support for DisplayPort 1.4 version.)
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports.)
  • (Graphics specifications may vary depending on CPU support.)
  • Support for up to 3 displays at the same time
• Audio: Realtek HD Audio 2/4/5.1/7.1-channel CODEC (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots
  • CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
  • CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
  • Chipset: 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices

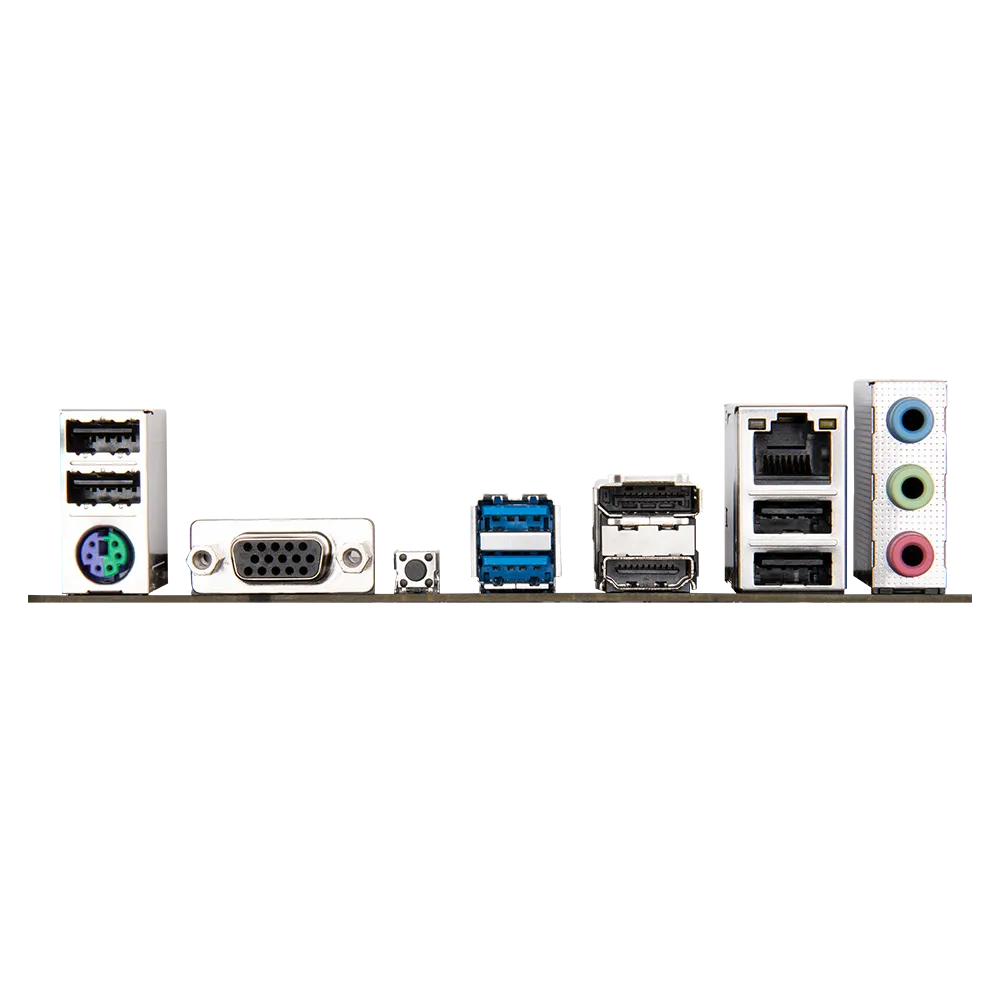

• USB
  • CPU:
    • 2 x USB 3.2 Gen 1 ports on the back panel
    • 1 x USB 2.0/1.1 port on the back panel
  • Chipset:
    • 2 x USB 3.2 Gen 1 ports available through the internal USB header
    • 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
• Form Factor: Micro ATX, 23.0 x 22.5 cm
• Warranty: 3 Years
