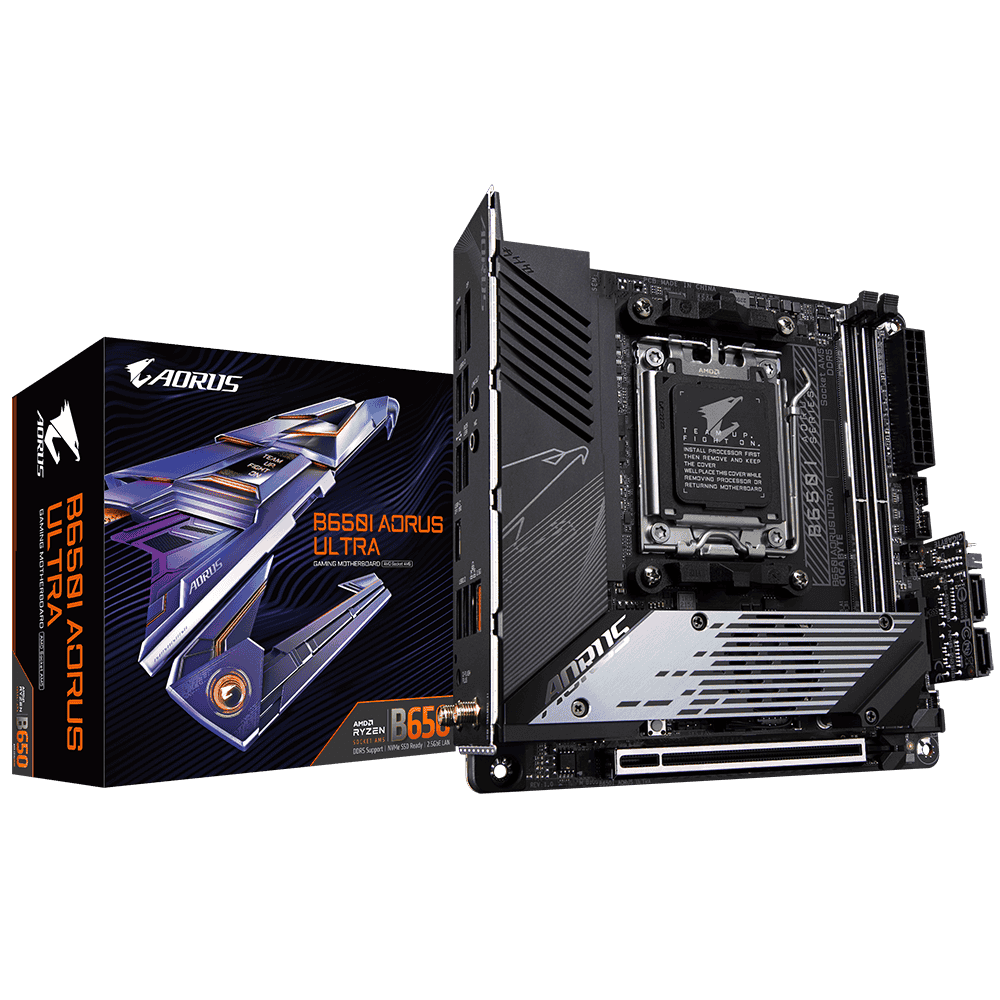

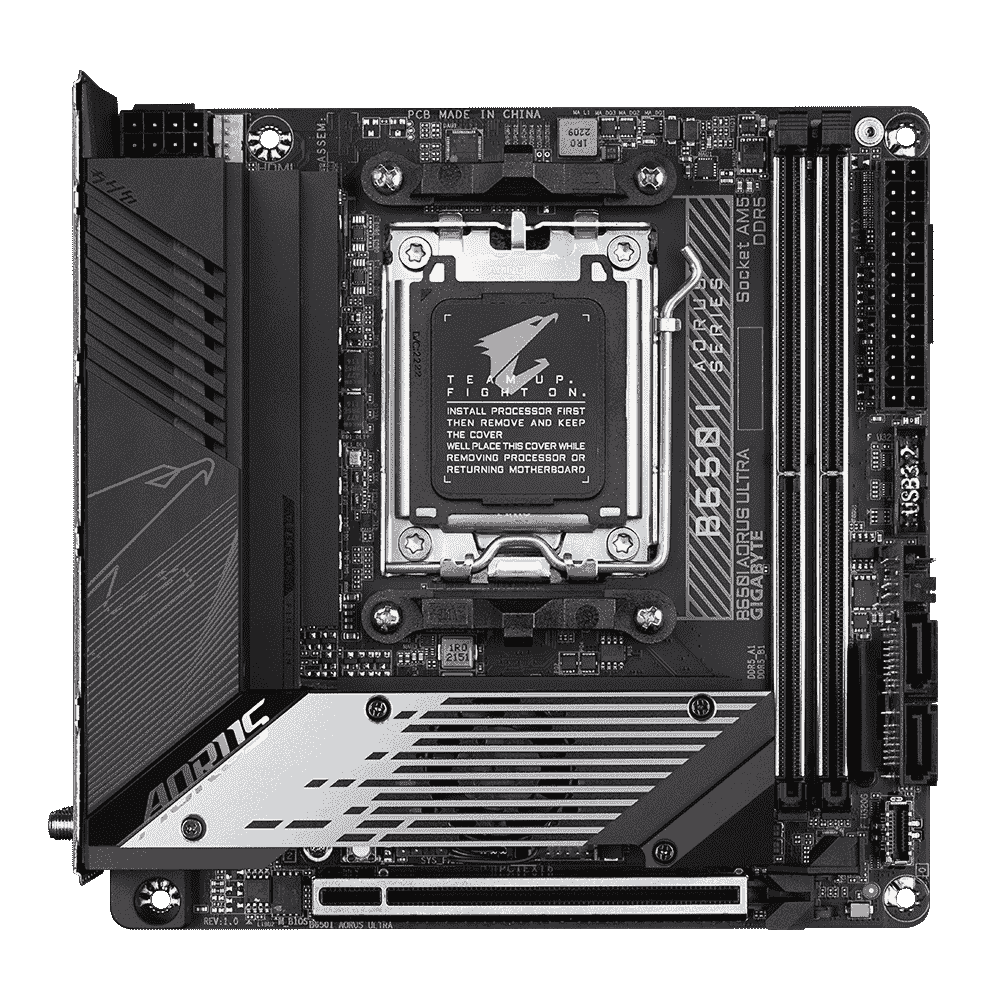

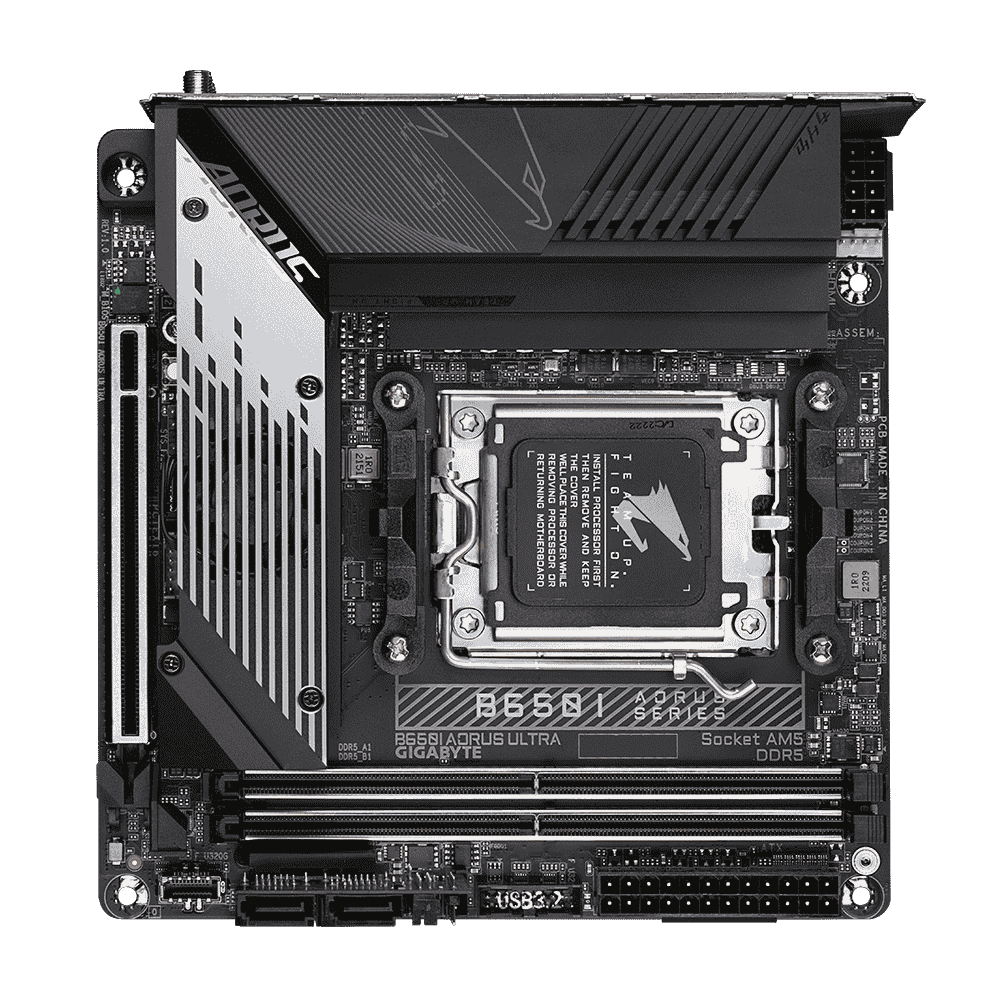

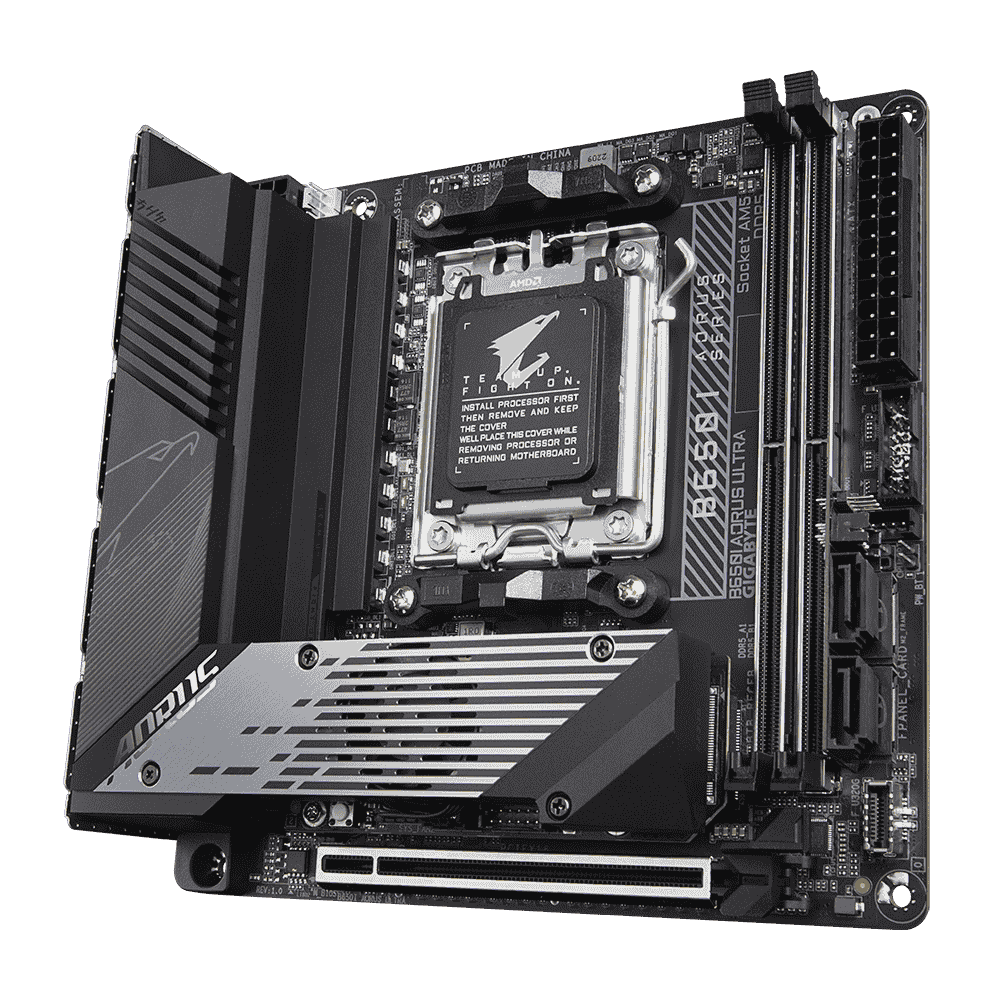

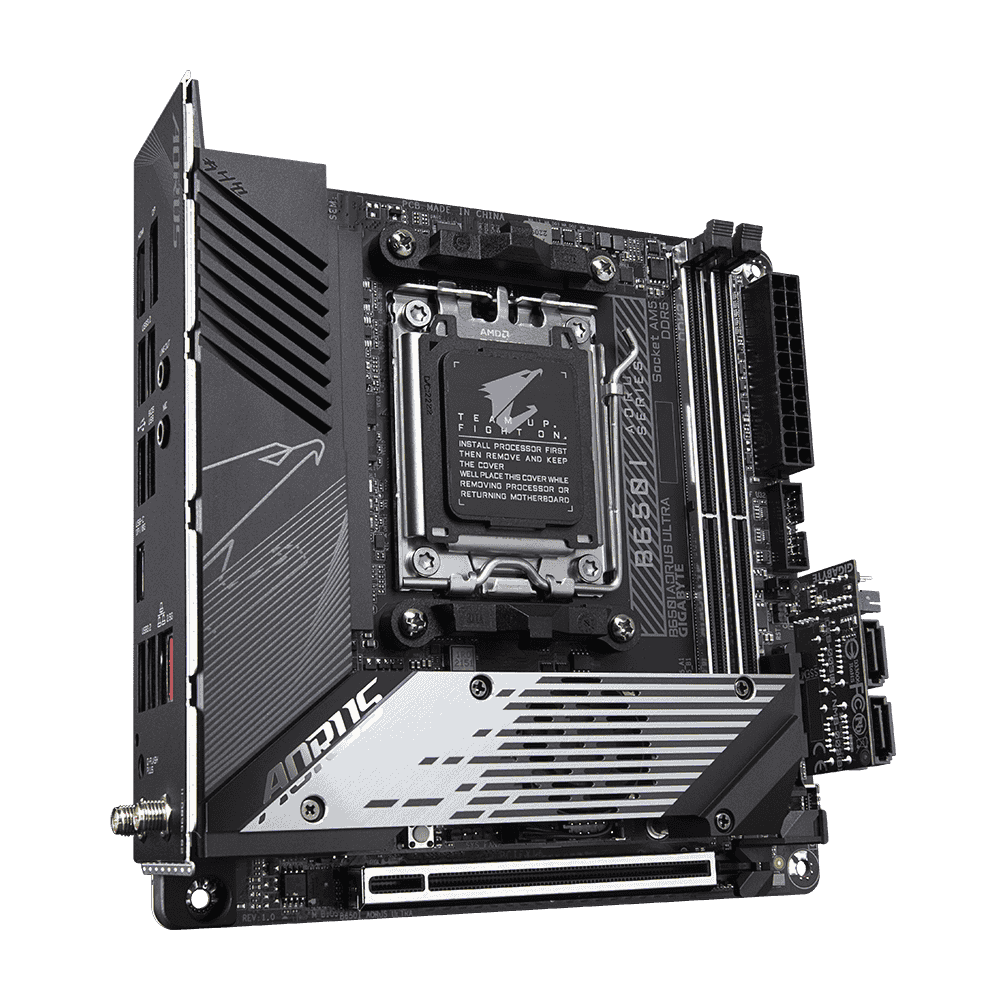

Gigabyte B650i Aorus Ultra AX Motherboard

Features

• AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
• Unparalleled Performance: Direct 8+2+1 Phases Digital VRM Solution
• Dual Channel DDR5: 2x SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• Next Generation Storage: 1x PCIe 5.0 x4 and 2x PCIe 4.0 x4 M.2 Connectors
• Fully Covered Heatpipe & M.2 Thermal Guard III with Active Cooling: To Ensure 2280 PCIe 5.0 M.2 SSD Performance
• EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Hi-Fi Audio with DTS X® Ultra: ALC4080 CODEC
• Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: DP, HDMI, Rear USB-C® with DP Alt Mode, Front USB-C® 20Gb/s
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications

• CPU: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
  (Please refer "CPU Support List" for more information.)
• Chipset: AMD B650
• Memory
  1. Support up to DDR5 6400(OC) MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics Integrated Graphics Processor:
  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version and HDR.)
  2. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version and HDR.)
  3. 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz (Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports.)

  (Graphics specifications may vary depending on CPU support.)

• Audio
  1. Realtek® ALC4080 CODEC
  2. High Definition Audio
  3. 2-channel
• LAN: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots (CPU): 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Storage Interface
  CPU:
  1. 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU.
  2. 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  2. 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB
  CPU:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG

  Chipset:

  1. 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
• Form Factor: Mini-ITX Form Factor (17.0 x 17.0 cm)
• Warranty: 36 Months
