Gigabyte B650M D3HP Motherboard

Original price was: R3199,00.Current price is: R2659,00.

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage

In Stock with Supplier

SKU: MB-GB650MD3HP

B650M D3HP

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：2*DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications

  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset
    AMD B650
  • Memory
    Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon™ Graphics support
    - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    Support for up to triple-display at the same time
    (Graphics specifications may vary depending on CPU support.)

  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
    - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    - 1 x USB 3.2 Gen 1 port on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 2 x USB 3.2 Gen 1 ports on the back panel
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 2 x USB 3.2 Gen 1 ports available through the internal USB header
    - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

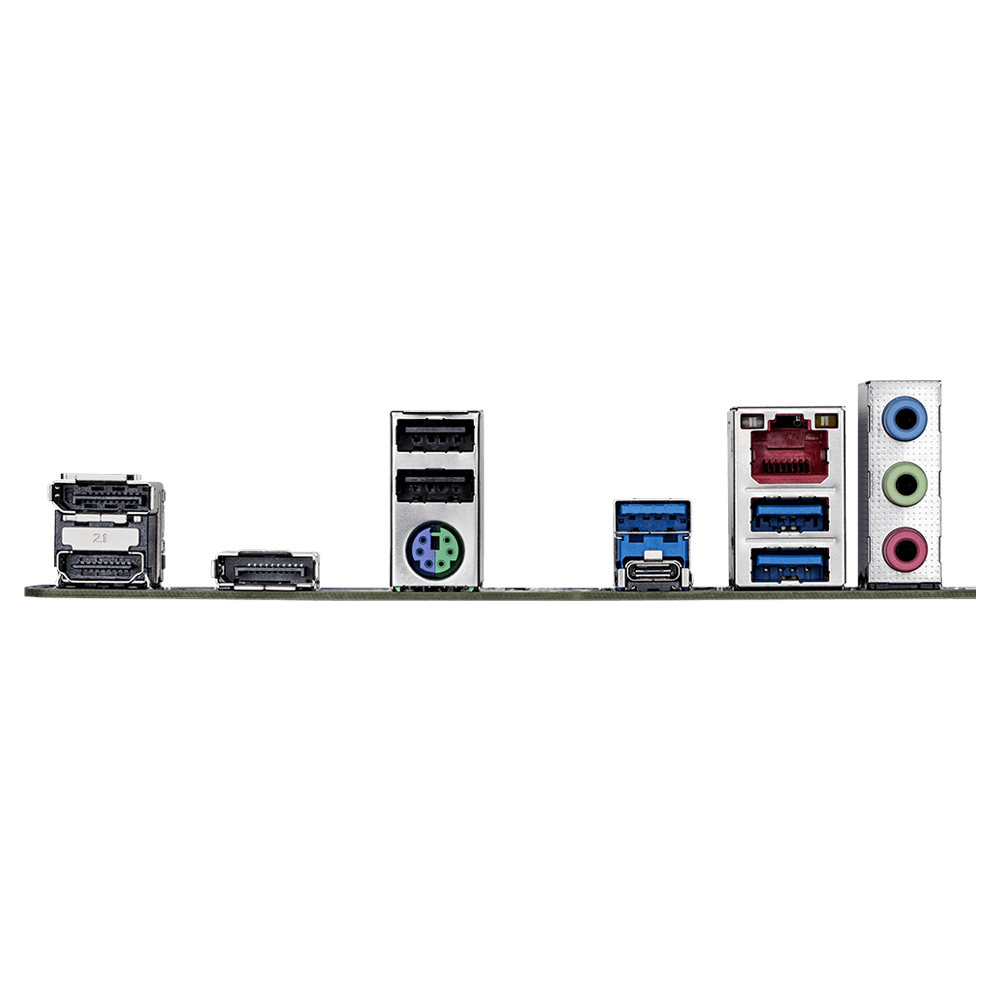

  • Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    3 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x HDMI port
    2 x DisplayPorts
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
    Support for Q-Flash Plus

  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 24.4cm x 24.4cm
  • Warranty: 36 Months
