Sale!

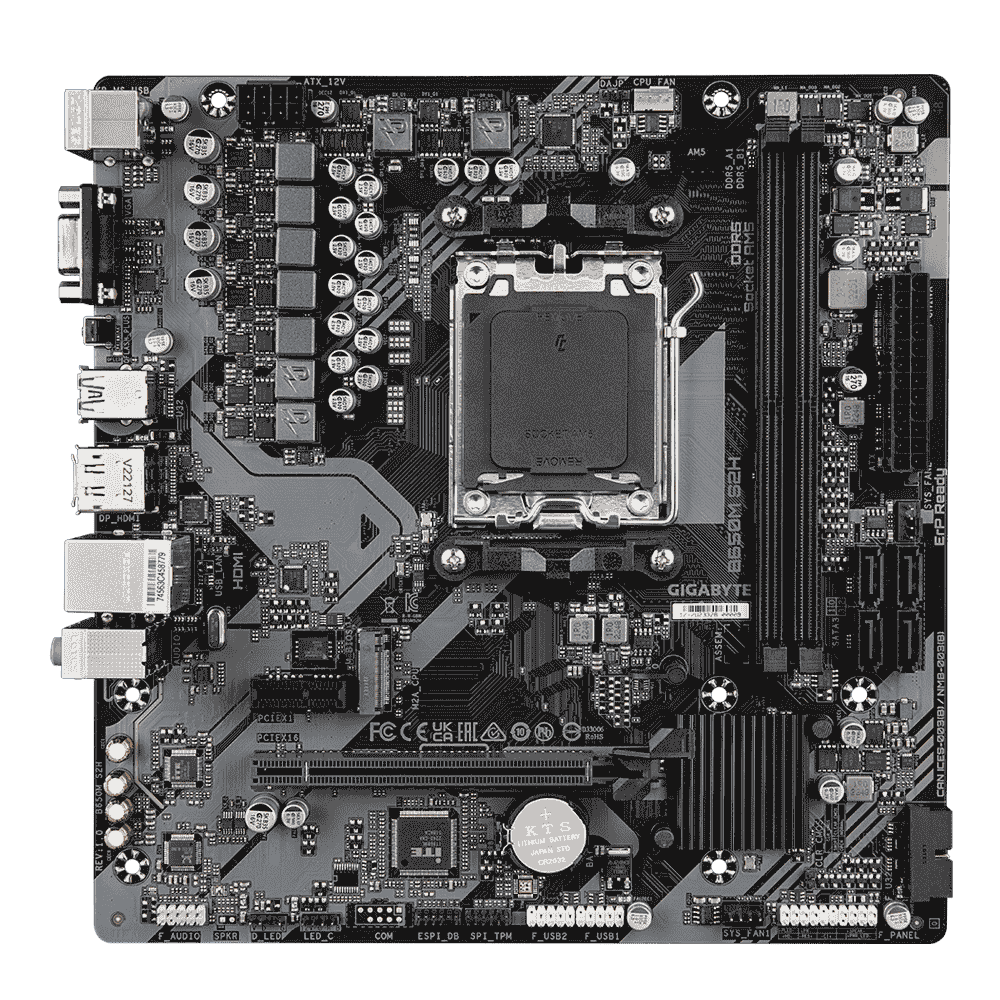

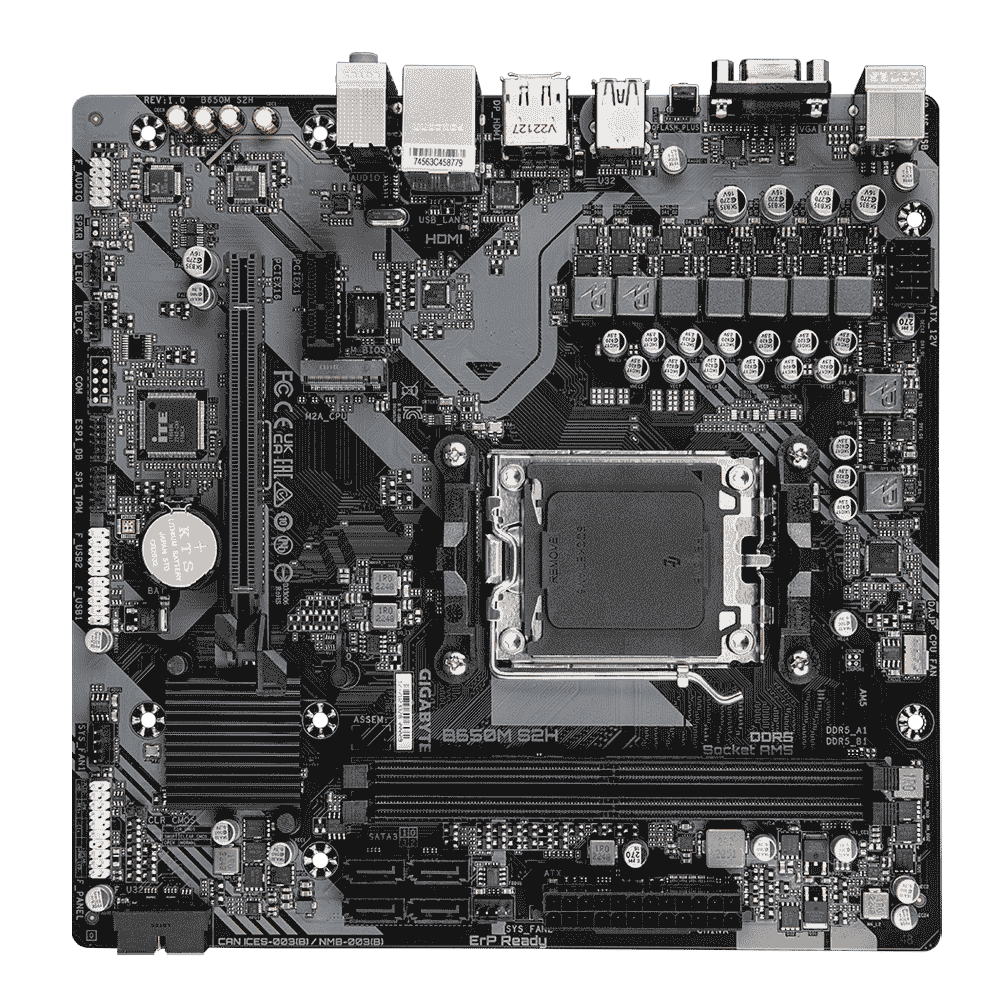

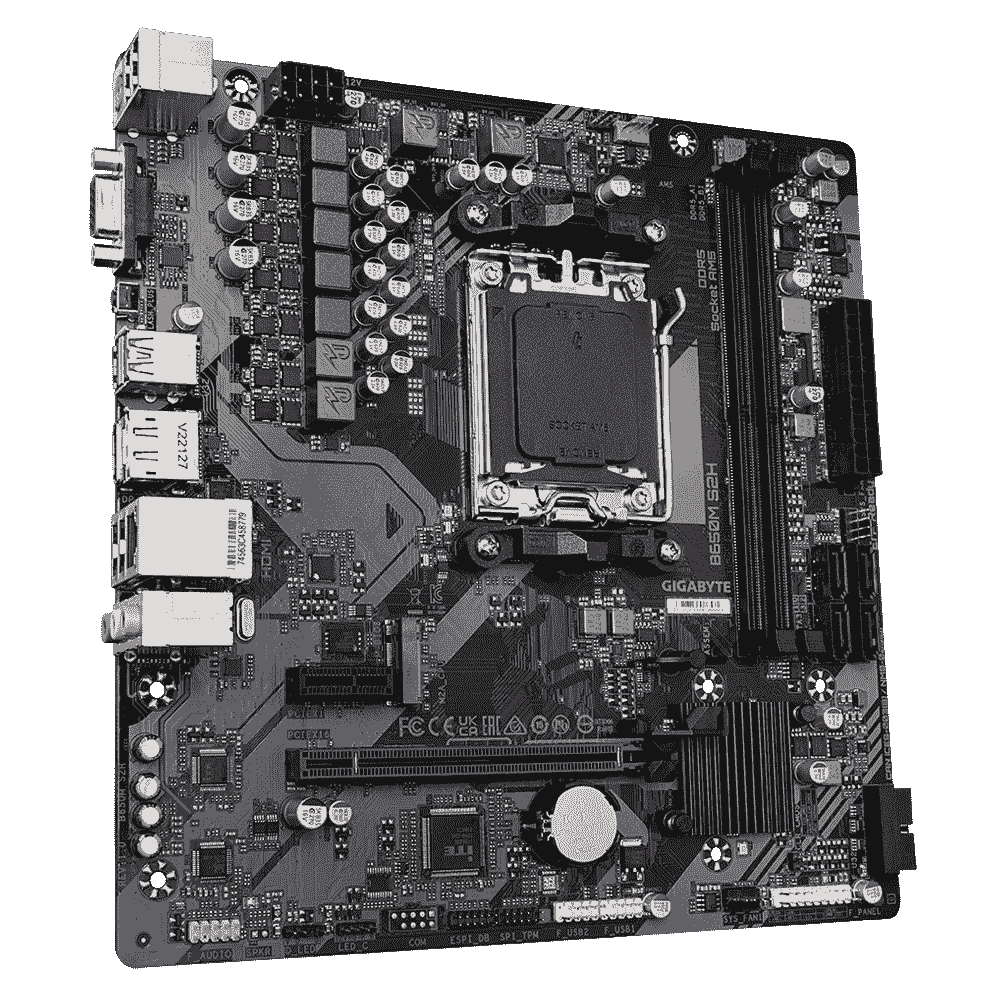

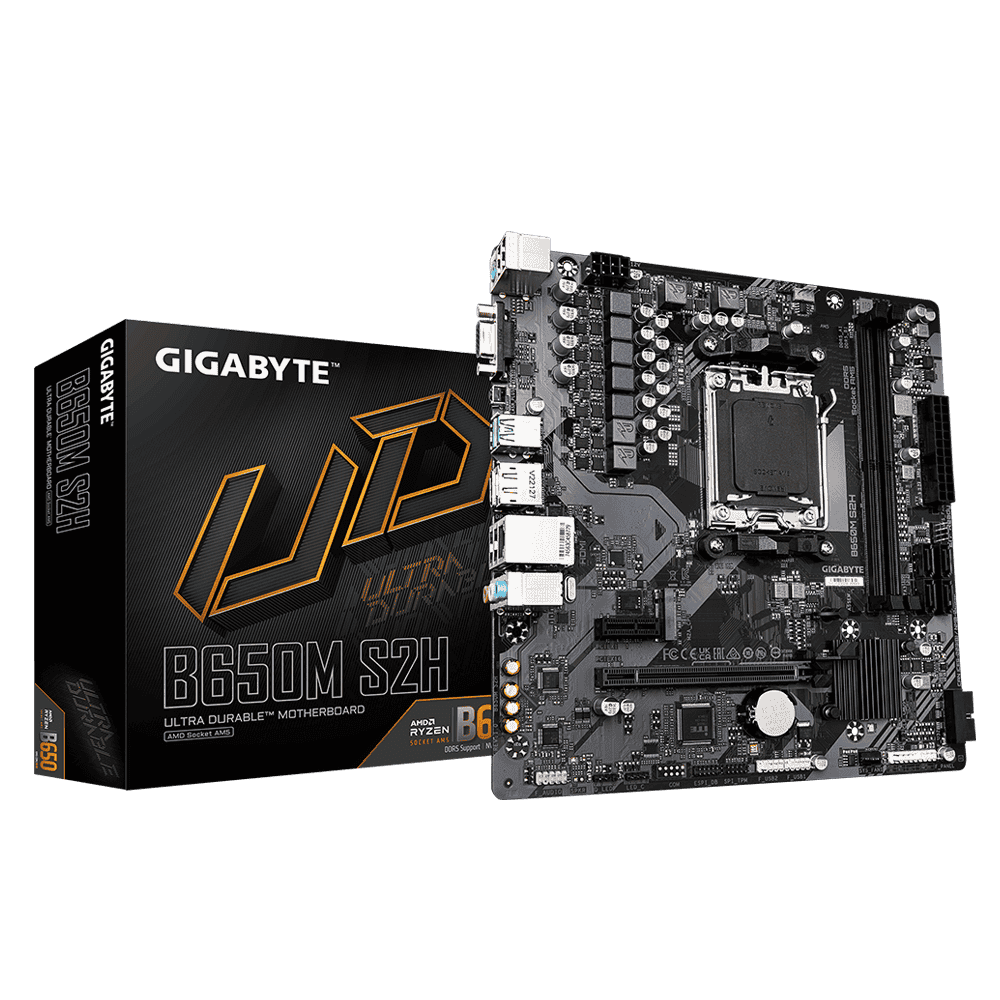

Gigabyte B650M S2H AM5 Motherboard

Name: Gigabyte B650M S2H AM5 Motherboard
Brand: AMD
SKU: MB-GB650MS2H
Price: 2409 ZAR
Availability: InStock

Original price was: R3069,00.Current price is: R2409,00.

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

AMD Socket AM5: Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
SuperSpeed Storage: PCIe 4.0 x4 M.2 Connectors
EZ-Latch: PCIe x16 Slot with Quick Release Design
Fast Networks: GbE LAN

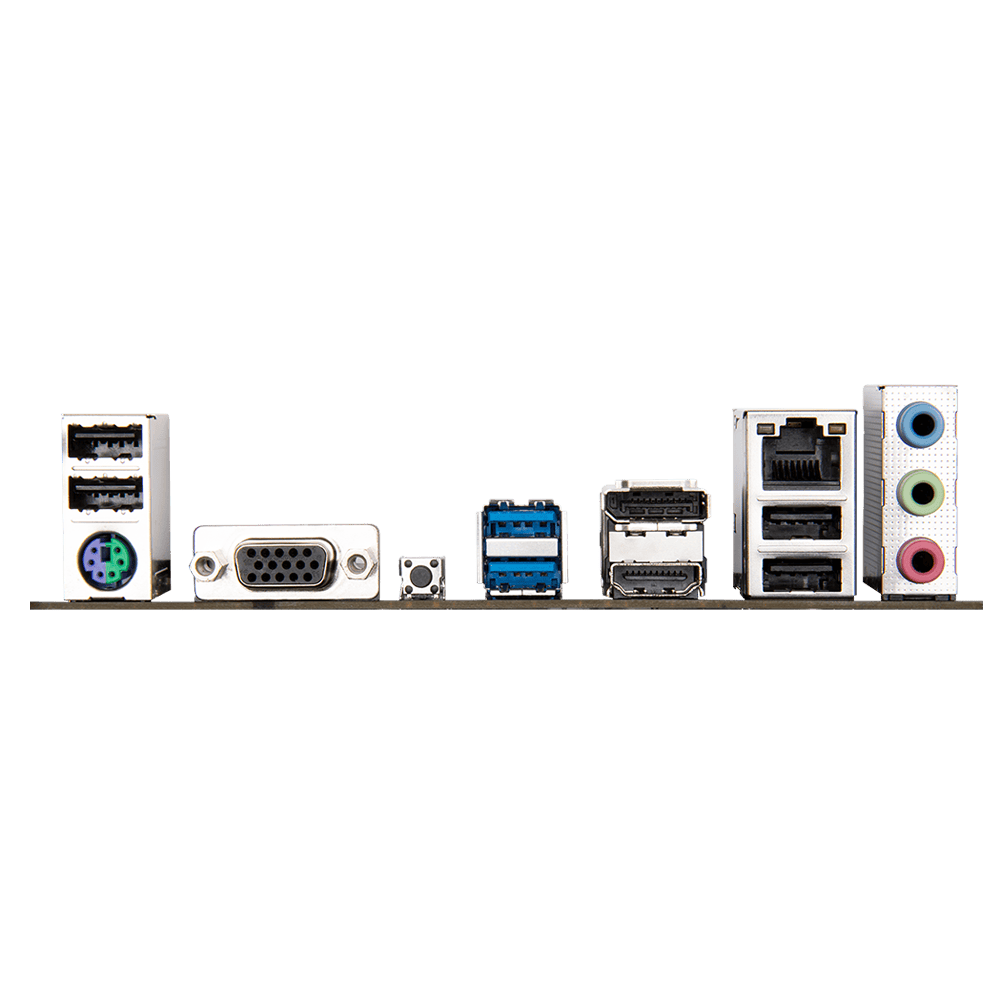

Extended Connectivity: DP, HDMI, D-Sub
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

In Stock with Supplier

SKU: MB-GB650MS2H

AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：DP, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU Support: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
CPU Socket: AM5
Chipset: AMD B650
Graphics
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort maximum resolution of 3840x2160@144 Hz
- 1 x HDMI maximum resolution of 4096x2160@60 Hz
- (Graphics specifications may vary depending on CPU support)
Memory
- 2x DDR5 UDIMM
- 4400MHz - 6400MHz (OC)
- Maximum Memory Capacity: 96GB
- Supports Dual channel memory architecture
Expansion Slots
- 1 x PCI Express supporting PCIe 4.0 and running at x16
- 1 x PCI Express supporting PCIe 3.0 and running at x1
Storage
- 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
USB ports
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Lan: Realtek GbE LAN chip
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Form factor: Micro ATX Form Factor (23.0 x 22.5cm)
Warranty: 36 Months

Please refer to full motherboard specifications on the Manufacturer's product page.
