Gigabyte Z790 Eagle AX DDR5 Motherboard
Original price was: R5899,00.R4909,00Current price is: R4909,00.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Z790 EAGLE AX
-
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 5.0×16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

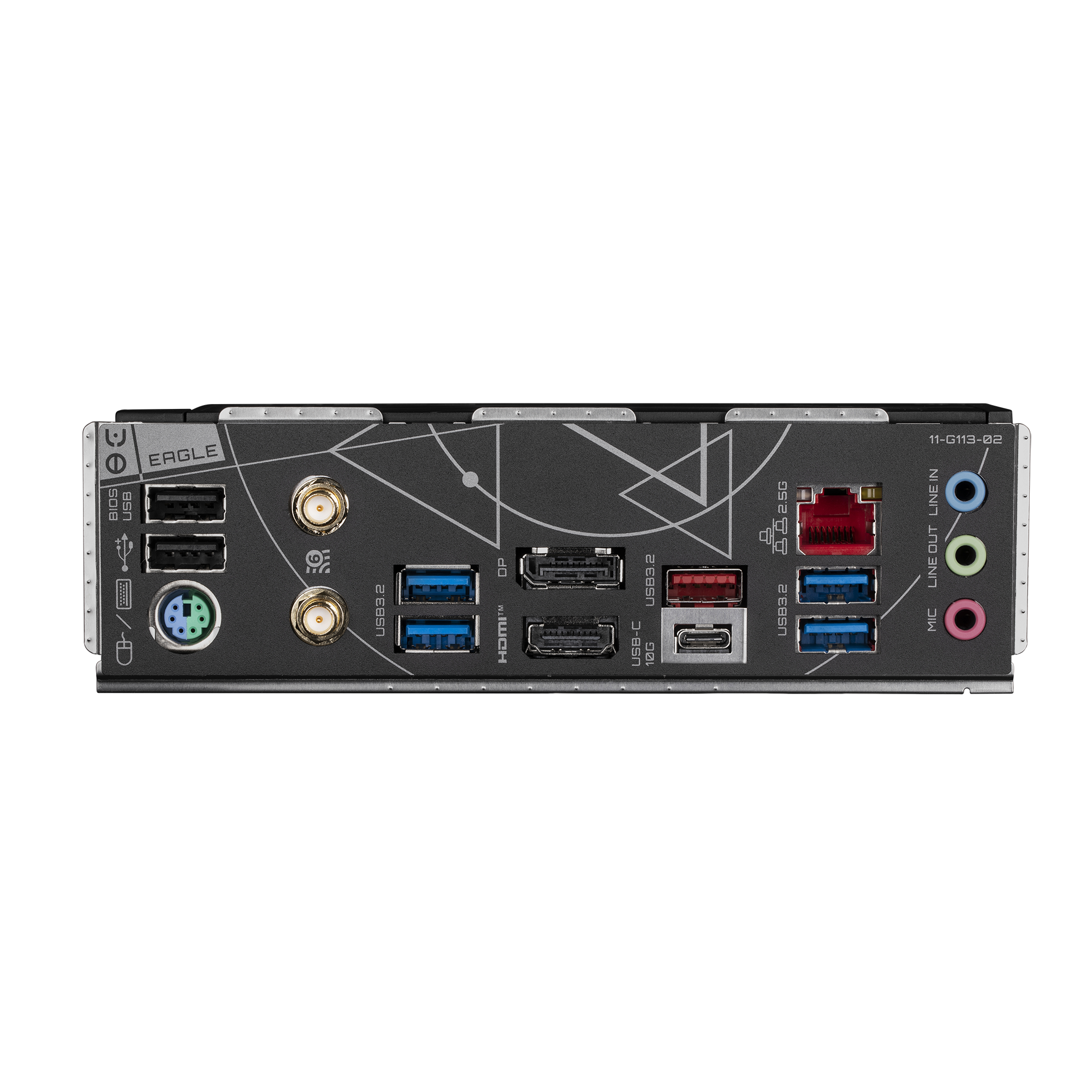

- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 6+6 phases parallel power design
Out of stock
SKU: GA-Z790-EAGLE-AX
Specifications
- CPU
- LGA1700 socket
- Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- L3 cache varies with CPU
- (Please refer to the CPU Support List for more information.)
- Chipset: Intel® Z790 Express Chipset
- Memory
- 14th and 13th Generation Intel® Core™ i9/i7 Pocessors
- Support for DDR5 7600(O.C.) - 4400 MT/s memory modules
- 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- Support for DDR5 4800/4400 MT/s memory modules
- 4 x DDR5 DIMM sockets
- Up to 192 GB
- Dual channel memory architecture
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the Memory Support List.)
- 14th and 13th Generation Intel® Core™ i9/i7 Pocessors
- Onboard Graphics
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- Audio: Realtek® Audio CODEC
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication
- Wi-Fi 6E
- BLUETOOTH 5.3
- Expansion Slots
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
- Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
- USB
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
- 4 x USB 2.0/1.1 ports, available through the internal USB headers
- Form Factor
- ATX Form Factor
- 30.5 x 24.4 cm
- Warranty: 3 Years
