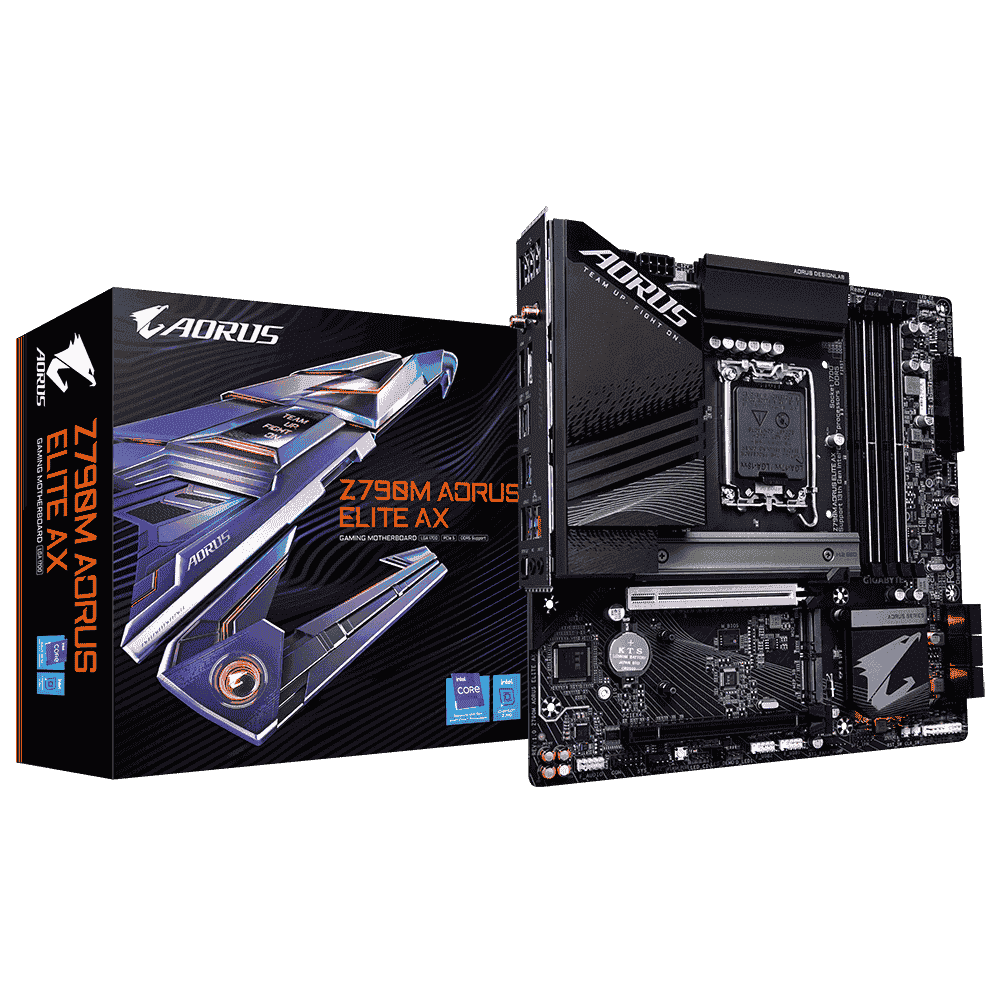

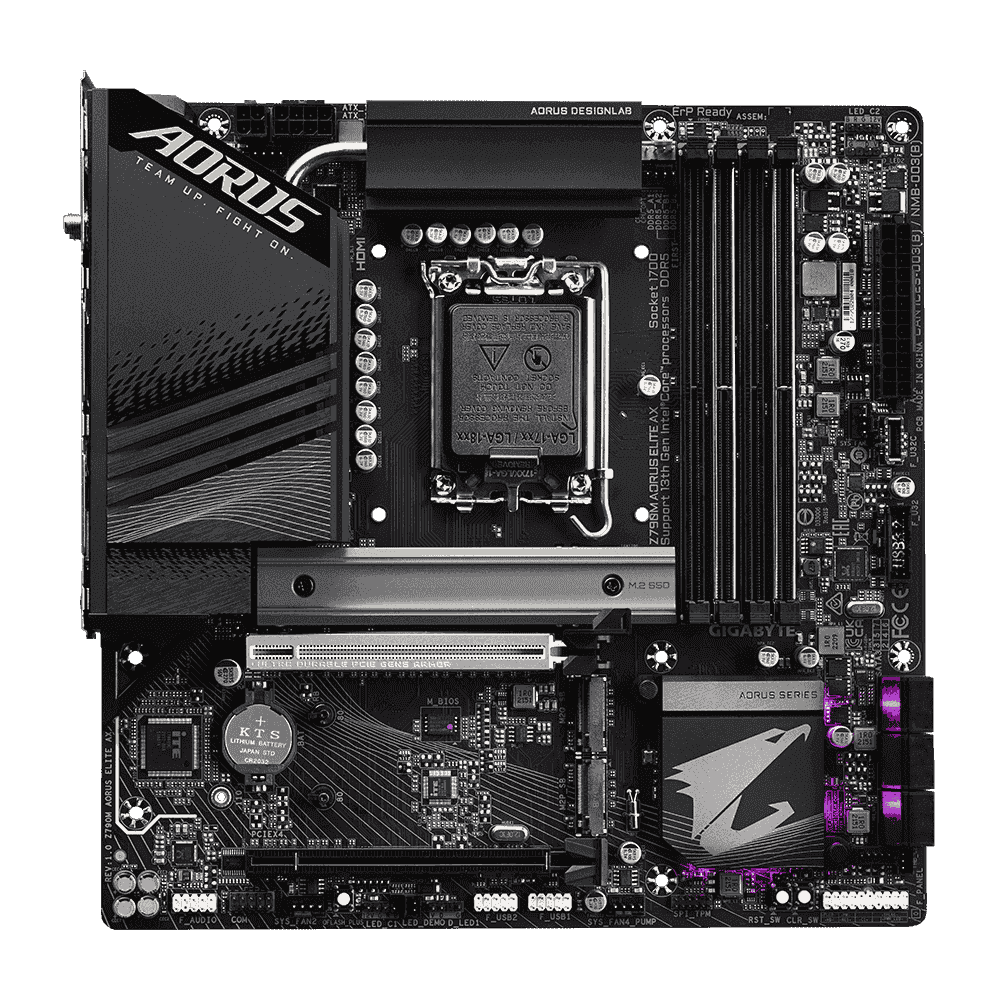

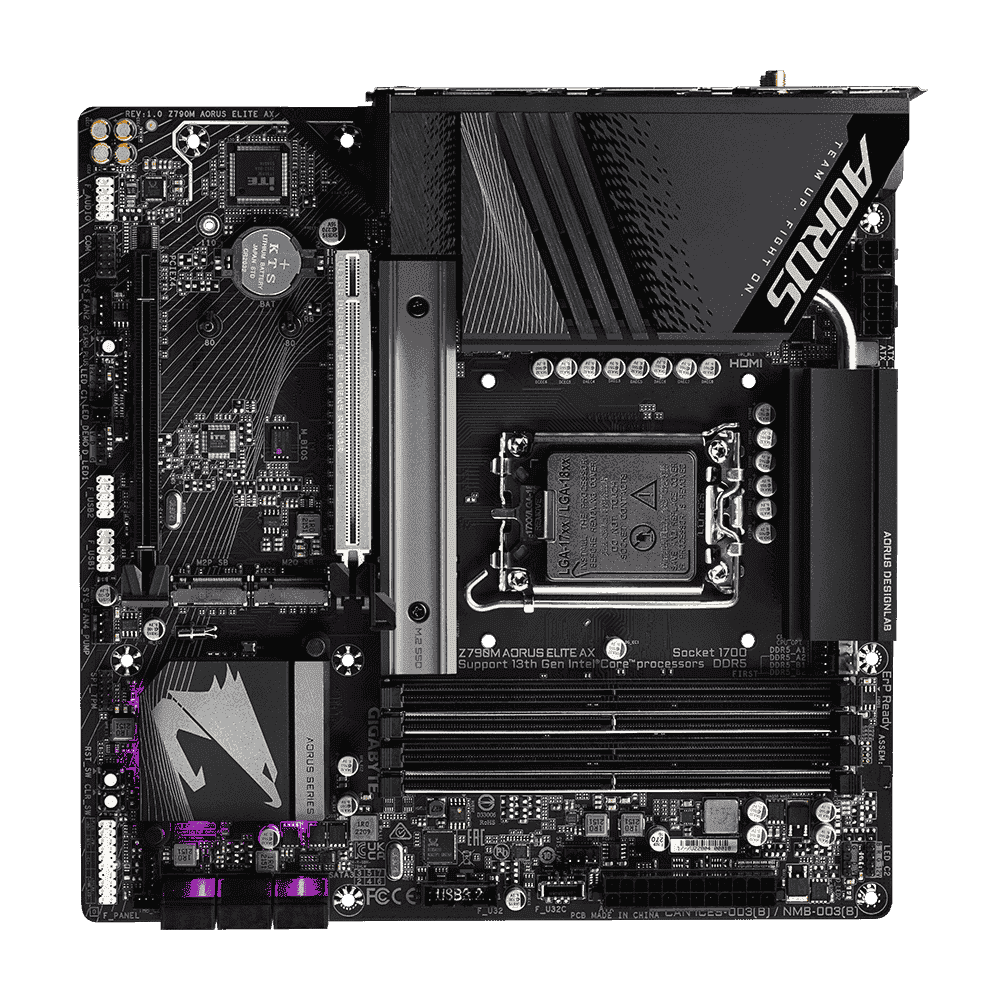

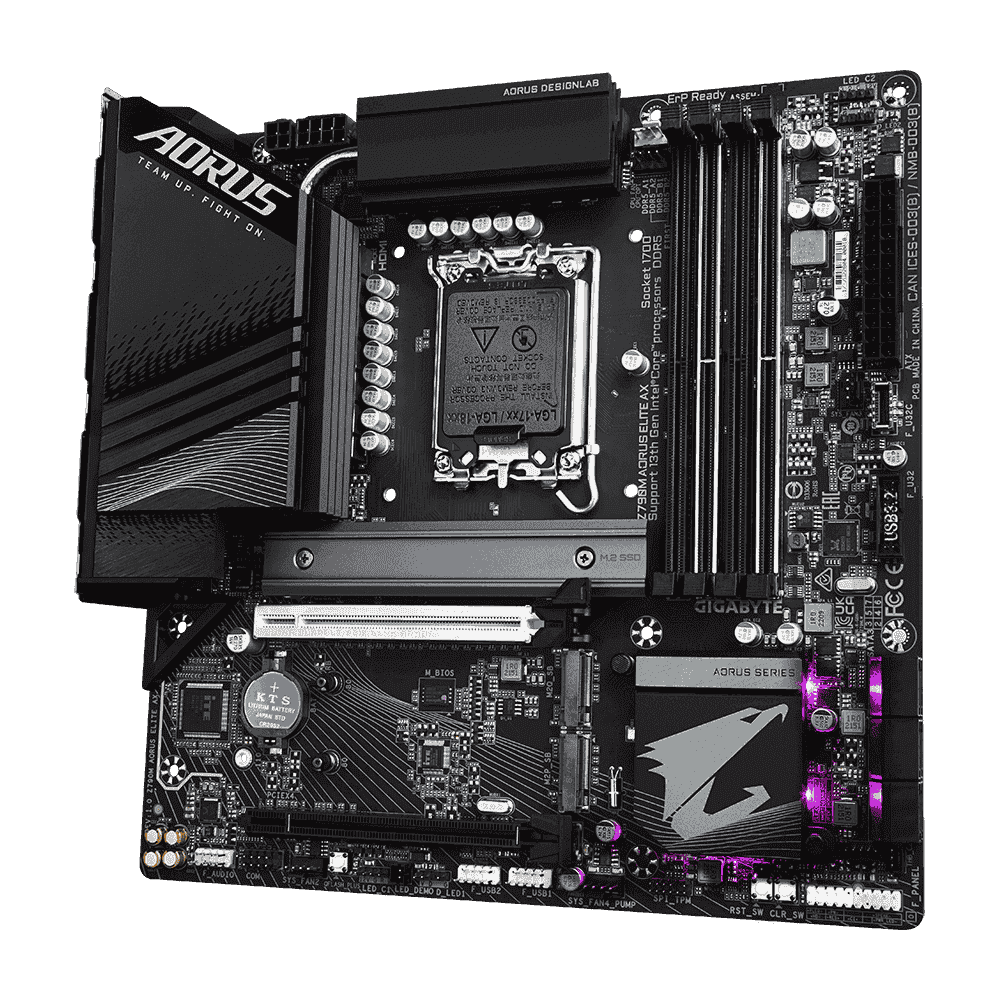

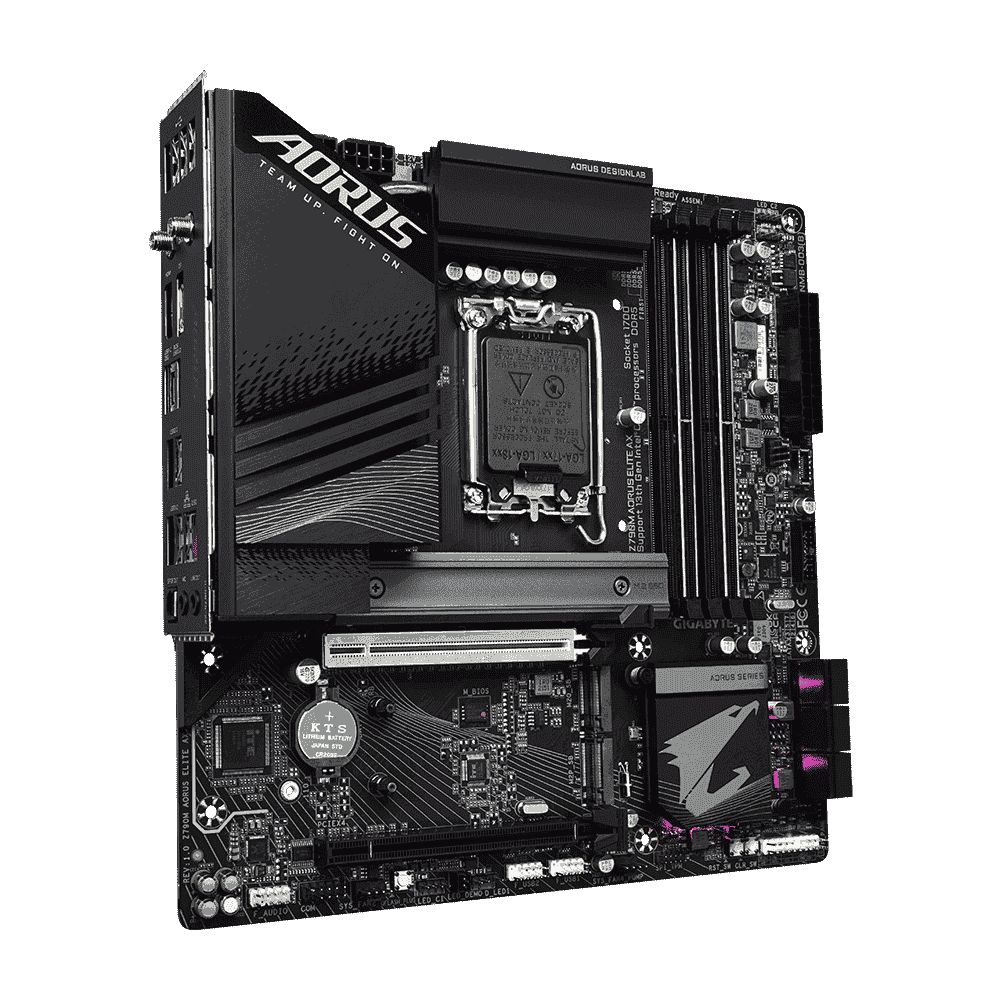

Gigabyte Z790M Aorus Elite AX DDR5 Motherboard


You save (%)

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage connectivity.

Key Feature:

  • Intel® Socket LGA 1700: Support 14th/ 13th /12th Gen Series Processors
  • Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
SKU: MB-GZ790MAE+W

Features

  • DDR5 memory support ensures faster speeds, improved efficiency, and smooth multitasking

  • Robust 12+1+1-phase VRM design provides stable power delivery for overclocking and heavy loads

  • Advanced thermal solutions with enlarged heatsinks, heatpipes, and thermal pads

  • PCIe 5.0 x16 slot for next-generation graphics cards and high-speed expansion

  • Integrated Wi-Fi 6E and 2.5 GbE Ethernet for low-latency, stable connectivity

  • Multiple USB ports including high-speed USB-C for versatile device connections

  • Smart Fan 6 technology for efficient cooling and quieter operation

  • Enhanced audio system for immersive gaming experiences

Specifications

  • CPU Support: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Please refer to the CPU Support List for more information.)
  • CPU Socket: LGA 1700
  • Chipset: Intel Z790
  • Graphics
    • 1 x HDMI 2.1 supporting a maximum resolution of 4096x2160@60 Hz
    • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
    • (Graphics specifications may vary depending on CPU support.)
  • Memory
    • 4x DDR5 DIMM Slots
    • Speed: 4000 -7600 MT/s (OC)
    • Maximum Memory Capacity: 192 GB
    • Supports Dual channel memory architecture
  • Expansion Slots
    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
    • 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4
  • Storage
    • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
    • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
    • 6 x SATA 6Gb/s connectors

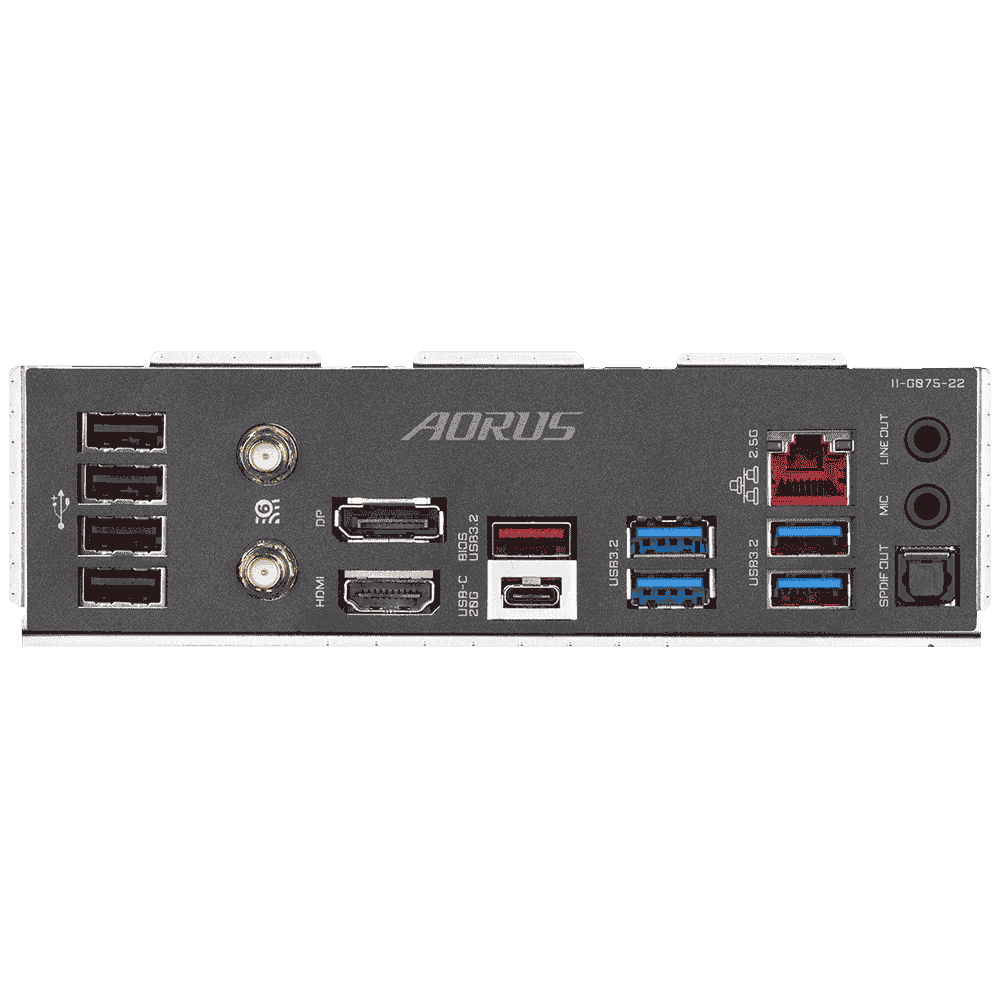

  • USB ports
    • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
    • 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • LAN: Realtek 2.5GbE LAN chip
  • Wireless/ Bluetooth: Intel Wi-Fi 6E AX211/ BLUETOOTH 5.3
  • Audio
    • Realtek ALC1200 Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
  • Form factor: Micro ATX Form Factor; 24.4 x 24.4 cm
  • Warranty: 36 Months

Note

Please refer to full motherboard specifications on the Manufacturer's product page.

Additional information

Weight 0,812 kg
