- Intel® Socket LGA 1700: Support 14th/ 13th /12th Gen Series Processors
- Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks: 2.5GbE LAN
- Extended Connectivity: HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

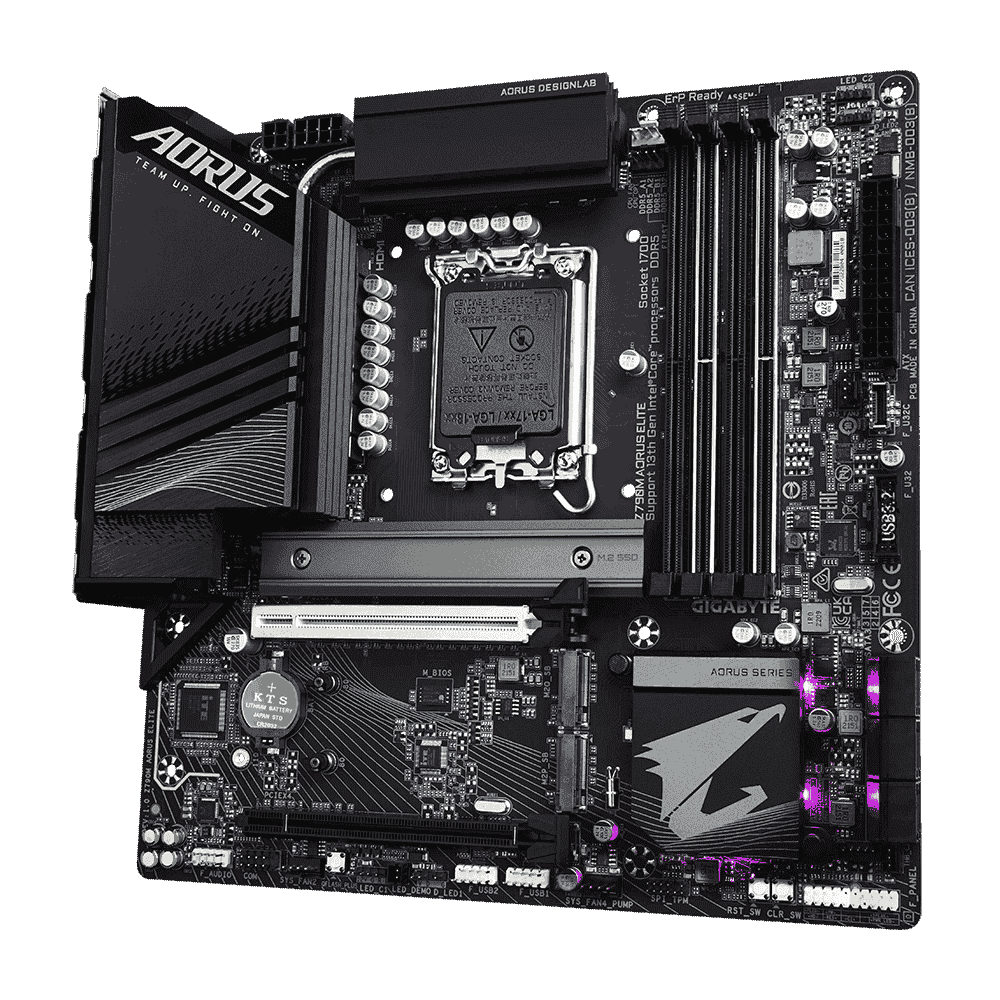

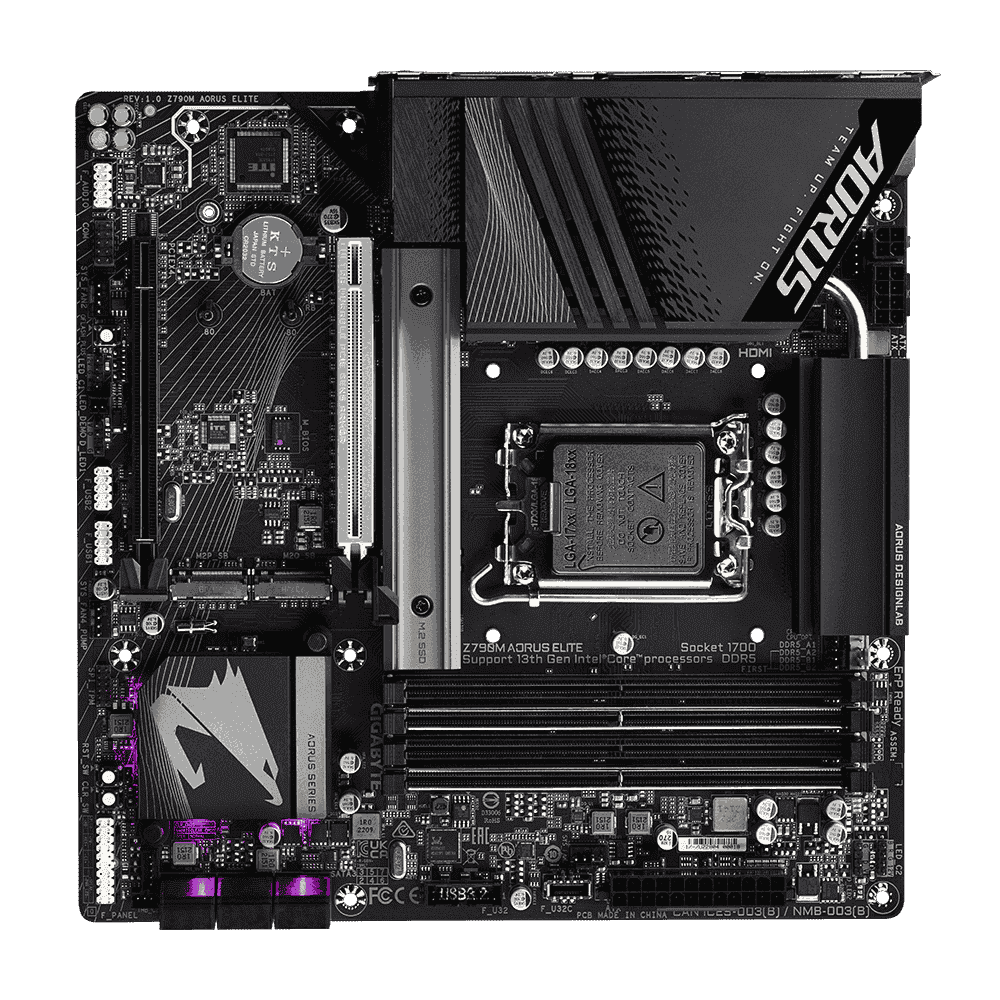

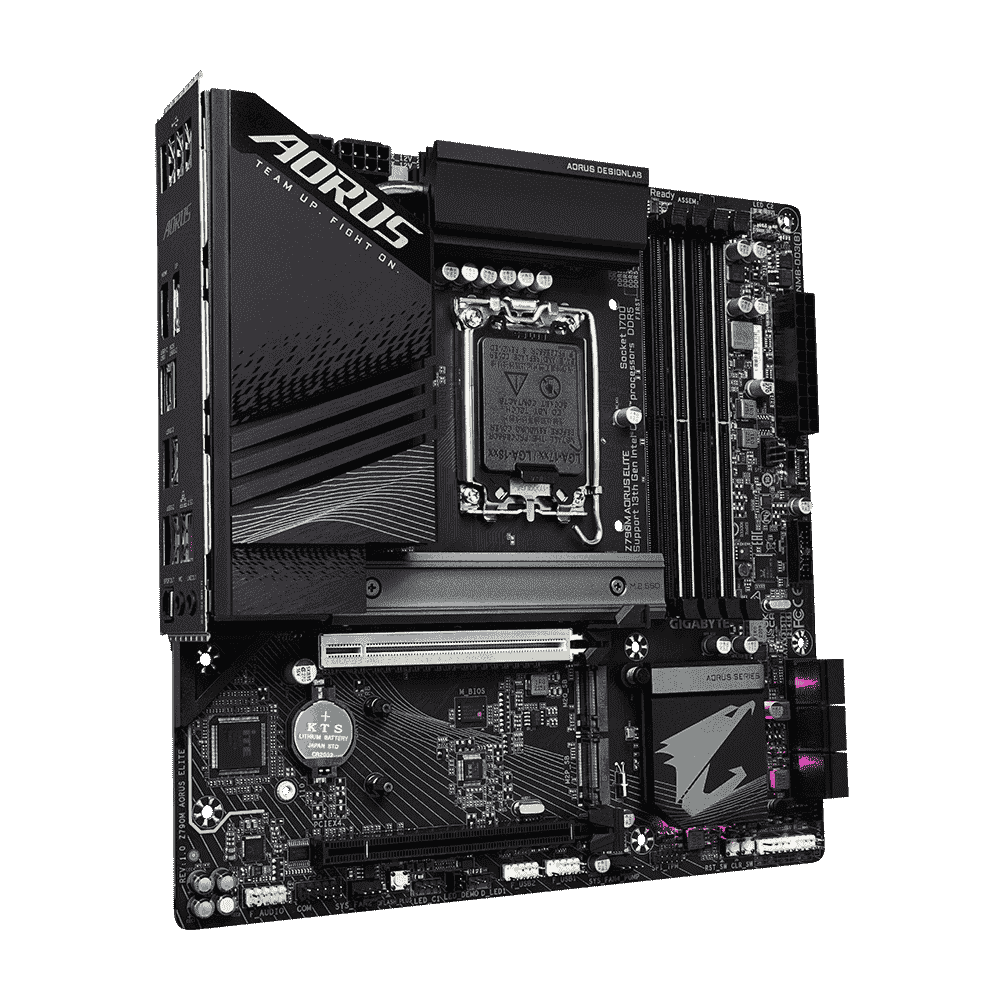

Gigabyte Z790M Aorus Elite Gaming DDR5 Motherboard
You save (%)
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage connectivity.
Key Feature
SKU: MB-GZ790MAE
Features
-
Built on the Intel Z790 chipset with LGA 1700 socket, compatible with 12th/13th (and some 14th) Gen Intel CPUs.
-
4 × DDR5 DIMM slots, supporting up to ~7600 MT/s (OC) for high-bandwidth memory.
-
Twin 12+1+1‑phase digital VRM design for stable power delivery and overclocking headroom
-
Three PCIe 4.0 x4 M.2 slots for blazing-fast NVMe SSDs
-
PCIe 5.0 x16 slot ready for future high-performance GPUs
-
Full MOSFET heatsinks, a 6 mm heatpipe, and 5 W/mK thermal pad for power stability
-
Connectivity: 2.5 GbE LAN, rear USB‑C 20 Gb/s, front USB‑C 10 Gb/s, HDMI, and DisplayPort
-
Smart Fan 6: Multiple temp sensors + hybrid fan headers with fan-stop feature
-
Q-Flash Plus button for BIOS updates without CPU, memory, or GPU installed
Specifications
- CPU Support: Supports 14th/ 13th /12th Gen Intel Core Processors, Pentium Gold and Celeron
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Graphics
- 1 x HDMI maximum resolution of 4096x2160@60 Hz
- 1 x DisplayPort maximum resolution of 4096x2304@60 Hz
- (Graphics specifications may vary depending on CPU support.)
- Memory
- 4x DDR5 UDIMM
- 4000Hz - 7600(OC)
- Maximum Memory Capacity 128GB
- Supports Dual channel memory architecture
- Expansion Slots
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
- Storage
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4)
- 6 x SATA 6Gb/s connectors

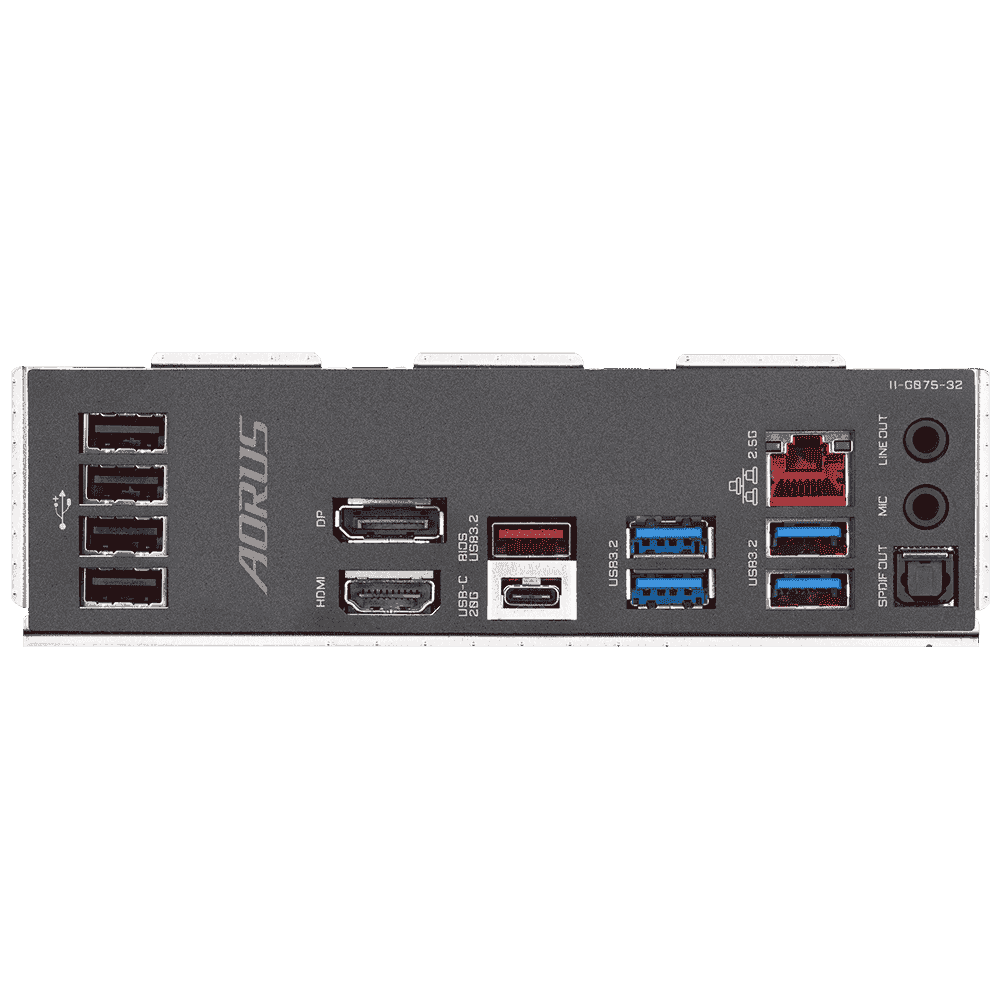

- USB ports
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C port with USB 3.2 Gen 2 support (Internal header)
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 Ports back panel, 2 ports internal header)
- 8 x USB 2.0/1.1 ports (4 ports back panel, 4 ports internal header)
- Lan: Realtek 2.5GbE LAN chip
- Wireless/ Bluetooth: No
- Audio
- Realtek ALC1200 CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Form factor: Micro ATX; 24.4cm x 24.4cm
- Warranty: 36 Months
