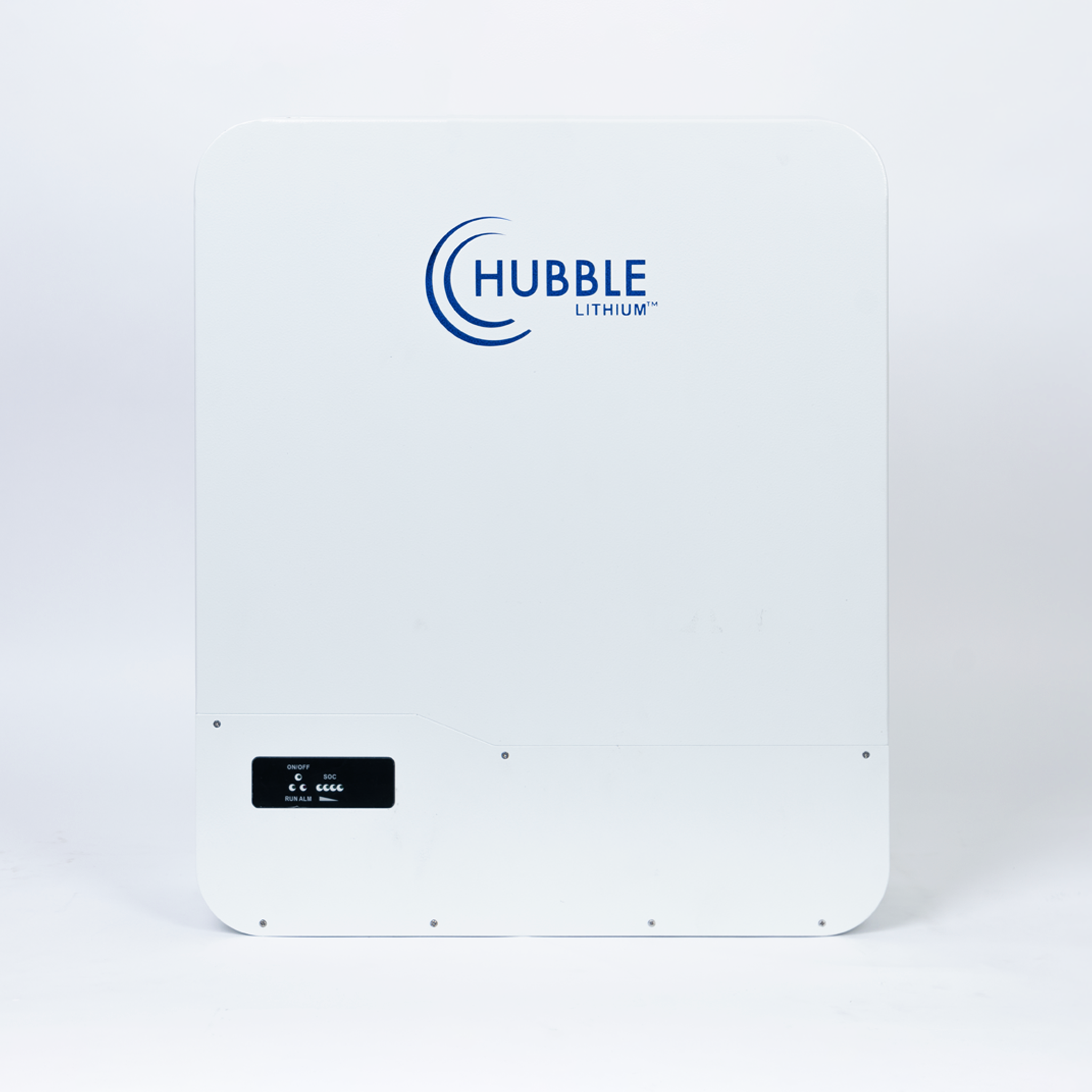

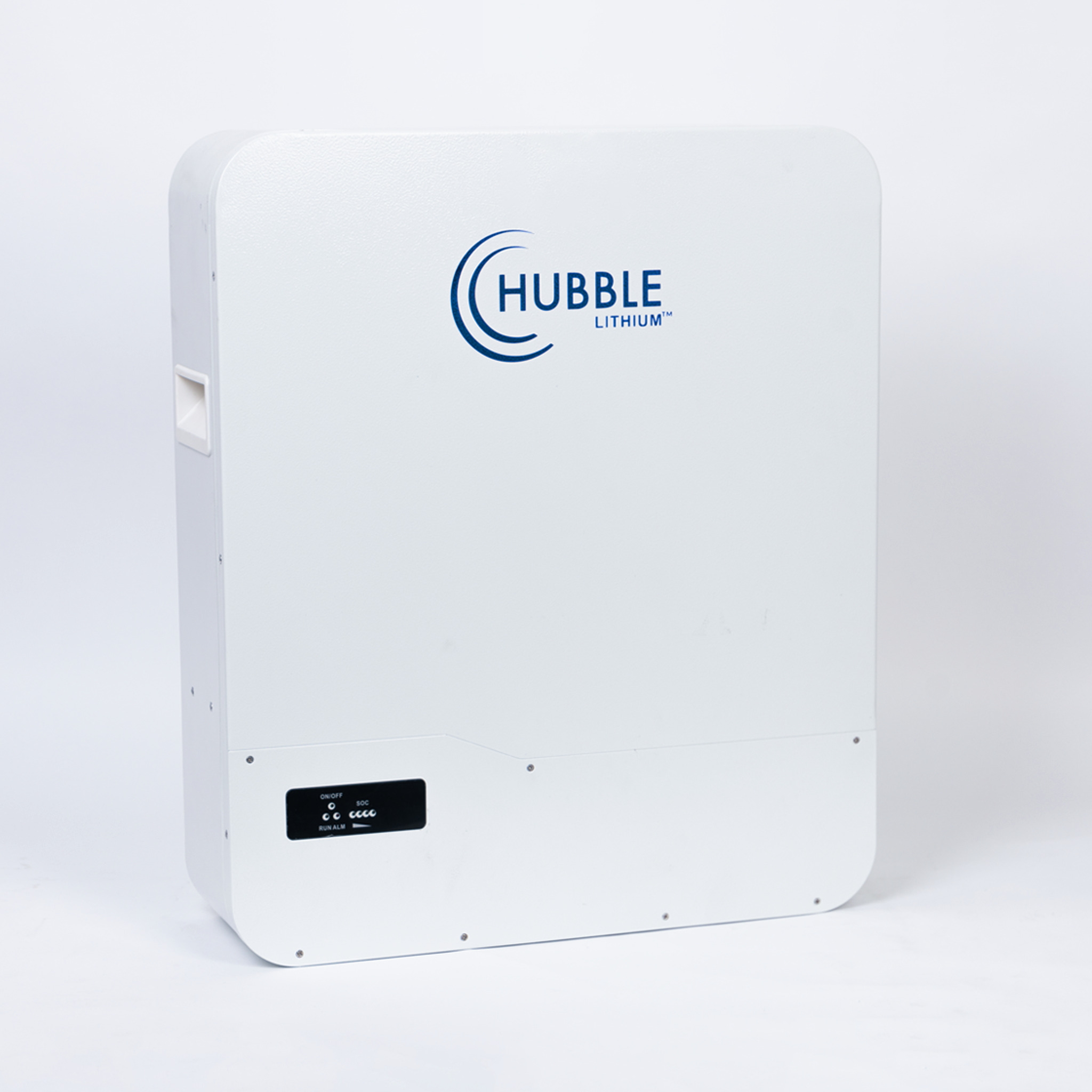

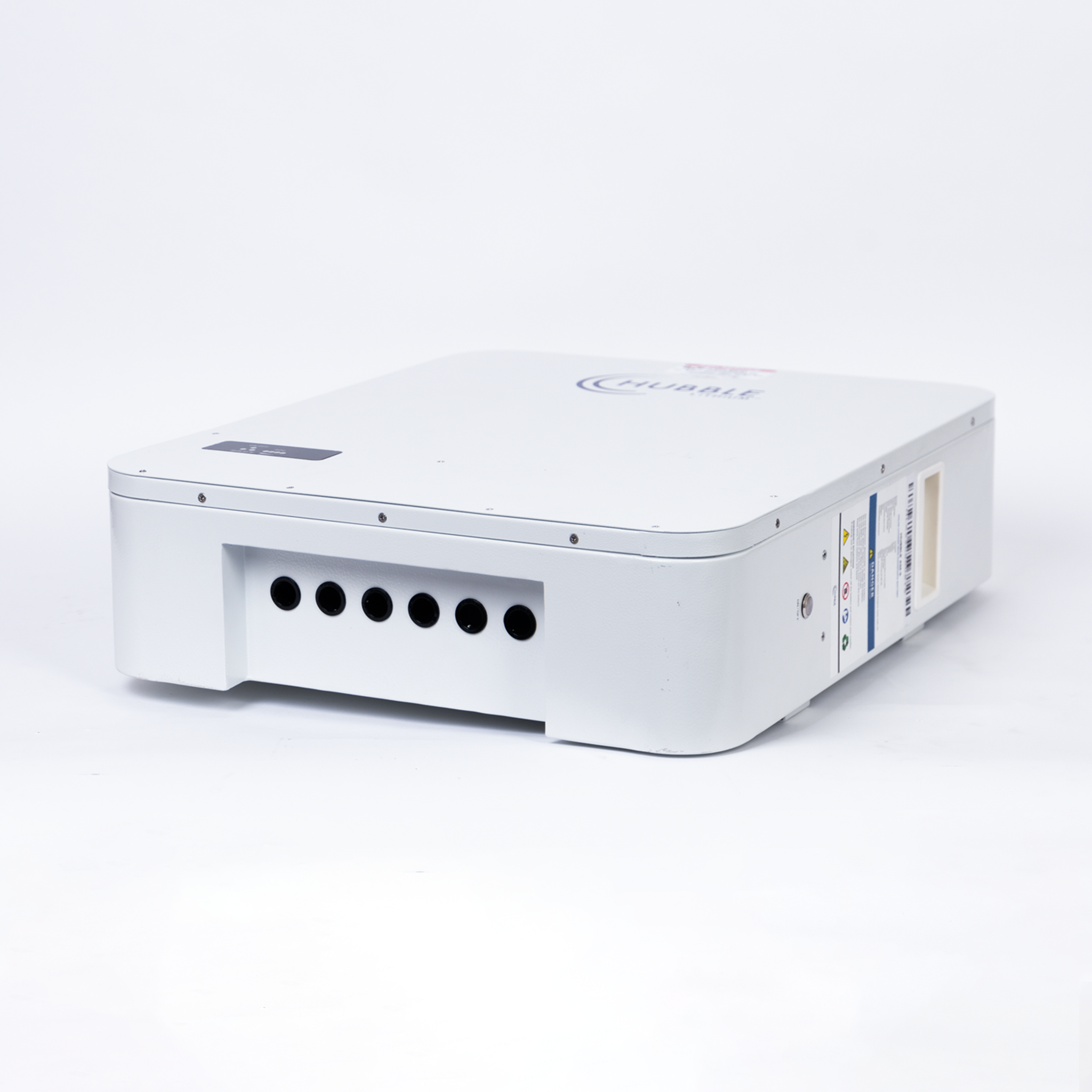

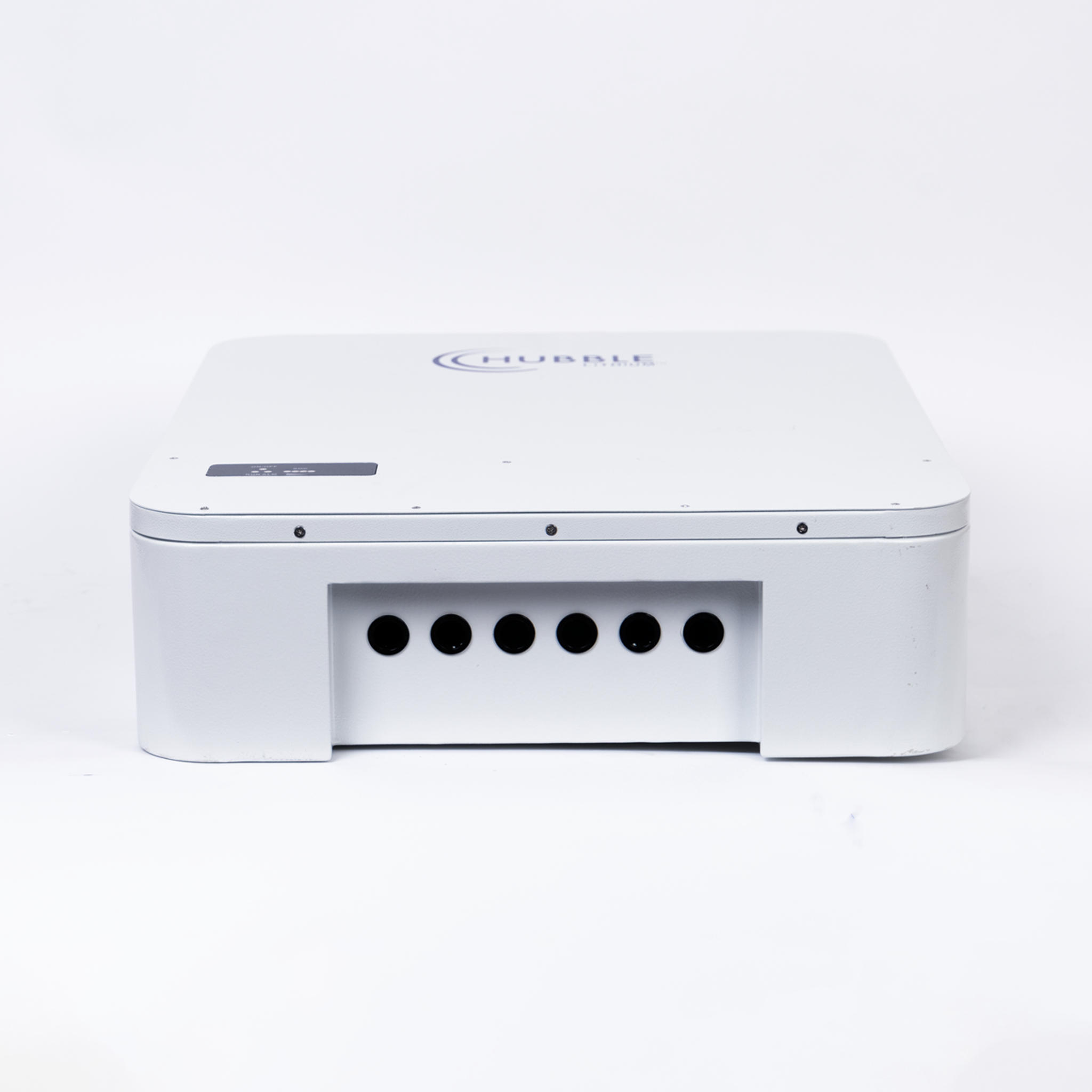

Hubble AM-5 5.12kW 51.2V LiFePO4 Battery
Original price was: R20999,00.R19209,00Current price is: R19209,00.
Hubble Lithium’s AM-5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.
In Stock with Supplier
Hubble AM-5 5.12kW 51.2V LiFePO4 Battery
High-Performance, Long-Life Lithium Energy Storage
The Hubble AM-5 5.12kW 51.2V LiFePO4 Battery is designed for exceptional reliability, high performance, and seamless integration with leading inverter brands. Built with advanced prismatic LiFePO₄ cells and an intelligent Battery Management System (BMS), the AM-5 offers high energy density, excellent temperature performance, and a 15-year design life. With support for up to 8 parallel units, it’s ideal for residential, commercial, and industrial solar energy storage systems.
Features
-
Long Lifecycle – ±15 years design life and unlimited cycles within the 10-year warranty (Ts & Cs apply)
-
High Performance – 1C continuous charge/discharge at 100A
-
Scalable – Parallel up to 8 packs with full communication
-
Advanced BMS – Built-in voltage, current, and temperature protection with current limiting
-
Versatile Installation – Wall mount or shelf rack ready with heavy-duty side handles
-
High Compatibility – Fully integrates via CAN Bus with leading inverter brands
-
Cloud Monitoring – Hubble Cloudlink ready for remote monitoring
-
Reliable in Extreme Conditions – Excellent high-temperature performance and low self-discharge
Specifications
| Specification | Details |
|---|---|
| Rated Capacity (5HR) | 100Ah |
| Nominal Voltage | 51.2V |
| Design Capacity | 5.12kWh |
| Equalized Charge Voltage | 55.2V |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| C Rating | 1C |
| Weight | Approx. 51kg |
| Monitoring | Hubble Cloudlink |
| Parallel Capability | Up to 8 packs with full communication |
| Dimensions (W × D × H) | 509.62 × 173 × 599.67 mm |
| Ports | CAN-bus, Battery Link Ports |
| Cell Type | Prismatic LiFePO₄ |
| Design Life | ± 15 years |
| Cycle Life | Unlimited cycles within 10-year warranty (Ts & Cs apply) |
| Certifications | CE, IEC, UN38.3 |
| Outer Case | White bake lacquer steel |
| Operating Temp (Charge) | -10°C to +50°C |
| Humidity | 15% to 75% |
| Storage Temperature | 10°C to +50°C |
| Protection | Electronic circuit breaker, BMS voltage & current limiting |
| Compatible Inverter Brands | Sunsynk, Victron, Deye, Voltronic (Kodak, Mecer, Synapse, Phocos), Goodwe, MLT, Microcare, Luxpower, Megarevo |
What's in the Box
-
1 × Hubble AM-5 5.12kWh 51.2V LiFePO₄ Battery
-
User & installation guide
