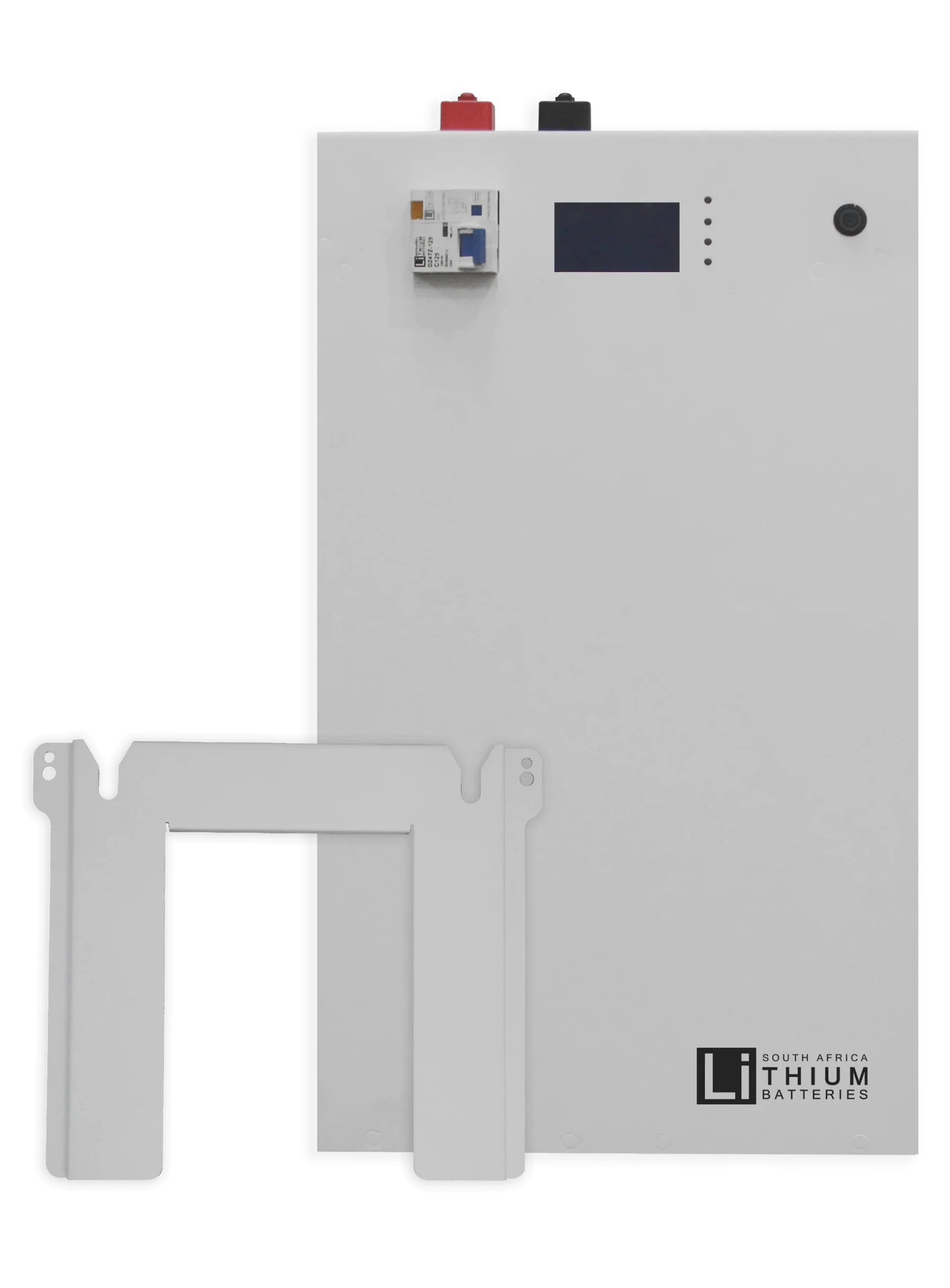

LBSA 25.6v 2.6kWh LifePO4 Battery
Original price was: R13349,00.R11249,00Current price is: R11249,00.
The LBSA Lithium Iron Phosphate (LiFePO₄) battery pack is a reliable low-voltage 51.2V energy storage solution designed for home use. Compatible with popular inverters like Victron, Growatt, Sunsynk, and DEYE via CAN Bus communication, it supports safe and efficient power delivery with a recommended 50A charge/discharge rate per unit. Ideal for scalable parallel setups in residential solar systems.
In Stock with Supplier
LBSA 25.6v 2.6kWh LifePO4 Battery
Reliable 24V Energy Storage with Long Cycle Life
The LBSA 25.6v 2.6kWh LifePO4 Battery is built for dependable performance and compatibility with leading inverter brands. Designed with a 10-year warranty and up to 9,000 cycles shown on the BMS display, it provides an ideal long-term solution for 24V backup and off-grid applications.
With intelligent CAN Bus communication, robust protection systems, and the ability to parallel multiple units, this battery delivers both flexibility and safety for residential and small-scale commercial installations.
LBSA lithium iron phosphate (LiFePO4) battery pack is a household
renewable energy storage solution developed and produced by Lithium Batteries SA. After full installation, it is a low-voltage DC battery system with an operating voltage of 51.2V, and works with a low-voltage inverter to realize the goal of energy storage for home application.
BATTERY USER MANUAL
Click on the inverter below to view our battery on their "Approved battery" list.
 |
 |
 |
 |
 |
 |
LUXPOWER APPROVED LIST
DEYE APPROVED LIST
SUNSYNK APPROVED LIST
BATTERY USER MANUAL
2.6KW Max Continuous Load
Key Features
-
Long Lifespan: 10 years or 4,500 cycles (BMS display shows up to 9,000 cycles)
-
Wide Inverter Compatibility: Works with Victron, Growatt, Sunsynk, and Deye via CAN Bus
-
Scalable Storage: Parallel connection supported for increased capacity and current handling
-
Smart Protection: Built-in over-voltage, under-voltage, over-temperature, low-temperature, over-current, and short-circuit protection
-
Optimized Charging: Bulk + Absorption at 28V, Float at 28V
-
User-Friendly Display: Real-time status alerts and warnings for safe operation
Technical Specifications
| Specification | Details |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Energy | 2.6kWh |
| Chemistry | LiFePO₄ |
| Cycle Life | 4,500 cycles (10 years) / 9,000 cycles shown on BMS |
| Warranty | 10 Years |
| Bulk + Absorption Voltage | 28V |
| Float Voltage | 28V |
| Low Voltage Cut-Off | 22V |
| Max. Continuous Charge/Discharge Current | 75A (Recommended: 50A) |
| Parallel Charging Current | (50 × Units in parallel) / 2 |
| Parallel Discharge Current | 100A × Units in parallel |
| Communication | CAN Bus (Victron, Growatt, Sunsynk, Deye) |
| Display Alerts | OV Warn/Prot, UV Warn/Prot, OT Warn/Prot, UT Warn/Prot, OC Warn/Prot, CAPA Warn, OFF-USE, SCP |
| Protection Functions | Over-voltage, under-voltage, over-temperature, low-temperature, over-current, short-circuit |
| Operating Temperature | Not specified |
| Mounting | Not specified |
