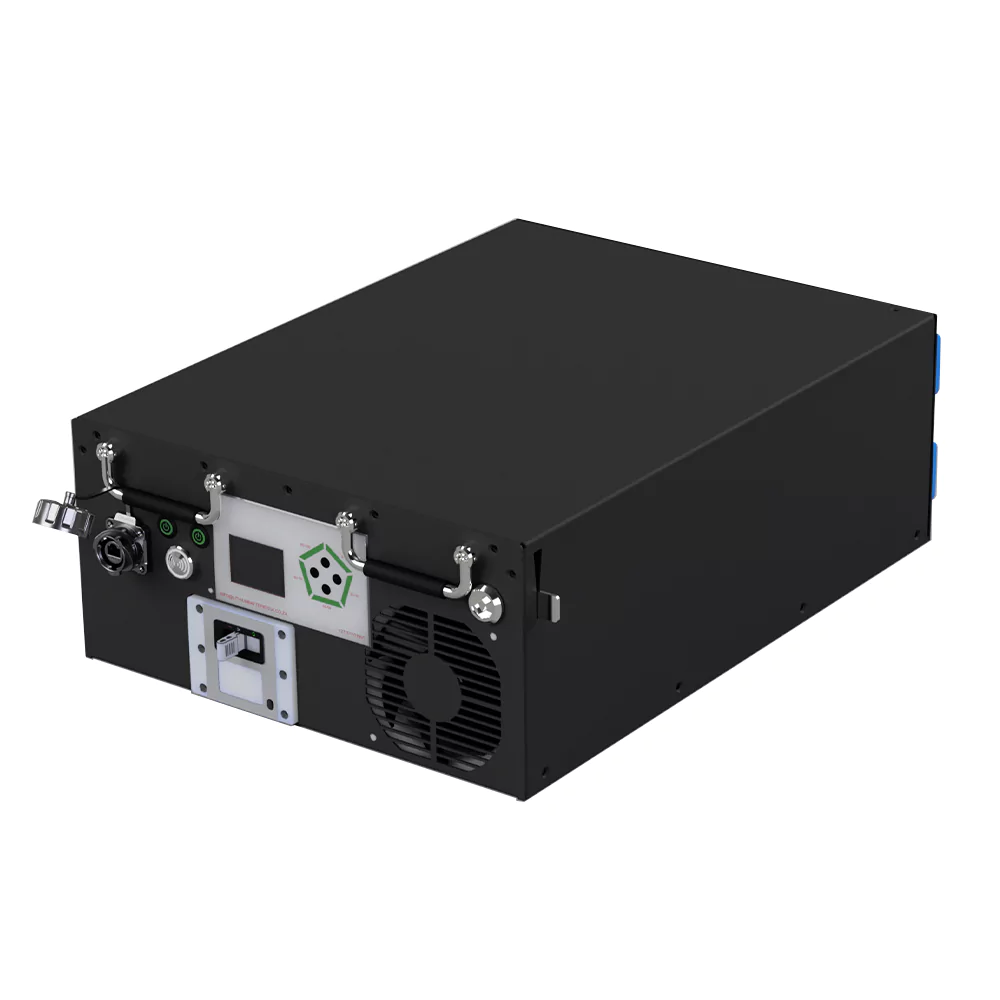

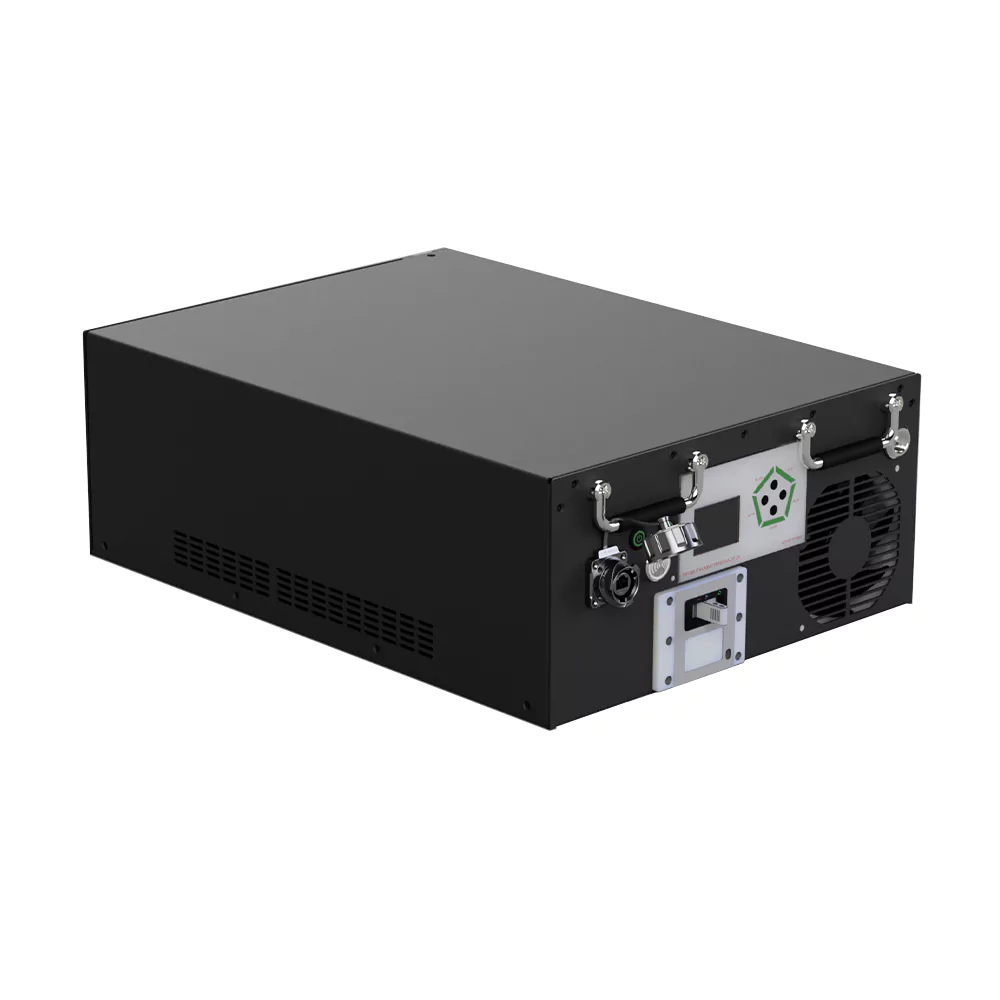

LBSA HV Controller Rack Mount

LBSA HV Controller Rack Mount

HV-104WFRE Battery
Introducing the HV-104WFRE battery, a locally engineered and manufactured LiFePO4 battery energy storage solution that combines advanced technology with superior safety features. Designed for scalability and reliability, the HV-104WFRE is ideal for a wide range of high-demand energy storage applications.

Details:

• Scalable to Megawatt Capacity: Stackable from a minimum of 23.9 kWh to 111.8 kWh and can be paralleled up to 60 stacks to expand your system and scale as needed.

• Advanced Air-Cooling: Equipped with a state-of-the-art air-cooling system, the HV-104WFRE maintains optimal operating temperatures to ensure peak performance and extend battery life, even in demanding environments.

• Fire Safety: The integrated fireblock in the LBSA HV Controller Rack Mount provides enhanced fire suppression, ensuring an additional layer of safety and protection for your energy storage system.

• Local Engineering and Manufacturing: Proudly developed and produced locally, the HV-104WFRE battery reflects high standards of quality and reliability, tailored to meet the needs of local businesses, farms, and high-demand residential sites.

Electrical Specifications:

• Bulk + Absorption: 84.3V

• Float: 84.3V

• Low Voltage Cut Off: 66V

• Charge for parallel units: (90A × Units in parallel)

• Discharge for parallel units: (100A × Units in parallel)

Warranty:
The HV-104WFRE offers a 10-Year Warranty / 6000 Cycles, with an expected 20–30 year service life.

Key Features:

• Cable-free power and communication for easy installation

• Click connectors for fast setup

• Simple slide-in cabinet design

• Optimized smart air cooling

• Hot-swap feature allowing hassle-free module replacement with automated smart balancing between modules

• Concealed main cable compartment

Modules Basic Parameters:

• Module nominal voltage (V): 76.8V

• Module Nominal Capacity (Ah): 104Ah

• Module Nominal Power (kWh): 7.98kWh

• Dimensions (mm) Assembled: 444.6 × 723.5 × 1648.3

• Weight: ±65kg

• Discharge Cut-off Voltage (V): 66V

• Charge Voltage (Bulk + Absorption) (V): 84.3V

• Max Continuous Discharge Current (A): 100A

• Max Discharge Current (60 Seconds): 200A

• Max Continuous Charge Current (A): 100A

• Max Charge Current (A) (60 Seconds): 200A

• Communication Interface: CAN

• Configuration: 24S

• Operating temperature: 0–45°C

• Cell Chemistry: Lithium Iron Phosphate (LiFePO4)

• Number of modules: Minimum 4, Maximum 14

• Cycle life: ≥80% Capacity state after 4800 cycles at 0.5C, 25 °C, 100% DOD
