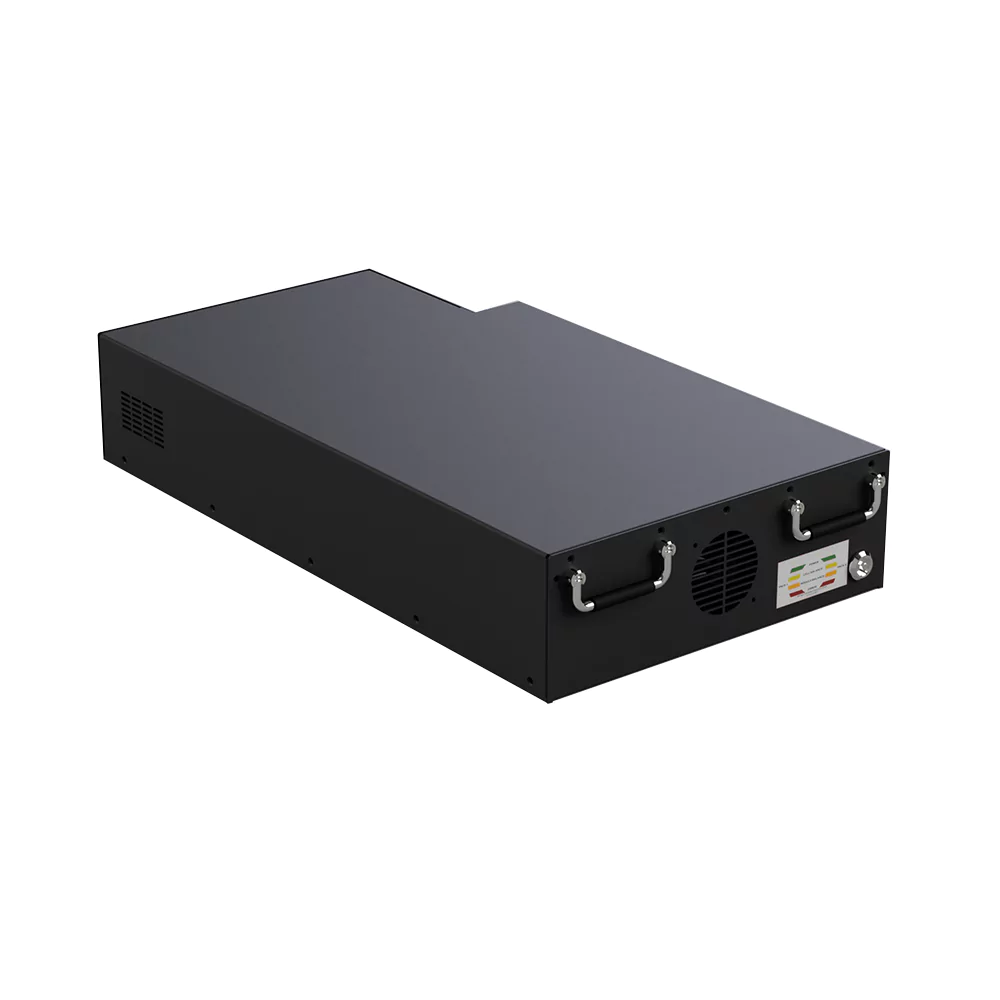

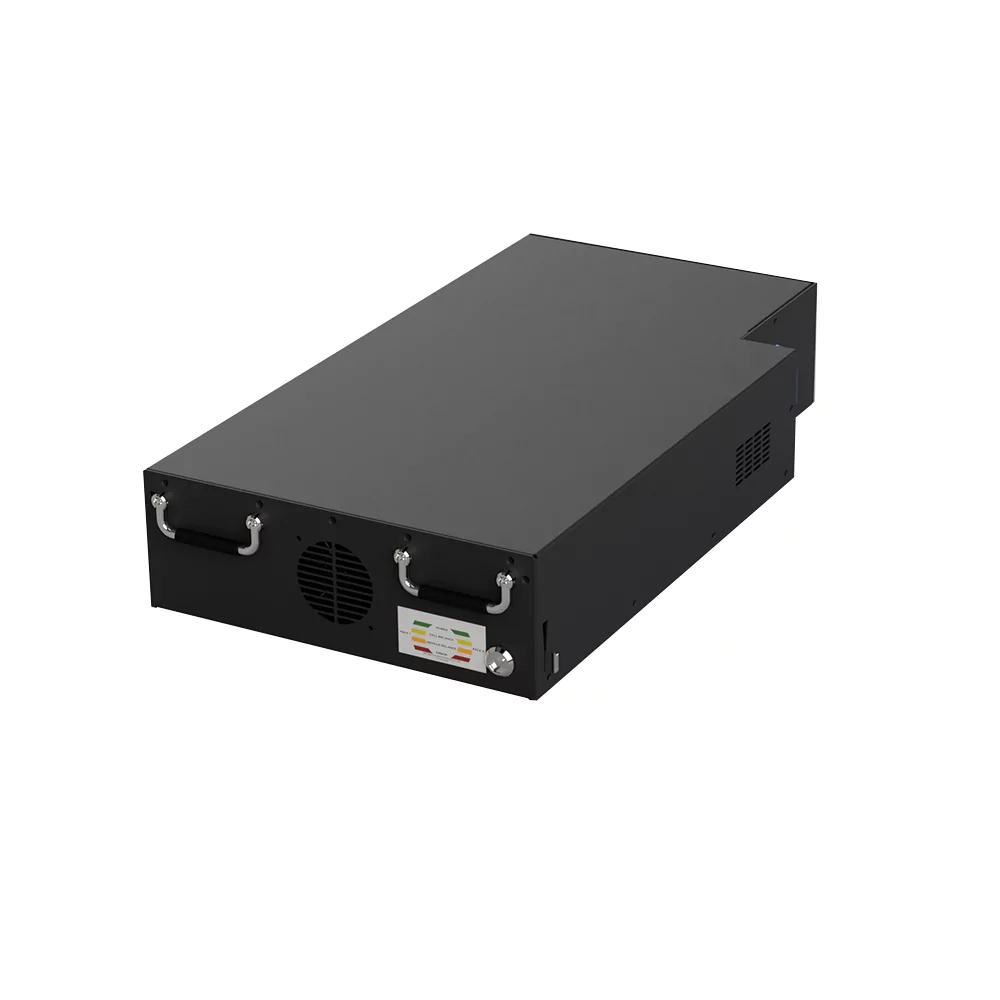

LBSA HV Module 7.98kWh Rack Mount
Original price was: R29999,00.R24199,00Current price is: R24199,00.
The LBSA HV-104-14WFRE is a high-performance, modular lithium iron phosphate (LiFePO₄) battery system designed for easy scalability, safety, and efficiency. Featuring no-connection stacking, advanced thermal control, IP67-rated connectors, and up to 60 units in parallel without a controller, it delivers up to 7.98kWh per module with 6000-cycle longevity and hot-swap capability. Ideal for large-scale energy storage with simple slide-in installation and smart air cooling.
In stock
SKU: HV-104-WFRE Module
CONCEALED MAIN CABLE COMPARTMENT
IP67 rated communication and power connections.
COMMUNICATION FAIL-OVER
If a battery fails, communication continues to work from one of the other batteries ensuring no single point of failure.
BATTERY MEASUREMENTS
The total system height is: 1648.3 mm, with a width of 723.5 mm & a depth of 444.6 mm.
EASY MODULE REPLACEMENT
Easy module replacement with built-in module balancing.
AIR-COOLED
Each module has its own air cooling system for heat dissipation.
BATTERY HOT ADDING
Active battery synchronizing for both charge and discharge.
NO-CONNECTION STACKING
This easy, no-connection stacking design ensures a simple, fast, and safe commissioning of batteries.
ADVANCED THERMAL CONTROL
With a built-in DC inverter, the battery can cool itself down in high-temperature environments and heat itself in cold-temperature environments.
UP TO 60 UNITS IN PARALLEL
Add up to 60 units in parallel without a master/controller.
Details:
- Bulk + Absorption: 84.3V
- Float: 84.3V
- Low Voltage Cut Off: 66V
- Charge for parallel units: (90A*Units in parallel)
- Discharge for parallel units: (100A*Units in parallel)
Warranty:
The LBSA HV-104-14WFRE Offers a 10 Year Warranty / 6000 Cycles, (20-30 Year Service Life
Key Features:
- Cable free Power and Communication easy
- Click Connectors
- Simple slide in cabinet
- Optimized smart air cooling
- Hot swap feature (Allowing hassle free module replacement with automated smart balancing between modules.)
- Concealed main cable compartment
Modules Basic Parameters:
- Module nominal voltage (V): 76.8V
- Module Nominal Capacity (Ah): 104Ah
- Module Nominal Power (kWh): 7.98kWh
- Dimensions (mm) Assembled: 444.6 x 723.5 x 1648.3
- Weight: +- 65kg
- Discharge Cut-off Voltage (V): 66V
- Charge Voltage (Bulk + Absorption) (V): 84.3V
- Max Continuous Discharge Current (A): 100A
- Max Discharge Current (60 Seconds): 200A
- Max Continuous Charge Current (A): 100A
- Max Charge Current (A) (60 Seconds): 200A
- Communication Interface: CAN
- Configuration: 24S
- Operating temperature: 0 - 45 °C
- Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
- Number of modules: Minimum 4, Maximum 14
- Cycle life: ≥80% Capacity state after 4800 cycles at 0.5C, 25 °C, 100% DOD
