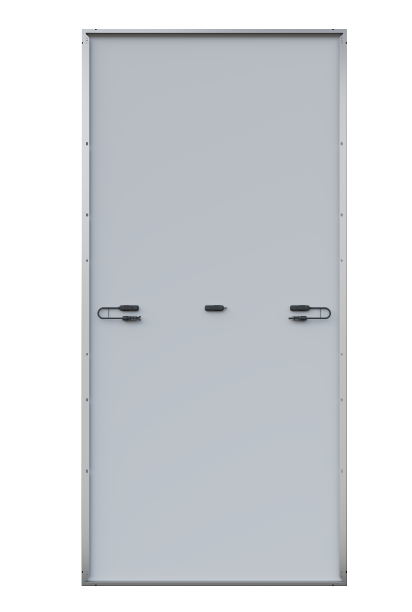

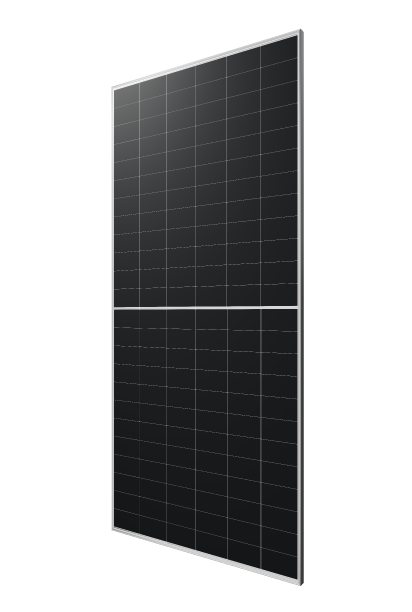

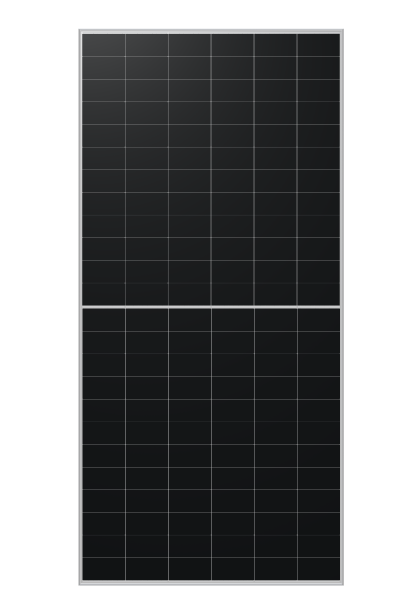

Longi Solar 600W Mono-Facial Panel

Description
The Longi Solar 600W Mono-Facial Panel is a high-performance solar module engineered for maximum energy efficiency and long-term reliability. Using advanced monocrystalline technology, it delivers exceptional output and stability, making it ideal for residential, commercial, and utility-scale solar installations. Built to withstand extreme weather and environmental conditions, this panel ensures optimal performance and a strong return on investment.

Key Features:

• High Power Output: 600W rated power for superior energy production

• Monocrystalline Technology: Delivers excellent efficiency and reliability

• Durable Build: Robust aluminum alloy frame ensures long-lasting performance

• Weather Resistant: Tested for extreme snow (5400Pa) and wind (2400Pa) loads

• Stable Performance: Low temperature coefficient reduces efficiency loss in high heat

• Easy Installation: Standard sizing allows versatile mounting options

Product Specifications:

• Power Output: 600W

• Cell Type: High-efficiency monocrystalline cells

• Weight: ~31.8 kg

• Dimensions: 2278 × 1134 × 30 mm

• Junction Box: IP68 rated

• Frame: Anodized aluminum alloy

• Connector Type: MC4 compatible

• Pallet Packaging: 36 pcs/pallet | 144 pcs/20GP | 720 pcs/40HC

Electrical Performance (STC Test):

• Maximum Power (Pmax): 600 W

• Open-Circuit Voltage (Voc): ~52.4 V

• Short-Circuit Current (Isc): ~14.6 A

• Peak Power Voltage (Vmp): ~44.0 V

• Peak Power Current (Imp): ~13.7 A

Electrical Performance (NOCT Test):

• Maximum Power (Pmax): ~460 W

• Open-Circuit Voltage (Voc): ~49.8 V

• Short-Circuit Current (Isc): ~11.7 A

• Peak Power Voltage (Vmp): ~41.8 V

• Peak Power Current (Imp): ~11.0 A

Mechanical Load Capacity:

• Front Load (snow & wind): 5400 Pa

• Back Load (wind): 2400 Pa

• Hail Test: 25 mm at 23 m/s

Temperature Coefficients (STC Test):

• Isc: +0.045%/℃

• Voc: -0.230%/℃

• Pmax: -0.280%/℃

Ultimate Efficiency with Outstanding Performance

Market-Leading Reliability

Minimalist aesthetics

Hi-MO X6 Max simplifies the complexity and redefines the aesthetic concept of photovoltaic modules

Extended Warranty

Extra long warranty maximizes product reliability.

Mechanical Parameters:

• Layout: 144（6X24）
• Junction box: Split junction box, IP68
• Weight: 28.5kg
• Size: 2382X1134X30mm
• Packaging: 36 pcs./pallet 144 pcs./20GP 720 pcs./40HC 720 pcs./13.5m FR 1008 pcs./17.5m FR

Electrical Performance Parameters (STC Test):

Module model	LR7-72HTH-600M
Maximum power (Pmax/W)	600
Open-circuit voltage (Voc/V)	52.72
Short circuit current (Isc/A)	14.93
Peak power voltage (Vmp/V)	44.48
Peak power current (Imp/A)	13.94

Electrical Performance Parameters (NOCT Test):

Module model	LR7-72HTH-600M
Maximum power (Pmax/W)	463.4
Open-circuit voltage (Voc/V)	49.59
Short circuit current (Isc/A)	12.06
Peak power voltage (Vmp/V)	40.59
Peak power current (Imp/A)	11.42

Mechanical Load Capacity

• Maximum static load on the front (such as snow and wind): 5400Pa
• Maximum static load on the back (such as wind): 2400Pa
• Hail test: Diameter 25 mm, impact speed 23 m/s

Temperature Coefficient (STC test)

• Temperature coefficient of short circuit current (Isc): +0.050%/℃
• Temperature coefficient of open circuit voltage (Voc): -0.23%/°C
• Temperature coefficient of peak power (Pmax): -0.29%/°C

Datasheet
