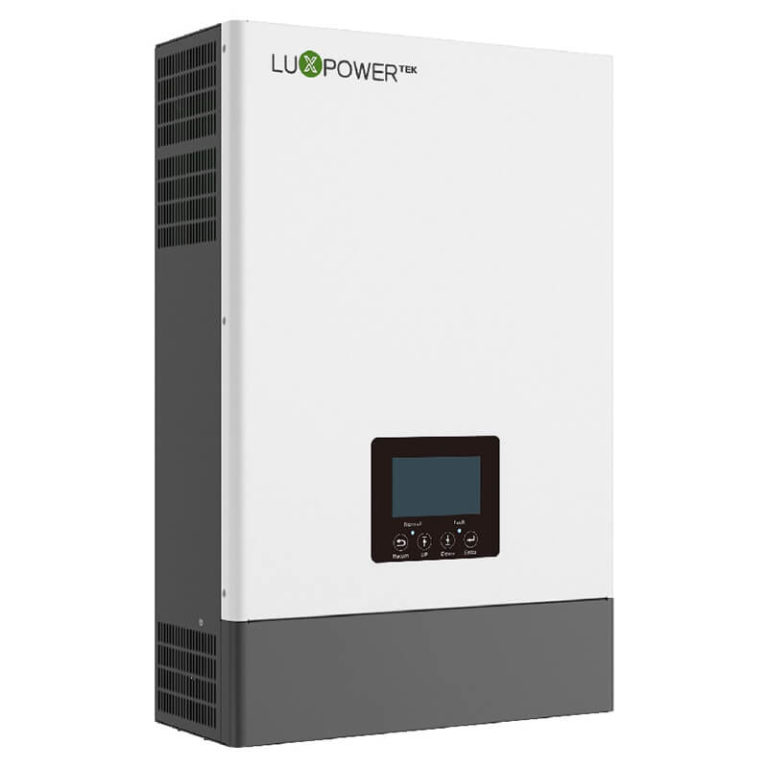

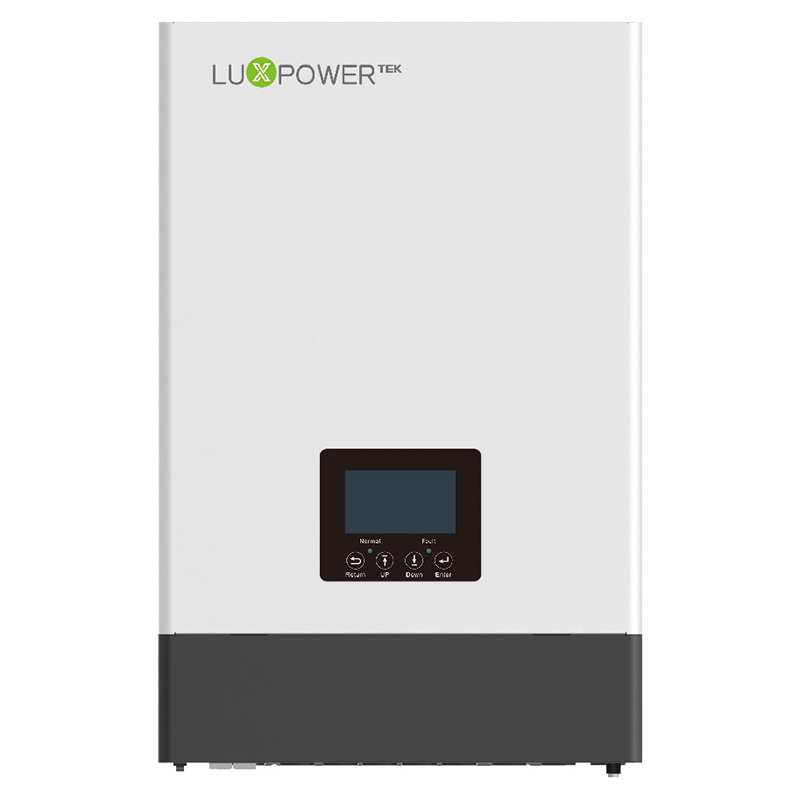

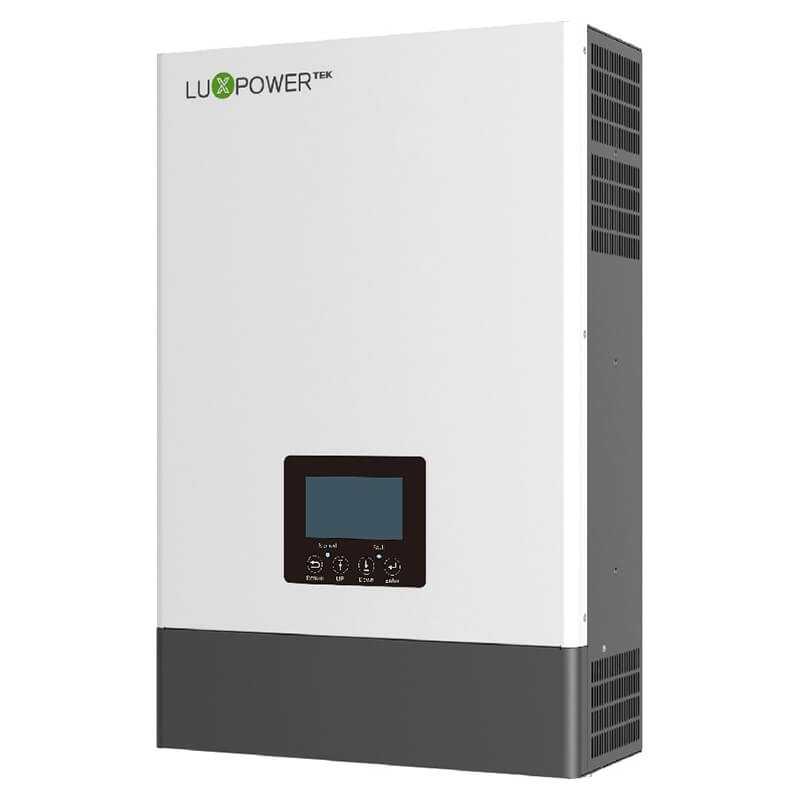

Lux Power 5KW OFFGRID Inverter
In stock at warehouse (2-3 days Processing)
- Applicable for pure off grid/ backup power / self-consumption / on grid situation
- Integrated with 2 MPPT solar charge controllers, MPPT ranges 120V~385V
- Rated power 5KW, power factor 1
- Be able to run with or without battery in On-grid and Off-grid mode
- With separated generator input interface, able to control generator remotely
- Solar and utility grid can power loads at the same time
- With integrated advanced parallel function, up to 9 pcs max paralleling
- Support CAN/RS485 for Li-ion battery BMS communication
- WIFI/ GPRS remote monitoring included, setting and firmware update, support website, free IOS/Android APP
R9,789.00 R10,489.00 incl Vat
In stock at warehouse (2-3 days Processing)
CompareDescription
Output
• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave
Battery
• Battery Type Supported: Lithium / Lead-Acid
• Normal Voltage: 51.2VDC / 48VDC
• Maximum Charging Voltage: 59VDC
Solar
• Maximum PV Power: 3200W / 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A / 13A
Grid
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz / 60Hz (Auto Sensing)
Environment Limit
• Ingress Protection: IP20
• Relative Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: 0°C to +50°C
• Storage Temperature: -15°C to +60°C
• Communication: CAN / RS485/ WIFI / GPRS
| Weight | 14 kg |
|---|---|
| Dimensions | 51 × 33 × 13.5 cm |
| Brand | Lux Power |
| Colour | White |
| Warranty | 5 Years |
