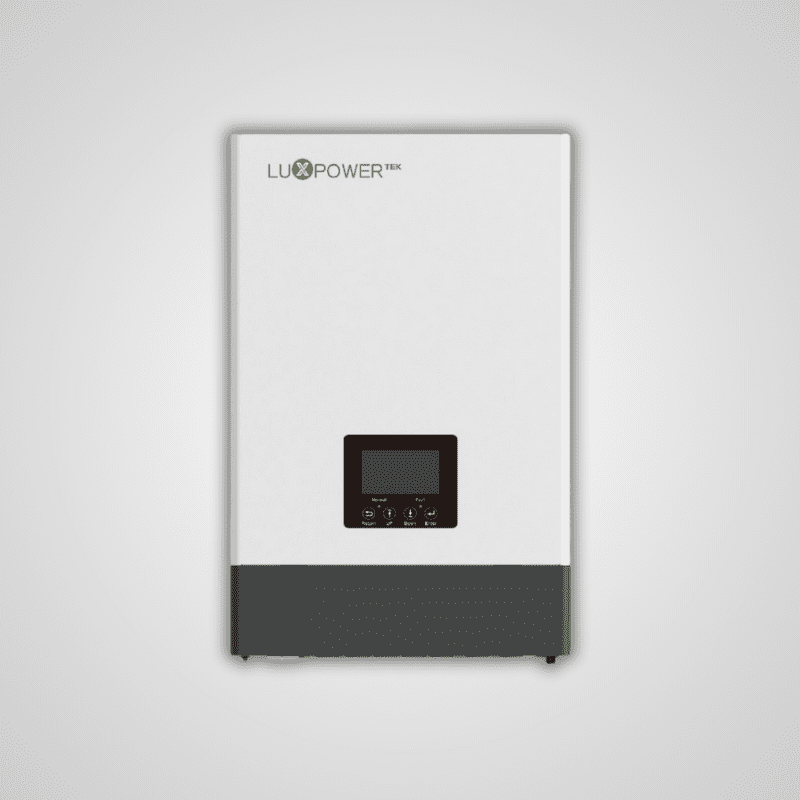

Luxpower SNA6000 Inverter – 6kW Off-Grid Hybrid Inverter

The Luxpower SNA6000 Inverter is a versatile 6kW solar inverter designed for both off-grid and hybrid solar systems. Compatible with lithium and lead-acid batteries, it delivers high power output and maximum flexibility for residential and commercial solar installations. With a built-in MPPT charge controller and scalable design supporting up to 16 units in parallel, it maximizes energy efficiency and ensures stable electricity for all loads.

This inverter includes a separate generator port and supports single-phase or unbalanced three-phase systems. Its robust design, high PV input capability, and lithium battery compatibility make it ideal for reliable, long-term solar energy management.

Key Features:

• Pure off-grid and hybrid working modes for flexible energy solutions

• High-power 6kW output to meet demanding load requirements

• Compatible with lithium-ion and lead-acid batteries

• Built-in MPPT solar charge controller for efficient power conversion

• Scalable: Supports up to 16 units in parallel for larger systems

• Maximum PV array power: 8000W

• Single-phase or unbalanced 3-phase output

• Separate generator port for added versatility

Technical Specifications:

• Input (PV DC): SNA 6000W

• Max PV Array Power: 8000W (4000/4000)

• Rated PV Input Voltage: 320V

• Independent MPPT Inputs: 2

• PV Input Voltage Range: 100–480V

• MPPT Voltage Range: 120–385V

• Start-up Voltage: 100V

• Max PV Input Current per MPPT: 17/17A

• Max PV Short-Circuit Current per MPPT: 25/25A

• Battery Type: Lithium-ion / Lead-Acid

• Rated Battery Voltage: 48V

• Battery Voltage Range: 38.4–60V

• Max Charging / Discharging Current: 140A

• Max Charging / Discharging Power: 6000W

• Cooling Method: Fan

• Dimensions (WHD): 330 x 505 x 135 mm

• Weight: 14.5 kg

• Warranty: 2 Years

.​
