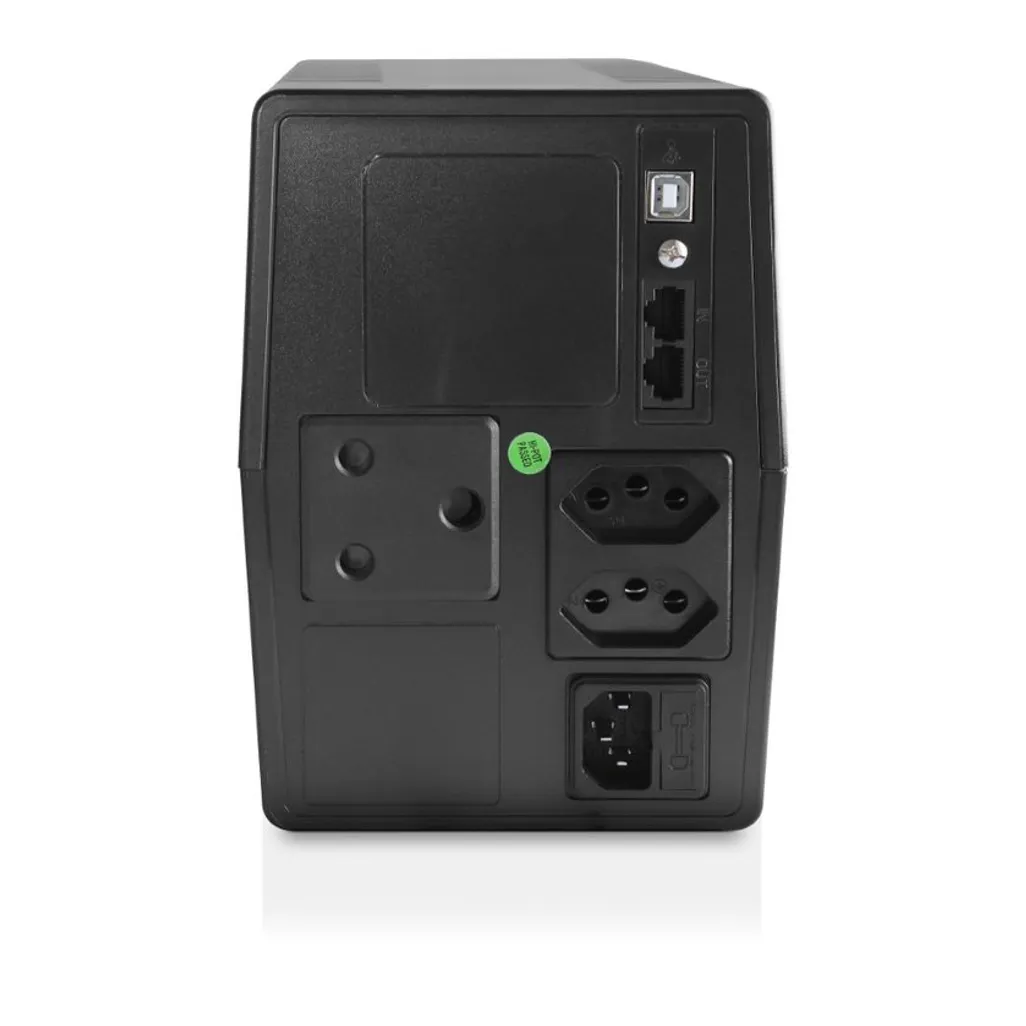

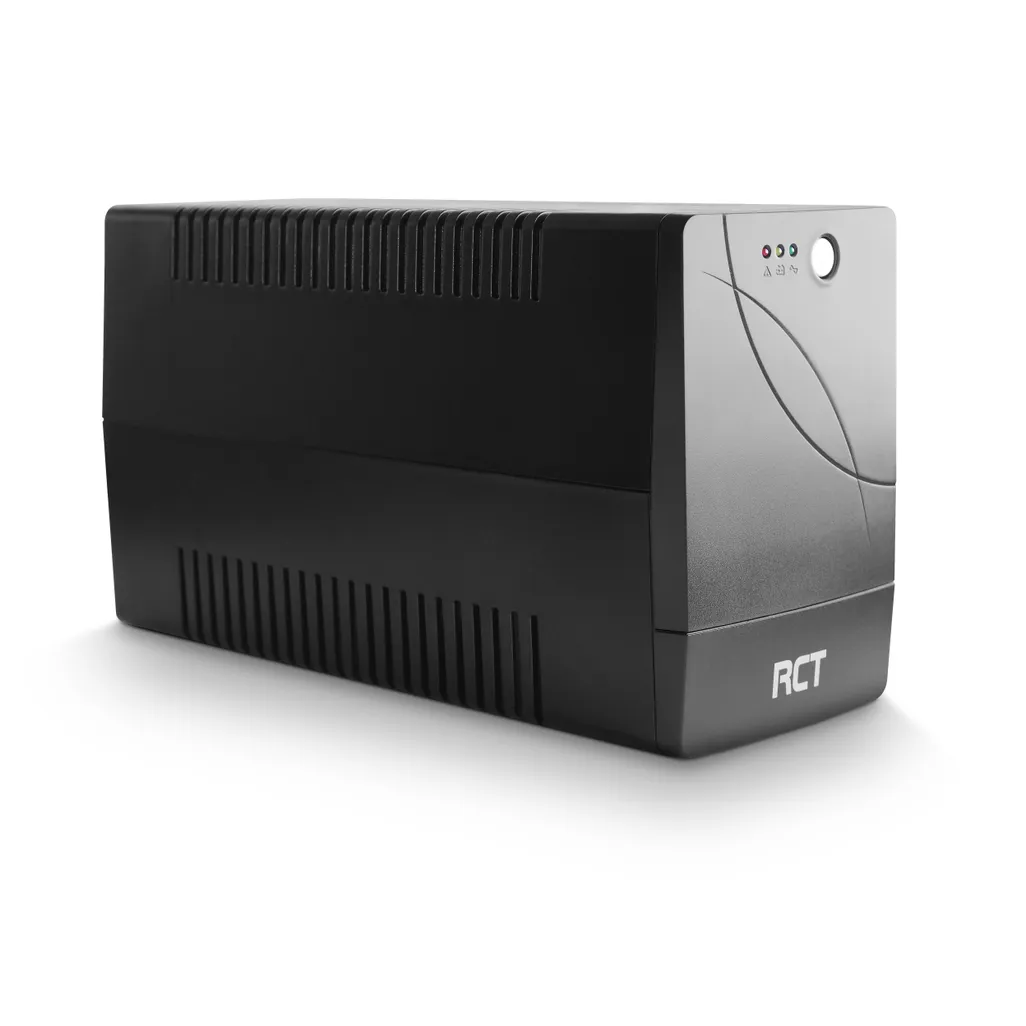

RCT 1000VA Line-Interactive UPS 600W

Features:

Rct-1000va

• Fast charging in 4 hours
• built-in excellent microprocessor controller
• boost and buck avr for voltage stabilization
• free monitoring software download

Model - rct-1000va
Capacity - 1000 va / 600 w

Input

• Voltage - 110/120 vac or 220/230/240 vac
• Voltage range - 81-145 vac / 162-290 vac
• Frequency range - 60/50 hz (auto sensing)

Output

• Output voltage - 110/120 vac or 220/230/240 vac
• Ac voltage regulation (batt. Mode) - ±10%
• Frequency range (batt. Mode) - 60 hz or 50 hz ±1 hz
• Transfer time - typical 2-6 ms, 10ms max.
• Waveform (batt. Mode) - simulated sinewave

Battery
Battery type & number - 12 v/7 ah x 2
Typical recharge time - 4-6 hours recover to 90% capacity

Protection
Full protection - overload, discharge, and overcharge protection

Indicators

• Ac mode - green lighting
• Battery mode - yellow flashing
• Fault - red lighting

Alarm

• Battery mode - sounding every 10 seconds
• Low battery - sounding every second
• Overload - sounding every 0.5 second
• Battery replacement alarm - every 2 seconds
• Fault - continuously sounding

Physical

• Dimension, d x w x h (mm) - 350 x 146 x 160
• Net weight (kgs) - 8.0

Management

• Usb port -
• Supports windows2000/2003/xp/vista/2008, windows 7, linux, unix, and mac

Specifications:

©2025 Respective owners and brand holders. This table has been carefully researched and generated by Techspertz (Pty) Ltd (//techspertz.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RCT-1000VAS
Technology Type	Line Interactive
Power Rating	1,000 VA
Maximum Load	600 watts
Output Voltage (max)	240 Volts
Physical Dimensions
Height	160 mm
Width	146 mm
Depth	350 mm
Weight	8 kg
