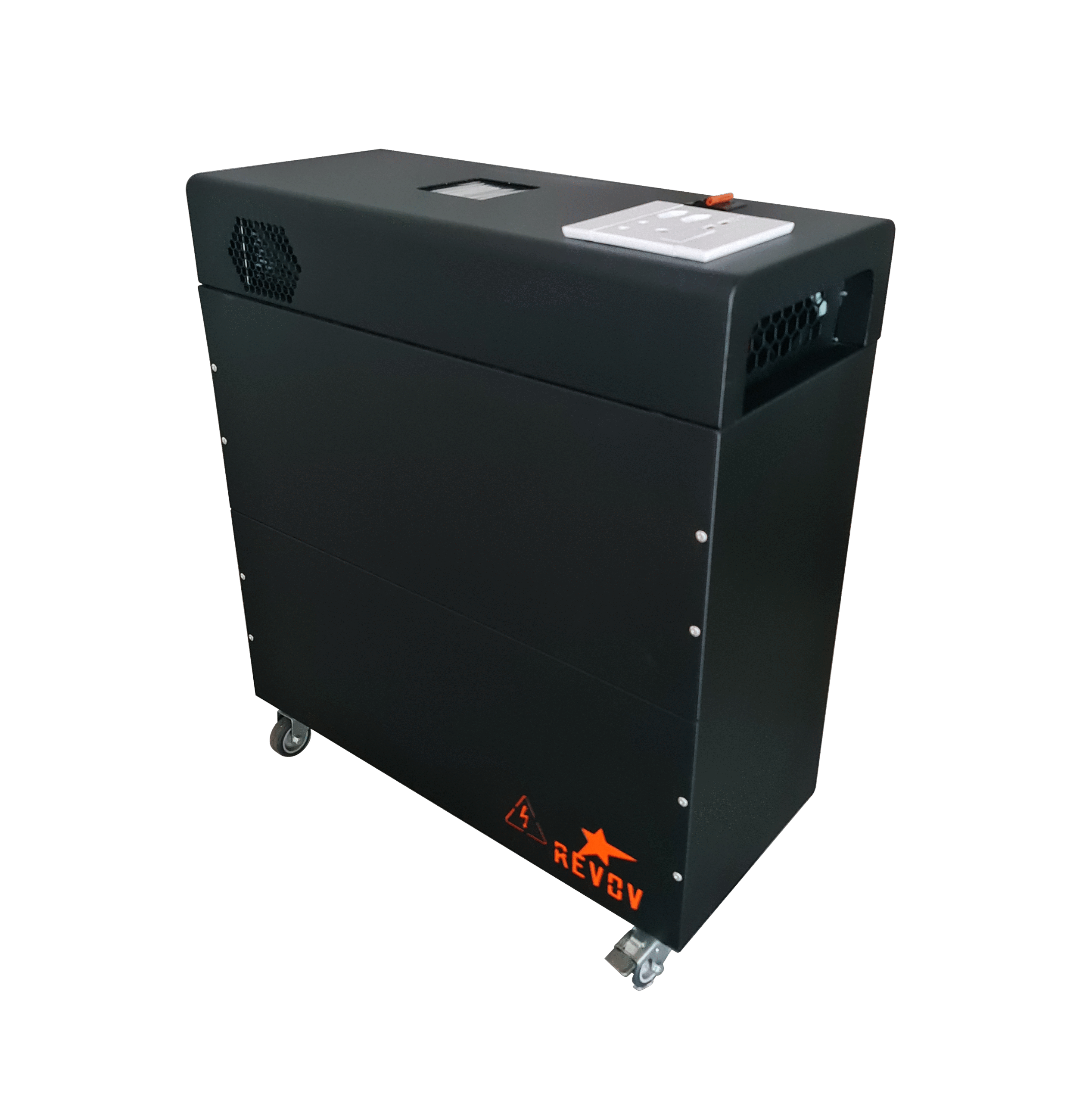

REVOV ATOM 2kVA 200Ah Portable Pure Sine Wave UPS

Stay powered anywhere, anytime with the REVOV ATOM 2kVA 200Ah Portable Pure Sine Wave UPS. Compact, portable, and powerful, this all-in-one solution provides 5.12kWh of energy storage using 2 x 12.8V 200Ah REVOV LiFePO4 batteries. Whether for home, office, or emergency use, it delivers reliable performance when you need it most.

Designed as a fully integrated backup power supply, the REVOV ATOM features a 2kW inverter, pre-programmed batteries, and a pre-calibrated Battery Management System (BMS). Its pure sine wave output ensures safe and efficient operation of your devices, while the Bluetooth smartphone app allows you to monitor battery performance with ease.

Perfect for loadshedding, off-grid living, and mobile power needs, this unit also functions as a solar generator companion, giving you a clean, maintenance-free alternative to fuel-based power.

Key Features:

• ⚡ 2kVA Pure Sine Wave UPS – Immediate switchover from grid to battery.

• 🔋 5.12kWh Storage Capacity – Powered by 2 x 12.8V 200Ah LiFePO4 batteries.

• 🏠 Compact & Portable Design – Ideal for home, office, and mobile setups.

• 🔌 Multiple Output Options – Includes SA 3-pin socket, USB ports & extension cord support.

• 📱 Bluetooth Smartphone App – Track battery performance & state in real time.

• 🛡️ Pre-Calibrated BMS – Built-in safety with correct fusing and wiring.

• 🌱 Eco-Friendly LiFePO4 Batteries – Long-lasting, safe, and environmentally responsible.

• 🔄 No Maintenance or Fuel Required – Cost-effective and reliable operation.

⚠️ Note: The REVOV ATOM is designed as a mobile UPS system and is not intended for direct integration into household electrical wiring. Must be installed indoors (not IP-rated).

SPECIFICATIONS:

Output

Transfer Time: 20 ms typical
Waveform: Pure Sine Wave
Power Output: 2000W
Max Peak Power Output: 230 VAC

Battery

Battery Voltage: 25.6VDC
Boost Voltage: 28.8VDC ± 0.3VDC
Floating Charge Voltage: 27.4VDC ± 0.3VDC
Max Charge Current (DC): 70A
Full Energy Capacity: 5.12kWh
Usable Energy Capacity: 4.096kWh
Recommended Charge Current (DC): 50A
Available Depth of Discharge: 80%
Maintenance: Charge the battery every
6 months when not in use.

Physical

Dimension (D*W*H) (Metal): 550mm x 270mm x 596mm
Battery Weight: 56kg
