REVOV CUBE 800 All-In-One Backup System

REVOV CUBE 800 All-In-One Backup System

Description

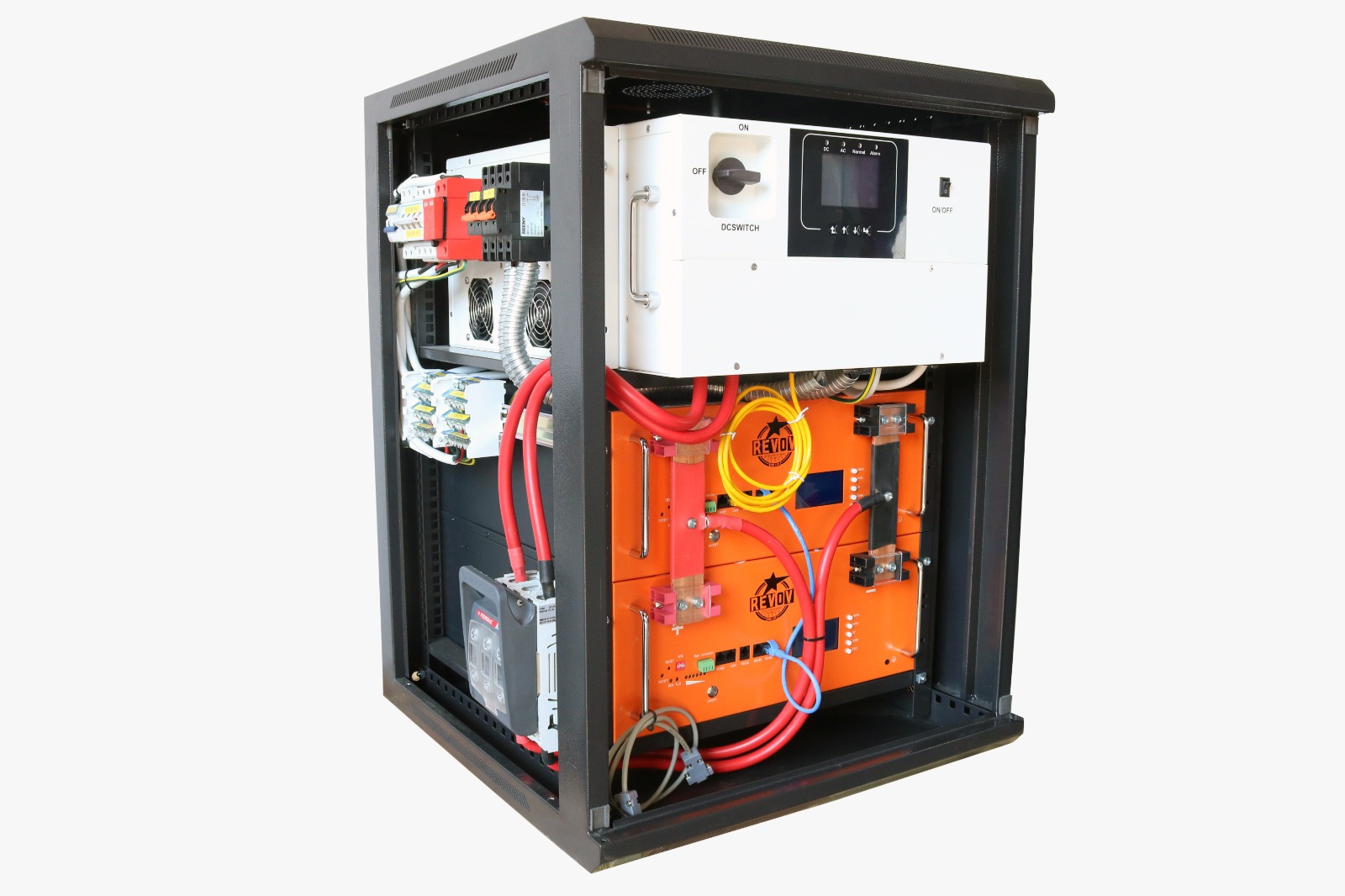

The REVOV CUBE 800 All-In-One Backup System is a compact, solar-ready energy storage solution designed for both homes and small businesses. This fully integrated unit combines a pre-programmed 5kW inverter with a 10.2kWh lithium battery storage capacity, a 7800W MPPT solar charge controller, and a built-in Battery Management System (BMS). With all wiring and fusing pre-installed, the CUBE 800 ensures quick installation, neat design, and reliable performance, making it the ultimate load shedding solution.

This all-in-one power backup system is NRS compliant, delivers pure sine wave AC output for appliance safety, and offers remote monitoring as standard. It stores energy, automatically detects grid status, and seamlessly switches to backup power when the national grid fails. Ideal for homes and small businesses, the REVOV CUBE 800 provides energy security, solar compatibility, and long-lasting durability with a 10-year warranty or 3,500 cycles.

Key Features

• 5kW inverter with 10.2kWh battery storage for reliable home and business backup power

• Compact and fully integrated all-in-one design for easy storage and quick installation

• Pure sine wave AC output ensures safe use with sensitive appliances

• Built-in MPPT solar controller supports up to 7800W input for solar panel integration

• Remote monitoring function for convenient system management

• NRS compliant with built-in protection for daily cycling

• Expandable system with three-phase and parallel configurations available on request (up to 3 CUBE units)

Product Specifications

Output:

• Transfer Time: Max 20ms

• Waveform: Pure Sine Wave

• Power Output: 5000W

• Max Peak Power Output: 12 000W for 10sec

• Voltage: 230V

Battery:

• Nominal Voltage: 51.2VDC

• Nominal Capacity: 200Ah

• Bulk/Absorption Voltage: 55.5V

• Floating Charge Voltage: 54.5V

• Max Charge Current: 60A per Battery

• Energy Capacity: 10.2kWh

• Recommended Charge Current: 60A

• Available Depth of Discharge: 95%

• Maintenance: Charge battery every 6 months when not in use

Solar Charger:

• Max Charging Current: 135A

• System Voltage: 48VDC

• Operating Voltage Range: 100 ~ 500VDC

• Max PV Array Open Circuit Voltage: 500VDC

• Max PV Array Power: 6500W

Dimensions & Weight:

• Dimensions (LxWxH): 600mm x 600mm x 800mm

• Weight: 135kg

Warranty & Notes

• REVOV Batteries (PTY) LTD Warranty: 10 years or 3,500 cycles (1 cycle per day)

• Depth of Discharge (DOD): Safe to discharge to 100% rated 200Ah capacity (battery life shortened if exceeded)

• Charging: Must be charged to 100% each cycle to maintain warranty

• Installation: Must be installed indoors (not IP-rated). A qualified electrician is required for setup, including configuring essential and non-essential circuits with proper AC breakers
