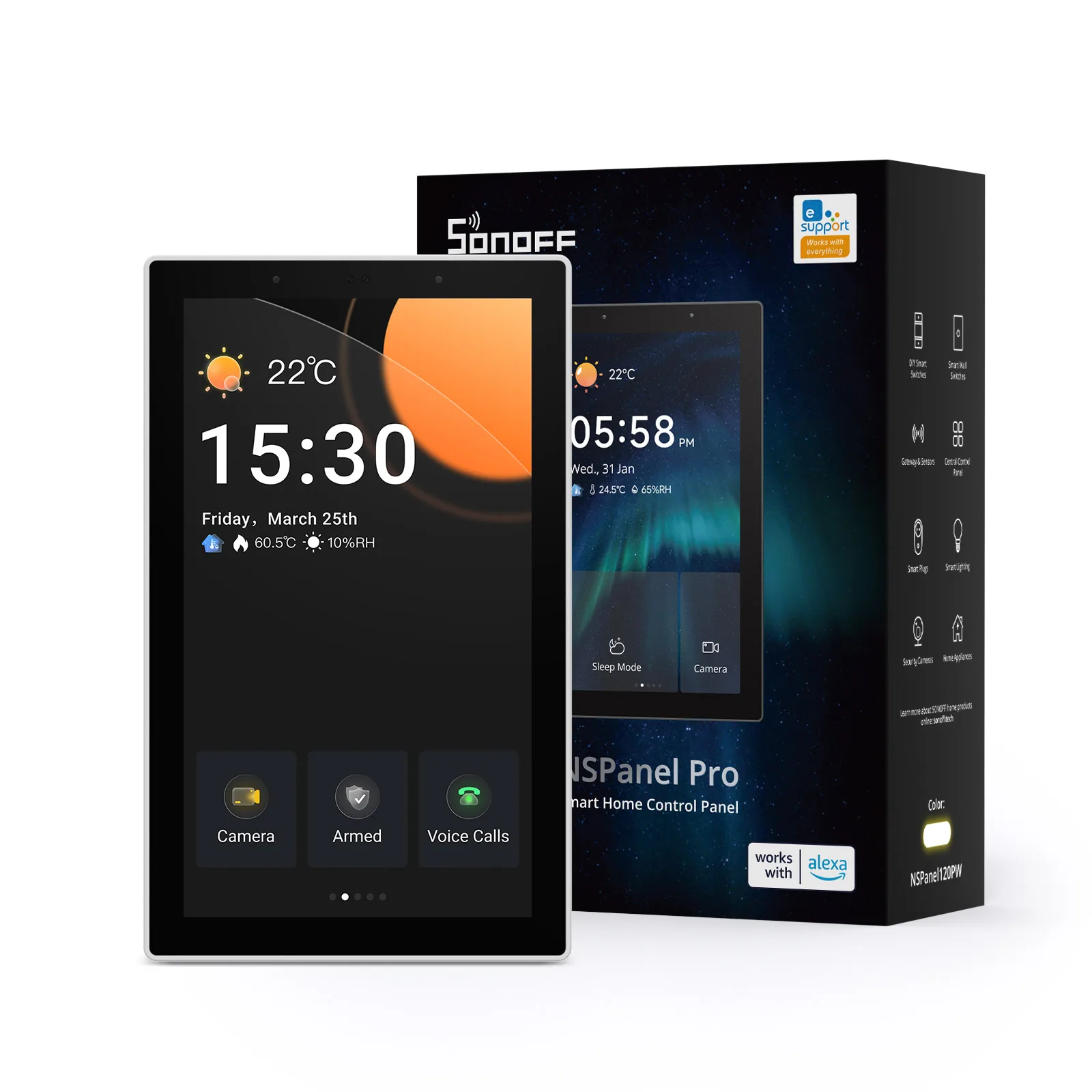

Sonoff NSPanel Pro

Sonoff NSPanel Pro

Sonoff NSPanel Pro White

Experience ultimate home automation with the Sonoff NS-Panel Pro 120. This innovative control panel features a bright 4.7-inch touchscreen display, allowing you to manage all your smart home devices in one central location. With its built-in Zigbee hub, you can easily connect and control multiple Zigbee devices, ensuring seamless integration and stable connections throughout your home.

Monitor your energy consumption in real time, helping you optimize usage and reduce costs. The NS-Panel Pro also enhances your home security with customizable alarm modes, sending instant notifications to your phone when sensors are triggered. Plus, you can view live camera feeds from your favorite spaces—like the living room or garage—right on the panel, providing peace of mind and real-time awareness of your home.

But it doesn’t stop there. The Sonoff NSPanel Pro allows you to browse the web, listen to music, and watch videos, turning it into an entertainment hub. With its sleek design available in Dim Gray and White, it seamlessly fits into any decor. Transform your home into a smarter, safer, and more connected environment with the Sonoff NS-Panel Pro 120 US!

Note: There are no physical relays on the switch—this is a smart control panel, not a relay switch.

Specifications

• Model: NSPanel120PW, NSPanel120PB

• Screen Size: 4.7 inches

• Screen Resolution: 750×1334

• Power Rating: 100-240V~50/60Hz 0.15A MAX

• CPU: Quad-core ARM Cortex-A35

• GPU: Mali G31-2EE

• Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Zigbee 3.0

• Working Humidity: 5%~90% RH, non-condensing

• Working Temperature: 0°C-40°C

• Casing Materials: PC V0 + CRS + Tempered glass panel

• Dimensions: 122.5 × 74.5 × 39.5 mm

• FCC ID: 2APN5PANELPRO120

• IC: 29127-PANELPRO120

You can use the NSPanel Pro in conjunction with the NSPanel Desk Stand White

Certificate Number: ZAF-SIT-00039xx

ICASA: TA-2025/02xx

User Manual
