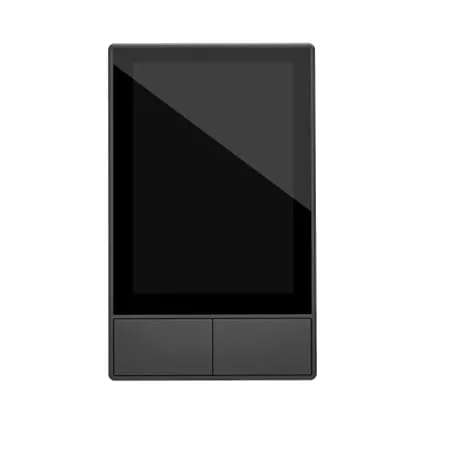

Sonoff NSPanel Smart Wall Display Switch
In stock with supplier
Sonoff NSPanel centrally integrates Control, smart temperature control and smart wall switch control, turning your home into a convenient and smart Home.
Centrally control multiple electrical appliances in your home including lights, heaters, coolers, curtains, doors, and window !
Sonoff NSPanel can control all of these devices, all you need to do is — one tap.
There are three ways you can control Sonoff NSPanel Smart Scene Wall Switch: use the dual-channel switches or touchscreen at a close distance, use the eWeLink APP to control when you are at a long distance, or voice control.
LoA and Icasa approved.
R1,259.00 R1,369.00 incl Vat
In stock with supplier
CompareDescription
Sonoff NSPanel
NSPanel centrally integrates HMI Control, smart temperature control and smart wall switch control, turning your home into a convenient and smart place.
Centrally control multiple electrical appliances in your home including lights, heaters, coolers, curtains, doors, and window !
NSPanel can control all of these devices, all you need to do is — one tap.
NSPanel Smart Scene Wall Switch is equipped with a built-in powerful thermostat and environmental sensors. You can set different indoor temperatures for different periods of time, and NSPanel will automatically trigger your heating or cooling equipment according to your set conditions in order to keep the room at a comfortable temperature.
What’s more, NSPanel has a Scenario-based control function, you can set different modes for wake up, work, entertainment, and sleep and can switch modes at any time.
There are three ways you can control Sonoff NSPanel Smart Scene Wall Switch: use the dual-channel switches or touchscreen at a close distance, use the eWeLink APP to control when you are at a long distance, or voice control.
Sonoff NSPanel is compatible with various devices of Sonoff, such as smart LED Filament Bulb, LED light strips, LED bulbs, S26 plugs, TX Series switches, MINIR2, POWR3!
Features
- All in One Control Center – Compatible with almost all Sonoff devices and the central control function of the control group
- Integrated HMI Panel – Centrally integrates HMI control, smart temperature control, and smart wall switch
- Built-in Thermostat – Automatically trigger heating or cooling equipment according your timings and settings
- Multiple Control Methods – Use the dual-channel switches, touchscreen and eWeLink App
- Voice Control Support– Alexa, Alice, Google Assistant, and even Siri Shortcuts, you can control your home appliances with simple voice control
- Real-time updates – With built-in sensors and WiFi connection, NSPanel smart scene wall switch can real-time update the weather, indoor temperature, outdoor temperature, time, and date.
LoA and Icasa approved.
Specifications
- Input – 100-240V~ 50/60Hz 4A Max
- Output – 100-240V~ 50/60Hz 2A/Gang 4A/Total
- LED Load – 150W/110V/Gang, 300W/110V/Total, 300W/220V/Gang, 600W/220V/Total
- Wi-Fi – IEEE 802.11 b/g/n 2.4GHz
- Bluetooth Standard – 4.2 BLE
- TFT Screen Size – 3.5″ (Capacitive Touch Panel)
- Screen Resolution – 480*320px
- APP Operating Systems – Android & iOS
- Shell Materials – PC V0+CRS+Toughened Glass
- Dimensions – NSPanel-EU: 86x86x41.7mm, NSPanel
- Certifications – NSPanel-EU: CE/CQC/SRRC/RoHS
| Weight | 0.3 kg |
|---|---|
| Dimensions | 12 × 7 × 4 cm |
| Brand | Sonoff |
| EAN | 6920075776409 |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Plugs and Switches
Sonoff M5 Smart Light Switch 2CH
In stock with supplier
Description
Sonoff SwitchMan M5 is a mechanical smart switch that is available in 1/2/3 channel, supporting local button, App and voice control. Through the eWeLink APP, you can manage devices at any time.
Want to quickly find the switch button by the LED indicator? Or prefer to sleep well without the disturbance of lights? The LED indicator on the button can be adjusted to various brightness to meet your need.
M5 supports voice control by working with Google Home, Alexa, Alice and Siri shortcut. When you are busy, you can turn on the light with your voice.
It has the same color as NSPanel which provides a consistent decoration to match your home style.
*Please note that light switches do not have built-in dimming or RF functionality *
*Works with R5 Remote
*Requires a qualified electrician to install.
**Switches Require a Neutral Wire and 2.4Ghz WiFi and Internet**
Features
- Physical buttons – High-precision physical button to operate. Anyone can easily use it.
- Safe Disassembly – Separate the high and low voltage and disassemble the switch safely.
- APP control – Manage devices at any time, don’t worry about forgetting to turn off the electrical appliances.
- Voice control – Supports voice control by working with Alexa, Google Home, Alice and Siri shortcut.
- Safety Certification – CE and UKCA certified. Safe performance is guaranteed.
- ”eWeLink-Remote” Control – M5 is a smart switch with the gateway function of “eWeLink-Remote“. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or scene remote controller R5.
Icasa approved.
Specifications
- Gang: 2 Gang
- Type: 120
- Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
- Casing Material: PC V0
- Working Temperature: -10°C-40°C
- Voltage: 100-240V AC 50/60Hz
- Output: 100-240V AC 50/60Hz
- MCU: ESP32
- M5-2C Current output: 10A(5A/Gang)
- M5-2C Max. power: 2200W(1100/Gang)
SKU: M5S2C -
Plugs and Switches
Sonoff Mini Zigbee
In stock with supplier
Sonoff Zigbee Mini is a ZigBee-enabled two-way smart switch requires the SONOFF ZBBridge to work.
It is also compatible with different hubs, including Amazon Hub, Samsung SmartThings Hub and Philips Hue Hub.The ZigBee3.0 protocol allows ZigBee MINI and ZigBee bridge to be paired quickly and easily. ZigBee MINI is safer to use in your home due to the fire-proof and flame-retardant shell.
Additionally, AES-128 encryption ensures the safety is extended to data privacy on your devices. It can be used as a Zigbee router to help transmit the ZigBee signal to ensure a stable connection when multiple Zigbee devices are used in your home.
If you are keen on two-way control, you can connect a Single Pole Double Throw switch as the external connection to expand the control way.*Note: Requires a wifi-to-zigbee hub to work * Please purchase the Sonoff Zigbee Bridge
Icasa approved.
SKU: ZBMINI -
Plugs and Switches
Sonoff M5 Smart Light Switch 1CH
In stock with supplier
Sonoff SwitchMan M5 is a mechanical smart switch that is available in 1/2/3 channel, supporting local button, App and voice control. Through the eWeLink APP, you can manage devices at any time.
Want to quickly find the switch button by the LED indicator? Or prefer to sleep well without the disturbance of lights? The LED indicator on the button can be adjusted to various brightness to meet your need.
*Please note that light switches do not have built-in dimming or RF functionality *
*Works with R5 Remote
*Requires a qualified electrician to install.
**Switches Require a Neutral Wire and 2.4Ghz WiFi and Internet**
Icasa approved.
SKU: M5S1C -
Plugs and Switches
Sonoff Smart Light Switch Black 3CH WiFi and RF
In stock with supplier
Sonoff can voice control your lights. All Sonoff WiFi Light switches can be controlled remotely using your phone. Works with Amazon Alexa and Google Assistant which lets you turn on or off your lights with voice commands. Features sensitive touch buttons that are simple, stylish and modern on any wall surface. Reduce monthly electricity bills by turning lights off using scheduling for auto-off. Setting timers for devices and switches will automate your home. Simply set scenes and your home will perform the routine task, automatically saving you time and money. Turn off groups of devices with a single tap on your phone or by saying “Ok Google lights off”
Sonoff Smart WiFi Light Switch is compatible with IFTTT function, i.e. The switches can communicate with all compatible devices and services, to trigger them on or off. Easy to follow steps to access your smart home. The share control provides you a quick way to allow you and your family to control devices together. You’re not sure whether the lights where on or off after leaving home, just take your phone out and open the app to check the real time device status.
*Please note that light switches do not have built-in dimming functionality*
Requires a qualified electrician to install.
**Switches Require a Neutral Wire and 2.4Ghz WiFi and Internet**
LoA and Icasa approved.
SKU: T3US3C
