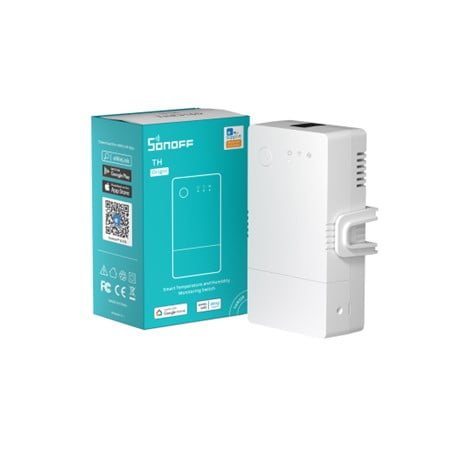

Sonoff TH16 Origin Temp and Humidity Switch

Sonoff TH16 Origin Temp and Humidity Switch (Sensor Sold Seperatley)

Sonoff TH16 Origin is a Smart Temperature and Humidity monitoring switch, however separately sold sensors accompany Sonoff TH16 Origin.

• You can pre-set thresholds or the device’s state changes will send a push notification on your phone app and thus trigger your automation.

• Sonoff TH16 Origin keeps 6 Months’ historical data accurate to the hour.

• Smart Scene’s temperature, humidity, on and off is supported as a trigger.

• Home Assistant is compatible with control and automation through the eWeLink add-on.

• Sonoff TH Origin turns your traditional thermostat into a smart one and furthermore gives you an easy way to monitor the temperature and humidity.

• Sonoff TH16 Origin has upgraded the sensor connector to RJ9, thus providing support for hot-plugging and enhancing the connection’s stability and reliability.

Specifications

• TH16 Origin: 16 Amp Peak

• Model: THR316

• THR316 Input/Output: 100-240V~ 50/60Hz 16A Max

• Dry contact: 5-30V, 1A Max

• Casing material: PC V0

• Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

• Color: White

Accessories

• The RL560 sensor extension cable can connect the Sonoff temperature and humidity sensors to extend your device’s distance.

• THS01, WTS01, and MS01 Soil Moisture Sensor can be extended to 10M.

Important Notes

• Please update THR3 devices before using the sensors. Minimum Firmware 1.2.0

• Crimp cable tips onto electrical lugs before inserting them into the device.

Please Note Sensors Sold Separately

NRCS and Icasa approved

NRCS Certificate number: RCC #2112092

Manual
