Sonoff TH20 Elite Temp and Humidity Switch

Sonoff TH20 Elite Temp and Humidity Switch

Smart Geyser Switch (For geysers less than 200 Liters)

The Sonoff TH Elite is an upgraded version of the TH16 and features an LCD screen, functioning as a smart temperature and humidity monitoring switch.

It monitors temperature and humidity in real-time. When your preset threshold is reached or the device’s on/off state changes, you receive push notifications on your phone. The TH Elite stores 6 months of temperature and humidity historical data, accurate to the hour.

Smart scenes support triggers based on temperature, humidity, on, off, and allow execution actions like On, Off, or Invert. You can also add Sonoff devices to Home Assistant for control and automation through the eWeLink add-on.

The TH Elite effectively turns your traditional thermostat into a smart device, providing an easy way to monitor temperature and humidity.

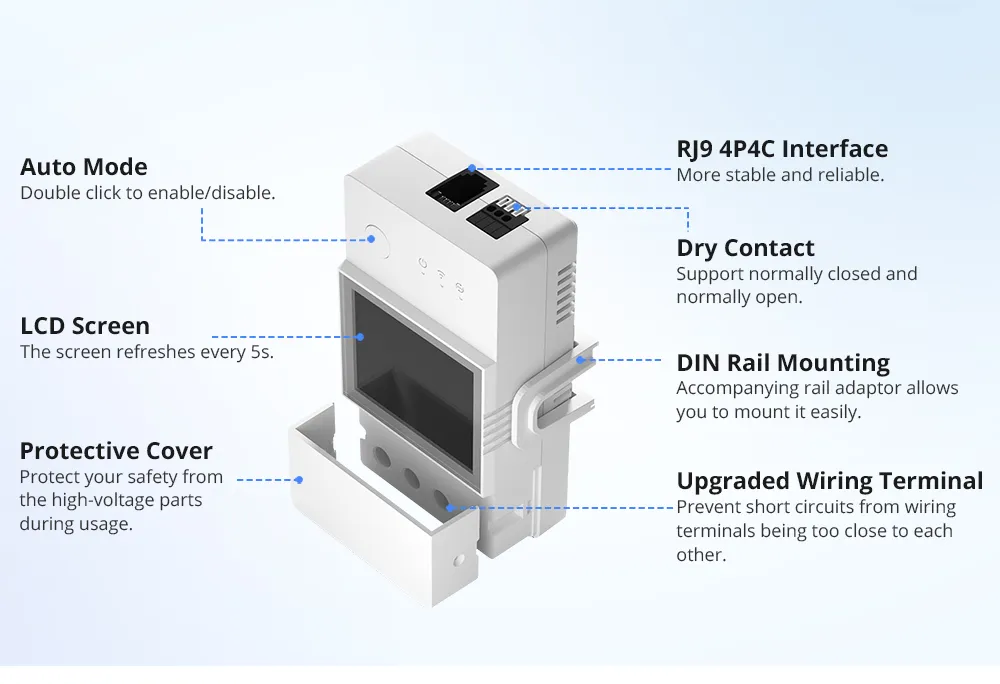

The upgraded RJ9 sensor connector supports hot-plugging and improves connection stability and reliability.

The RL560 sensor extension cable allows extending the distance for Sonoff temperature and humidity sensors. Soil Moisture Sensors THS01, WTS01, and MS01 can be extended up to 10 meters.

Features

• 16A Max & Dry Contact Output – Supports connecting up to 16A max load, dry contact output.

• LCD Screen – Real-time temperature and humidity monitoring with screen refresh every 5 seconds.

• 6-Month Temp & Humidity Historical Data – Review history by hour, day, and month. Data can be exported in .xlsx format, accurate to the hour.

• Local Automatic Control – LAN control supported. Set up to 8 automatic control programs to save electricity and maintain comfort.

• Voice Control and Query – Works with Alexa and Google Assistant. Query temperature and humidity by voice.

Important Notes

• Update THR3 Devices before using sensors (Minimum Firmware 1.2.0).

• Cable tips must be crimped onto electrical lugs before insertion into the device.

• Sensors are sold separately.

Specifications

• Model: THR316D

• TH Elite Current Rating: 16A

• Input/Output: 100–240V~ 50/60Hz, 16A Max

• Dry Contact: 5–30V, 1A Max

• Casing Material: PC V0

• Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

• Color: White

NRCS and Icasa approved

NRCS Certificate number: RCC #2112092
