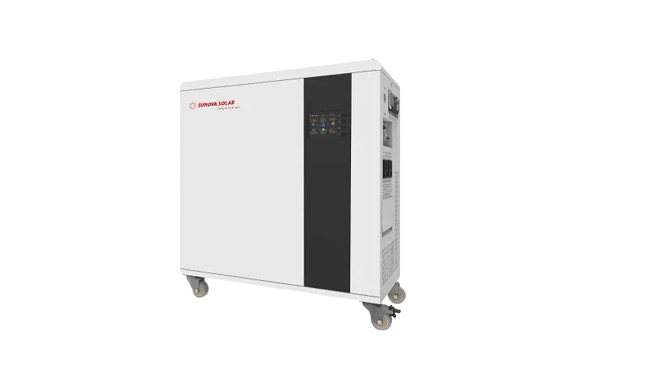

Sunova eFox 50E All-In-One Solar System

Take Control of Your Energy Security with the Sunova eFox-50E

Never let load shedding disrupt your routine again. The Sunova eFox-50E 5kW / 5.12kWh system is a highly integrated, multi-functional energy storage solution engineered to deliver dependable backup electricity for residential and commercial spaces alike. By pairing premium lithium-phosphate safety with high-performance off-grid inverter dynamics, this all-in-one unit delivers clean, stable, pure sine wave power to protect sensitive electronic devices, appliances, and lighting systems.

Advanced Pre-wired All-In-One Form Factor

Forget messy wiring configurations, mismatched components, and bulky setups. The Sunova eFox series sports a sleek, modern, unified footprint that fits cleanly into any environment. It is exceptionally easy to install and move, lowering setup costs while maximizing indoor wall or floor efficiency.

Smart Operational Modes for Ultimate Savings

The eFox-50E is built to adapt directly to your financial goals. Outfitted with multiple programmable work profiles, you can prioritize solar self-consumption, set up emergency backup parameters, or use Peak-Shaving Mode to systematically draw power during off-peak times—drastically lowering your monthly utility electricity bills.

Superior LiFePO4 Safety and Longevity

Powered by advanced Lithium Iron Phosphate (LFP) cell technology, the internal 100Ah battery module operates safely across a vast range of environments. With a calendar lifespan boasting up to 6,000 cycles, built-in thermal management, over-voltage protections, and standard certification compliance (CE, UN38.3, TUV), the eFox guarantees long-term return on investment.

Technical Specifications:

• System Type: Fully Integrated All-in-One Off-Grid Energy Storage System (ESS)

• Inverter Continuous Rating: 5000W (5kW) Pure Sine Wave

• Surge Power Performance: 10,000W (10kW) for 5 seconds (Ideal for starting inductive motor loads)

• Battery Capacity: 5.12kWh / 100Ah Nominal Storage

• Battery Chemistry: Safe, long-life Lithium Iron Phosphate (LiFePO4 / LFP)

• Nominal Battery Voltage: 51.2V DC (Operating range: 44.8V to 57.6V)

• Maximum Charge/Discharge Rate: 1C continuous (100A)

• Maximum Solar (PV) Array Input: Recommended up to 6000W

• Built-in MPPT Tracker Range: 120V to 430V DC (Maximum PV input voltage: 450V)

• AC Utility Charging Current: Adjustable up to 80A

• Output Outlets: Integrated Dual Multi-purpose AC Sockets + Dedicated Terminal Blocks

• Smart Remote Monitoring: Built-in WiFi / RS485 communication for live app-based performance tracking

• Enclosure Rating & Dimensions: IP20 Protection class; 585mm x 611mm x 230mm; Weight: 67.6kg
